MG.20.B6.02 – VLT is a registered Danfoss trademark
75
VLT
®
2000 Series
Section 1 Section 2 Section 3
Description of parameters
408 Terminal 46 output (LOG.OUTPUT 46)
Value:
Unit ready (UNIT READY) [0]
✭ Unit ready remote control (UNT RDY CRTL)) [1]
Enabled no warning (ENABLEDnoWR) [2]
Running (RUNNING) [3]
Running no warning (RUNNINGnoWR) [4]
Running in range no warning
(RNinRGEnoWR) [5]
Speed = reference no warning
(RUN@REFnoWR) [6]
Alarm (ALARM) [7]
Alarm or warning (ALARMorWARN) [8]
Current limit (CURRENT LIMIT) [9]
Out of frequency range (OUT FRQ RGE) [10]
Out of current range (OUT CURR RGE) [11]
Reversing (REVERSING) [12]
Pulse output 15 Hz - 1.5 kHz (PULSOUT 1500)[13]
Pulse output 15 Hz - 3.0 kHz (PULSOUT 3000)[14]
Pulse output 15 Hz - value in parameter 005
(PULS-PAR 005) [15]
Send/receive RS 485 (SEND/REC NEG) [18]
Receive/send RS 485 (SEND/REC POS) [19]
Function:
Using this parameter you can choose between
different output signals. The output is an open
collector output and therefore a pull-up resistor must
be connected to terminal 12 (+24 V).
Description:
For the pulse output the lowest output frequency
is 15 Hz and the highest output frequency is 5 kHz.
RS 485 send/receive control is used when the serial
port is connected to the RS 485 network via a
RS 232/RS 485 adapter.

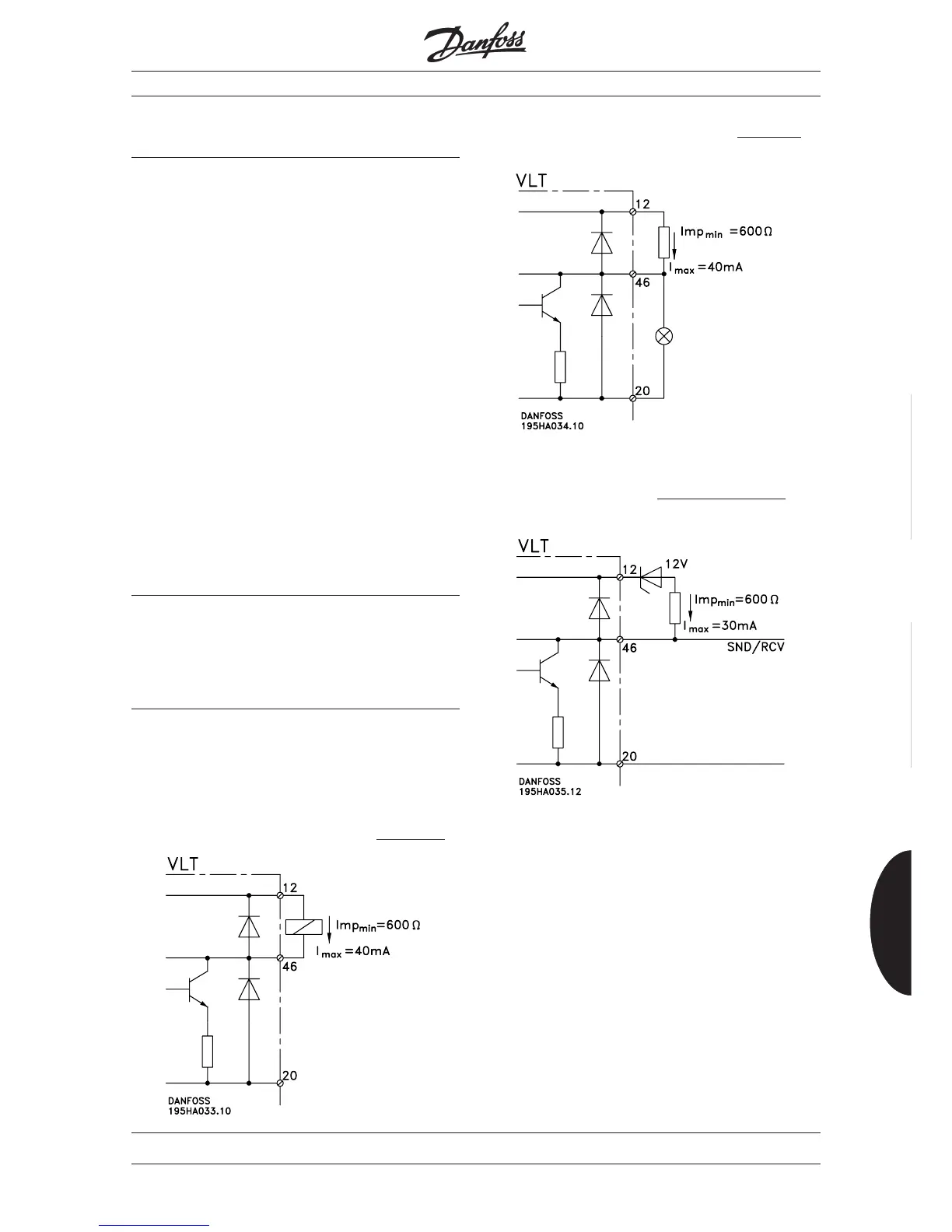

Connection example where the signal is
active high:
Connection example where the signal is
active low:
Connection example using
RS 232/485 adapter:
✭ = Factory setting. Text in ( ) = Display text. The figures in [ ] are used in bus communication.
■
