Danfoss VLT 3552

VLT
®
Series 3500
10
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis* 230
Chassis* 380 11.81 (300) 11.18 (284) 7.01 (178) 10.16 (258) 7.48 (190) 2.17 (55) 2.17 (55)
Chassis* 460
NEMA 1* 230 15.35 (390) 4.53 (115)
NEMA 1* 380 11.18 (284) 7.01 (178) 10.16 (258) 7.48 (190) 3.35 (85)
NEMA 1* 460
NEMA 12 230
NEMA 12 380 20.87 (530) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 3.35 (85)
NEMA 12 460
inches (mm)
Add-On Module
2.28
(58)
10.16
(258)
11.18
(284)
7.01
(178)
4.53
(115)
0.98
(25)
0.33
(8.5)
Ø0.57
(14.5)
W
a
b
c
0.98
(25)
0.33
(8.5)
Ø0.57
(14.5)
D
H
d
* Additional dimensions for Fan Option:
Chassis (all voltages) 2.36 (60) to H; 2.36 (60) to c
NEMA 1 (all voltages) 1.18 (30) to H; 1.18 (30) to c

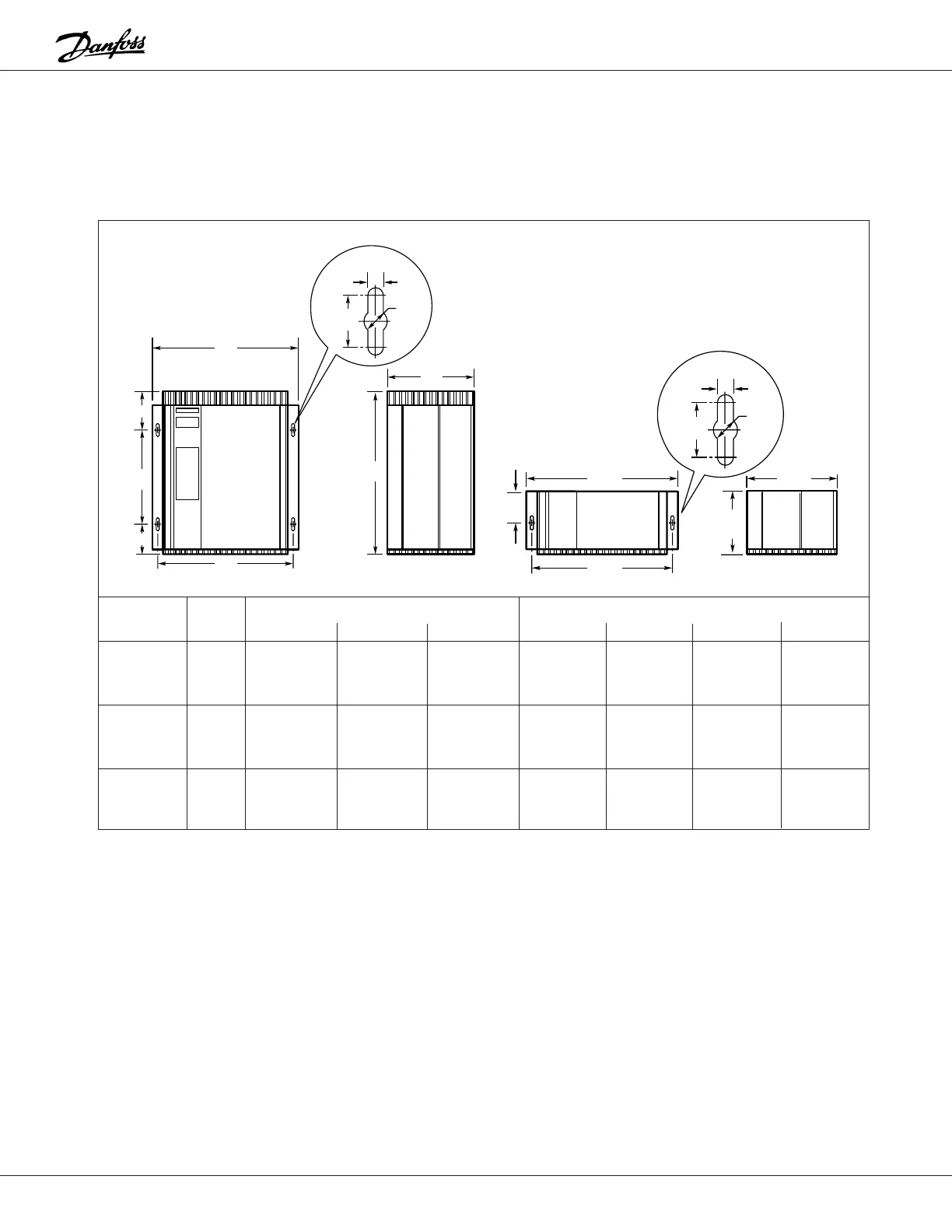

VLT 3502 Dimensions
14.17 (360) 3.35 (85)
