■ 2. Electrical Installation, power
NOTE: The terminals are detachable on VLT 5001-5006, 200-240 V, VLT 5001-5011, 380-500 V and VLT
5001-5011, 550-600 V
Connect the mains supply to the mains terminals L1, L2, L3 o f the frequency converter and to the earth
connection (fig. 5-8). Cable relief fitting is placed on the wall for Bookstyle units. Mount screened motor
cable to the motor terminals U, V, W, PE of the frequency converter. Make sure, the screen is connected
electrically to the drive.

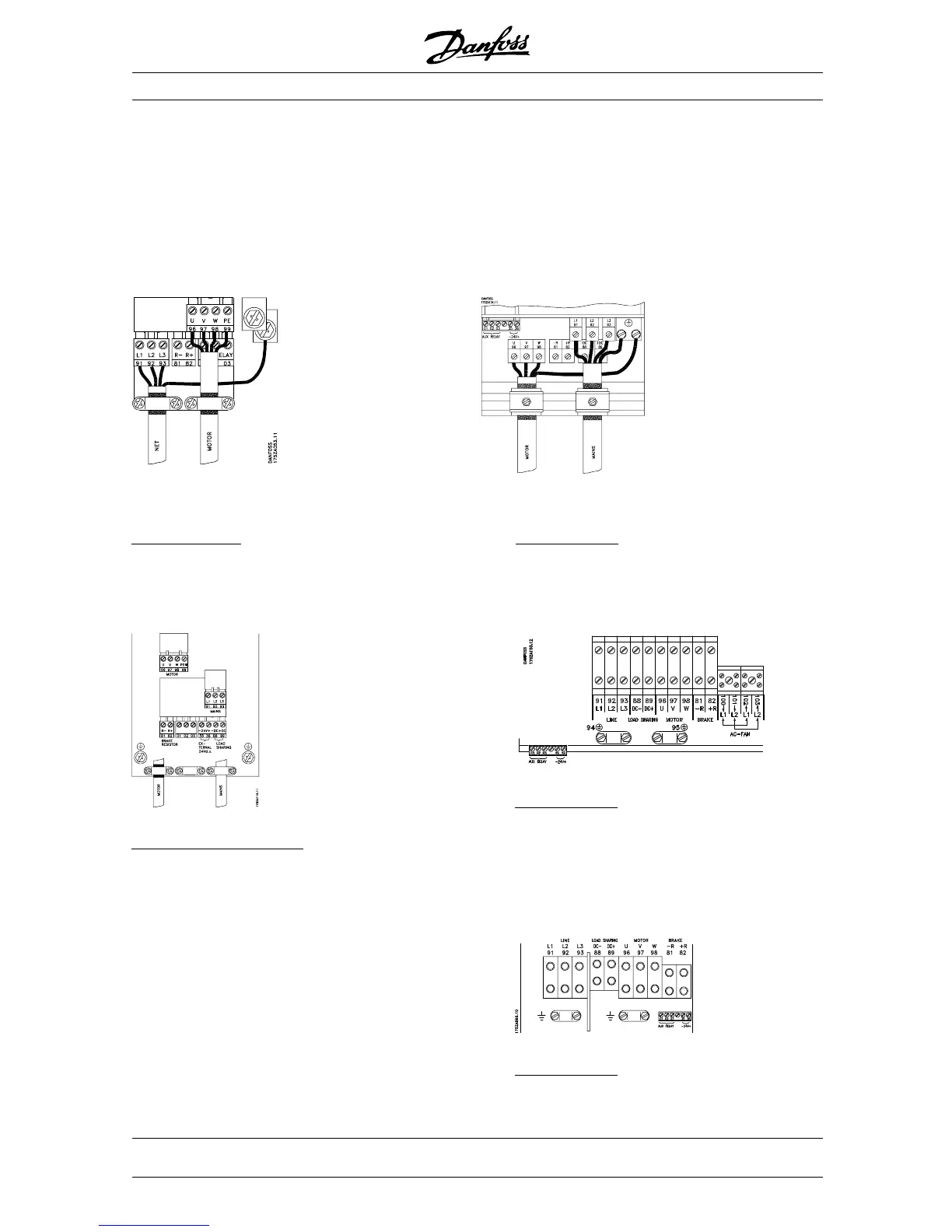

Fig. 5
B
ookstyle IP 20
5001 - 5011 380 - 500 V
5001 - 5006 200 - 240 V
Fig. 7
C
ompact IP 20
5016 - 5102 380 - 500 V
5008 - 5027 200 - 240 V
5016 - 5062 525 - 600 V
Fig. 6
C
ompact IP 20 and IP 54
5001 - 5011 380 - 500 V
5001 - 5006 200 - 240 V
5001 - 5011 525 - 600 V
Fig. 8
C
ompact IP 54
5016 - 5062 380 - 500 V
5008 - 5027 200 - 240 V
Fig. 9
C
ompact IP 54
5072 - 5102 380 - 500 V
