Danfoss VLT CANopen MCA 105 Programming Guide

e30ba681.10

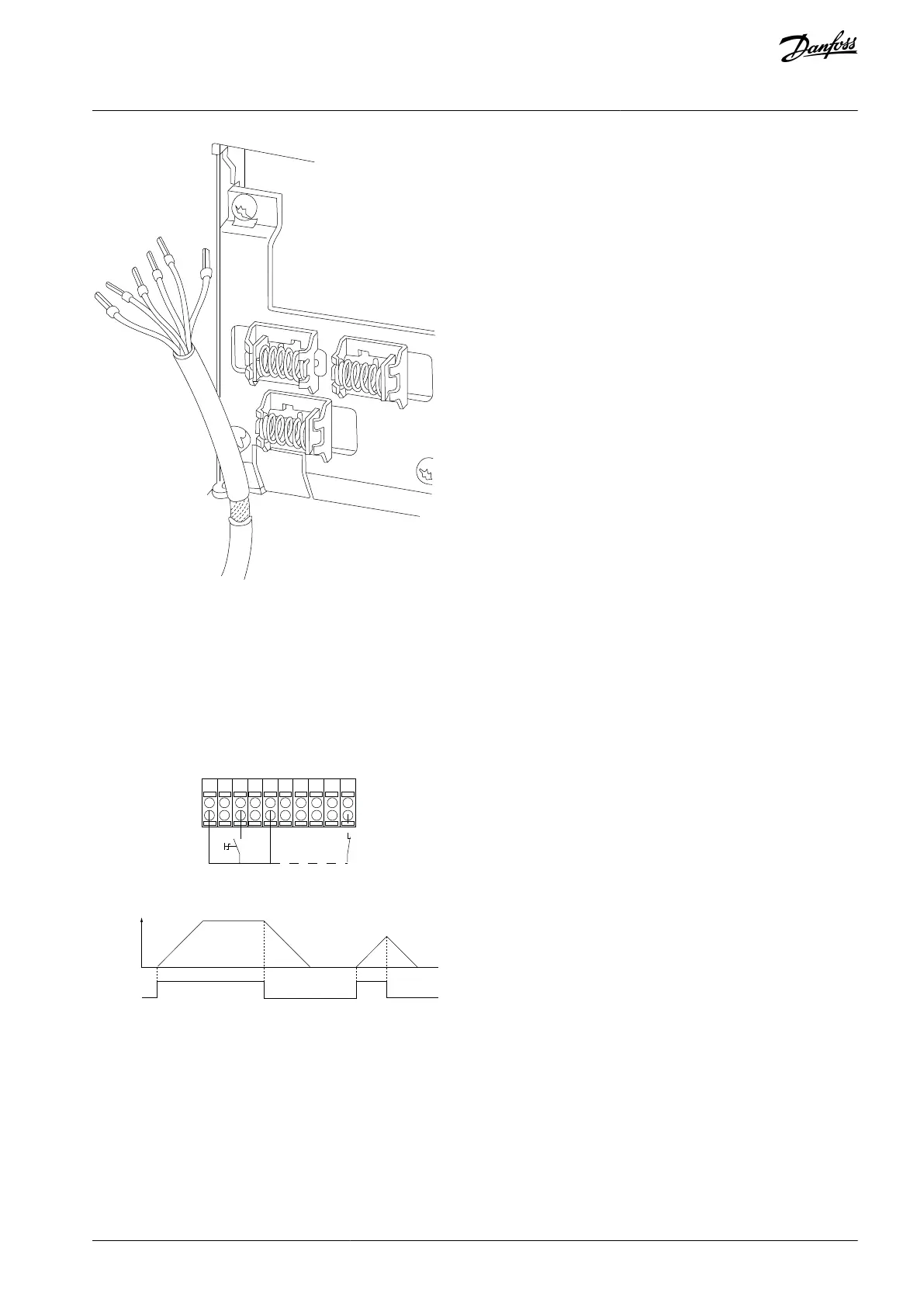

Illustration 4: Grounding of Shielded/Armored Control Cables
3.1.1 Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8] Start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [0] No operation (Default [2] Coast inverse).
Terminal 37 = Safe Torque Off.
12 13 18 37
e30ba155.12
322719 29 33 20
P 5-12 [0] P 5-10 [8]
Start/Stop
+24V
Speed
Safe Stop
Start/Stop
[18]
Illustration 5: Start/Stop
3.1.2 Pulse Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9] Latched start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [6] Stop inverse.
Terminal 37 = Safe Torque Off.
AU275636650261en-000101 / 130R0334 | 17Danfoss A/S © 2022.12
Electrical Diagrams
VLT AutomationDrive FC 301/302
Programming Guide
