Danfoss VLT CANopen MCA 105 Design Guide

FC 300 Design Guide
Application Examples

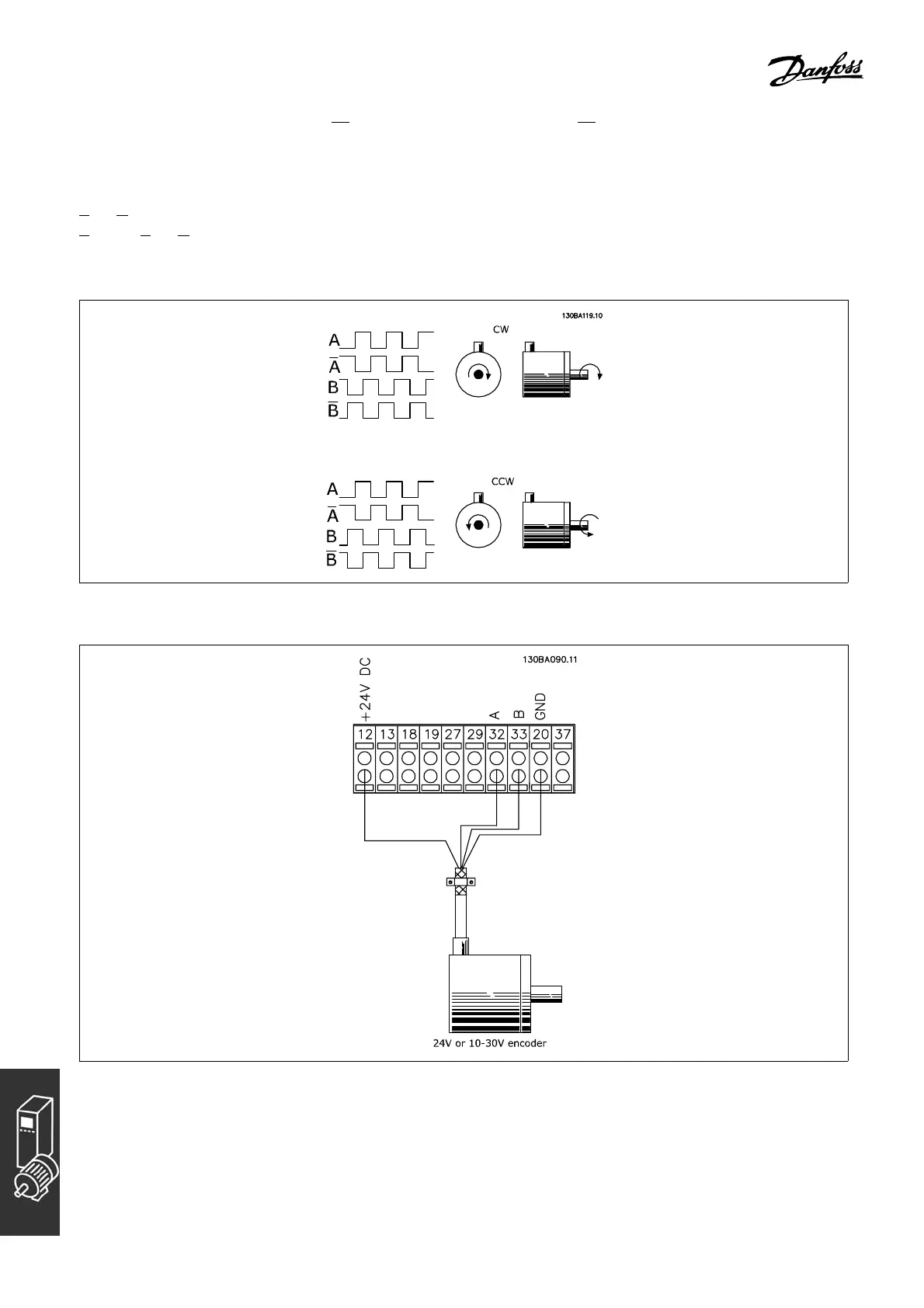

" Encoder Direct ion
The direction of encoder is determined by which order the pulses are entering the drive.
C
lockwise direction means channel A is 90 electrical degrees before channel B.
C
ounter Clockwis e direction means channel B is 90 electrical degrees before A.
The direction determined by looking into the shaft end.
Encoder Connection to FC 302 (24 V encoder version)
114
MG.33.B3.22 - VLT is a registered Danfoss trademark
