Danfoss offers a wide range of options and accessories for VLT AutomationDrive FC 30 0 Series.
" Encoder Option MCB 102
The encoder module is used for interfacing feedback from motor or process. Parameter settings in group 17-xx
Used for:
• VVC plus closed-loop
• Flux Vector Speed co ntrol
• Flux Vector Torque control
• Permanent magnet motor with SinCos feedbac k (H iperfac e
®
)
Incremental enc oder: 5 V TTL type
SinCos Encoder: Stegmann /SICK (Hiperface
®
)
Selection of parameters in par. 17-1* and par. 1-02
• Thepowertotheadjustablefrequencydrivemustbedisconnected.
• Remove the LCP, the terminal cover and the cradle from the FC 30x.

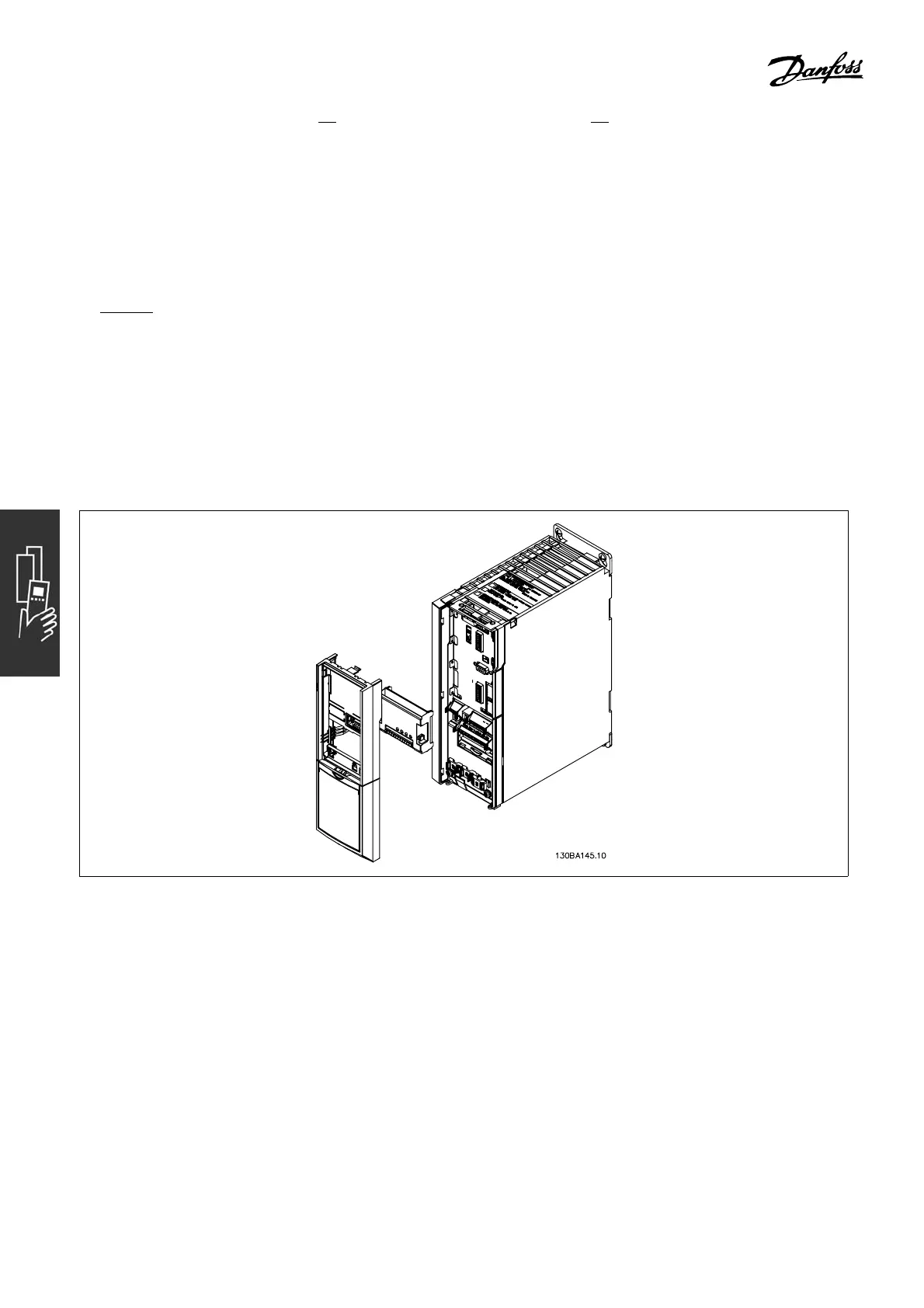

• Fit the MCB 102 option in slot B.
• Connect the control cables and fasten the cables by the clamp to chassis.
• Fit the extended cradle and terminal cover.
• Replace the LCP.
• Connect the powe r to the adjustable frequency drive.
• Select the encoder functions in par. 17-*.
