How to Select Your VLT

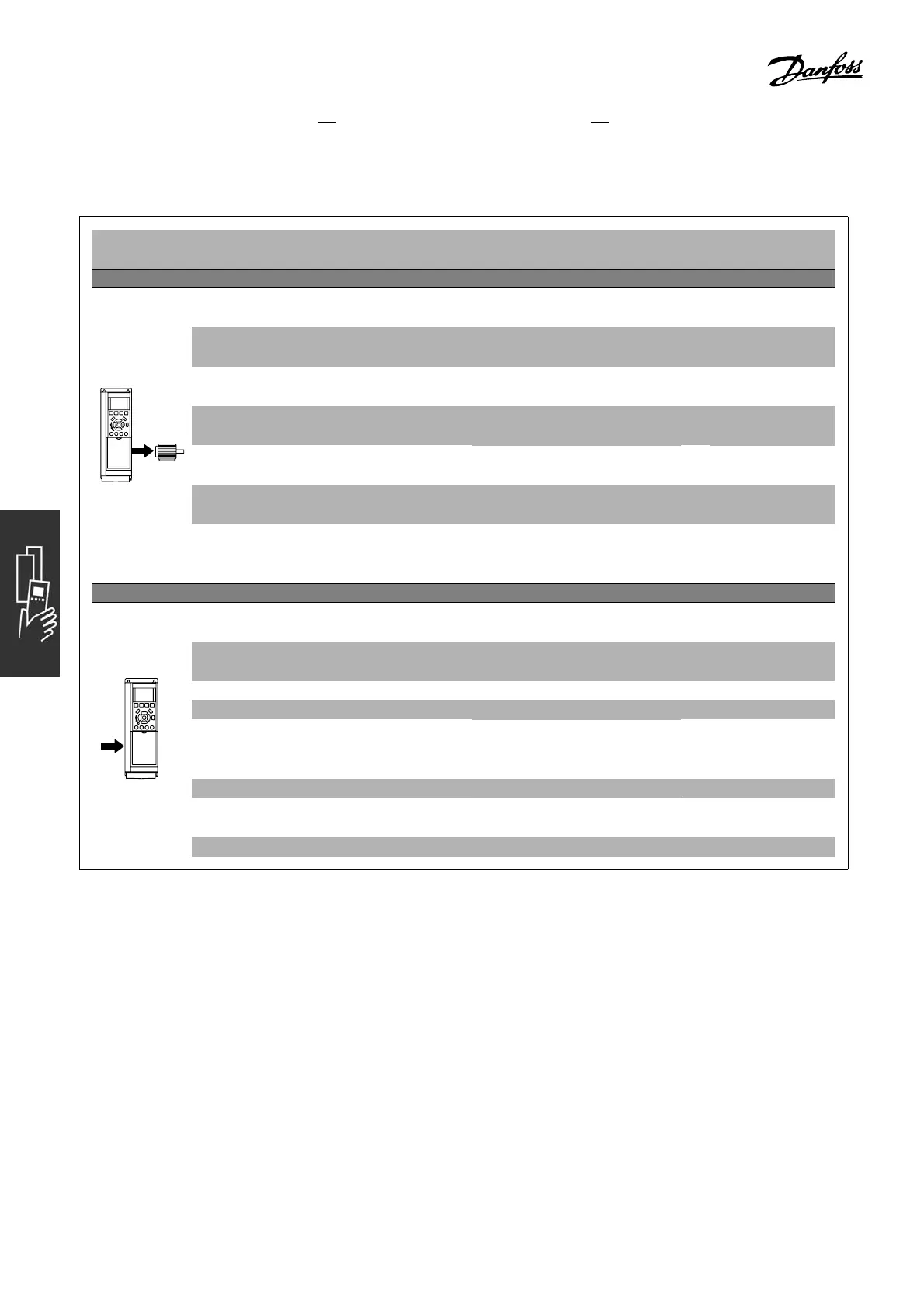

" Mains Supply 3 x 525 - 600 VAC
FC 302
Typica l Sh aft Output [HP, kW]
0.25 0.37 0.55 0.75 1.1 1.5 2.2 3 3.7 4 5.5 7.5
Output current
Continuous
(3 x 525-550 V) [A]
- - - 1.8 2.6 2.9 4.1 5.2 - 6.4 9.5 11.5
Intermittent
(3 x 525-550 V) [A]
- - - 2.9 4.2 4.6 6.6 8.3 - 10.2 15.2 18.4
Continuous
(3 x 525-600 V) [A]
- - - 1.7 2.4 2.7 3.9 4.9 - 6.1 9.0 11.0
Intermittent
(3 x 525-600 V) [A]
- - - 2.7 3.8 4.3 6.2 7.8 - 9.8 14.4 17.6
Continuous KVA (525 V AC)
[KVA]
- - - 1.7 2.5 2.8 3.9 5.0 - 6.1 9.0 11.0
Continuous KVA (575 V AC)
[KVA]
- - - 1.7 2.4 2.7 3.9 4.9 - 6.1 9.0 11.0
Max. cable size
(mains, motor, brake)
[AWG]
2
,[mm
2
]
---
24 - 10 AWG
(0.2 - 4 mm
2
)
-
24 - 10 AWG
(0.2 - 4 mm
2
)
Max. input current
Continuous
(3 x 525-600 V) [A]
- - - 1.7 2.4 2.7 4.1 5.2 - 5.8 8.6 10.4
Intermittent
(3 x 525-600 V) [A]
- - - 2.7 3.8 4.3 6.6 8.3 - 9.3 13.8 16.6
Max. pre-fuses
1
[A] - - - 10 10 10 20 20 - 20 32 32
Environment
Estimated power loss
at rated max. load [HP,
kW]
- - - 72 87 104 123 153 - 190 246 321
Enclosure IP 20
Weight,
enclosure IP20 [lb, kg]
- - - 6.5 6.5 6.5 6.5 6.5 - 6.5 6.6 6.6
Efficiency - - - 0.97 0.97 0.97 0.97 0.97 - 0.97 0.97 0.97
1. FortypeoffuseseesectionFuses.
2. American Wire Gauge.
3. Measured using 16 ft (5 m) shielded motor cables at rated load and rated fre
quency.
