FC 300 Design Guide
How to Install

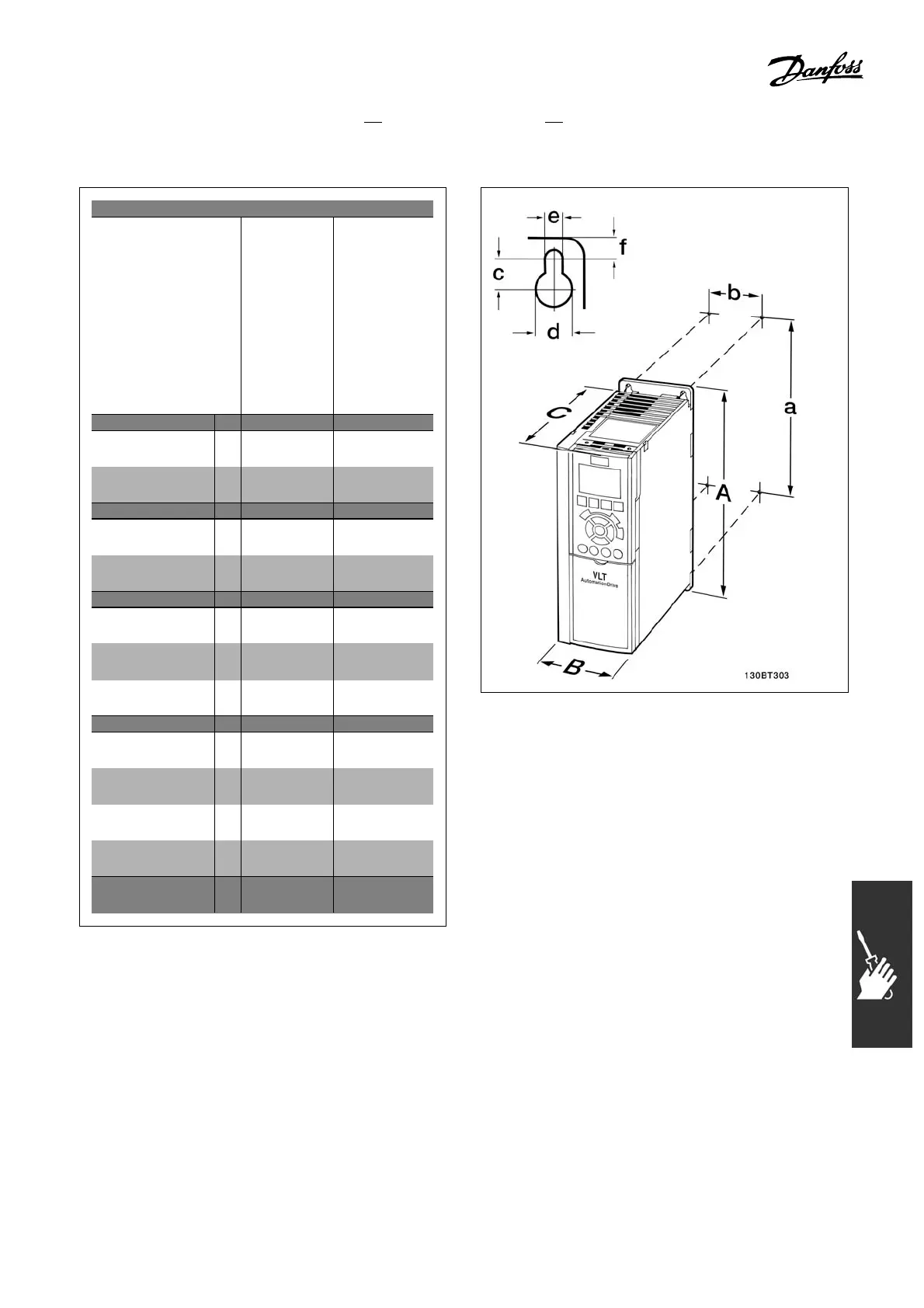

Mechanical dimensions
Frame size A2
0.34-3.0 HP
(0.25-2.2 kW)
(200-240 V)
0.5-5.5 HP
(0.37-4.0 kW)
(380-500 V)
FramesizeA3
4.0-5.0 HP
(3.0-3.7 kW)
(200-240 V)
7.5-10 HP
(5.5-7.5 kW)
(380-500 V)
1.0-10 HP
(0.75-7.5 kW)
(550-600 V)
Height
Height of back plate A
10.6 in (268
mm)
10.6 in (268
mm)
Distance between
mounting holes
a
10.1 in (257
mm)
10.1 in (257
mm)
Width
Width of back p late B
3.54 in (90
mm)
5.12 in (130
mm)
Distance between
mounting holes
b
2.76 in (70
mm)
4.33 in (110
mm)
Depth
From back plate to
front
C
8.66 in (220
mm)
8.66 in (220
mm)
With option A/B
8.66 in (220
mm)
8.66 in (220
mm)
Without options
8.07 in (205
mm)
8.07 in (205
mm)
Screw holes
c
0.315 in (8.0
mm)
0.315 in (8.0
mm)
d
ø 0.433 in (ø
11 m m)
ø 0.433 in (ø
11 mm)
e
ø 0.217 in (ø
5.5 mm)
ø 0.217 in (ø
5.5 mm)
f
0.256 in (6.5
mm)
0.256 in (6.5
mm)
Max we ight
10.2 lb (4.9
kg)
14.6 lb (6.6 kg)
FC 300 IP20 - see table for mechanical dimensions.
