3.2.3.2
Connecting to Mains and Motor

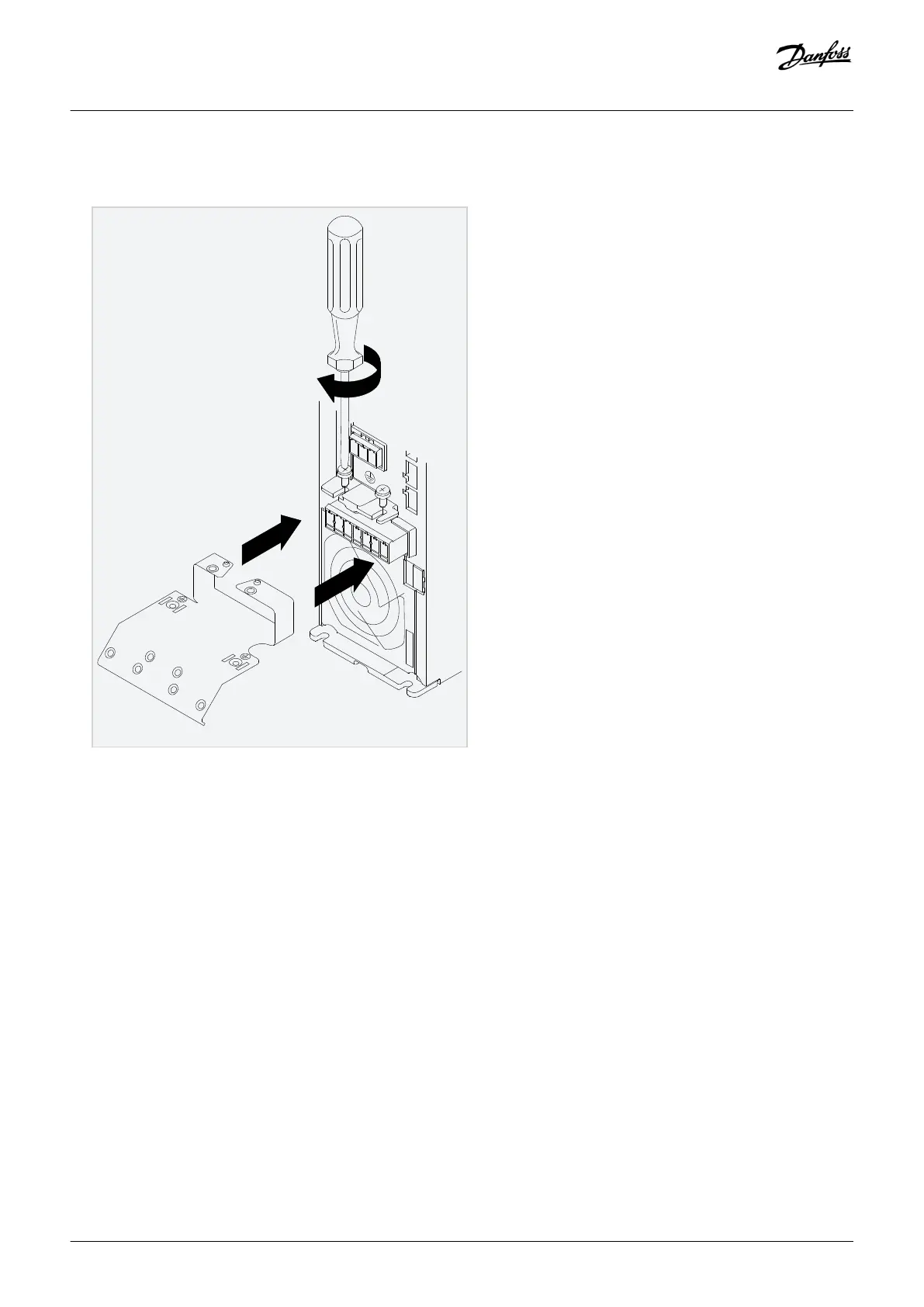

1.
Mount the 2 screws in the mounting plate, slide the plate into place, and tighten fully.
-DC+DC
BR- BR+ U
V
W
99
M A I N S
95
RELA
Y 1 RELA
Y 2
- L
C +
e30ba261.10
2.
Mount the ground cables to the ground terminal before mounting other cables.
Installation
Operating Guide
| VLT® Compressor Drive CDS 803
AQ321748767627en-000101 / 130R0570
14 | Danfoss A/S © 2019.12
13
15
