Danfoss VLT HVAC Basic Drive FC 101

Connecting to line power and motor for H9 enclosure
MOTOR
MOTOR
U V W
99
130BT302.12

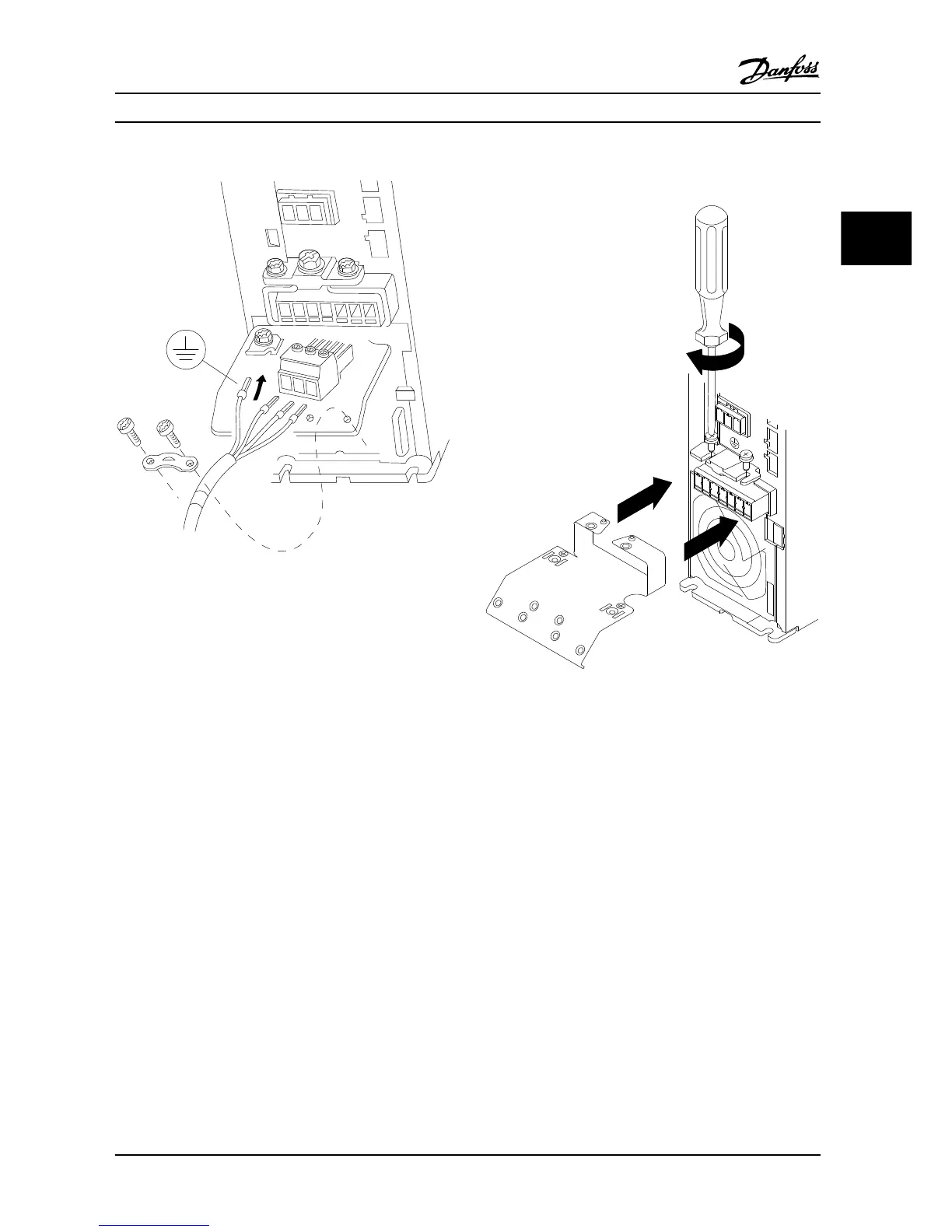

Figure 3.7 Connecting the Adjustable Frequency Drive to the
Motor, H9 Enclosure
IP20, 600 V, 2.2-7.5 kW (3-10 HP)
Complete the following steps to connect the line cables
for H9 enclosure. Use the tightening torques described in
chapter 3.2.1 Electrical Installation in General.
1. Slide the mounting plate into place and tighten
the two screws, as shown in Figure 3.8.
-DC+DC
BR- BR+ U V W
99
M A I N S
95
RELAY 1 RELAY 2
- LC +
130BA261.10
Figure 3.8 Mounting the Mounting Plate
2.
Mount the ground cable, as shown in Figure 3.9.
Installation Quick Guide
MG18A622 Danfoss A/S © 08/2014 All rights reserved. 13
3 3
