PAGE 8
INSTALLATION

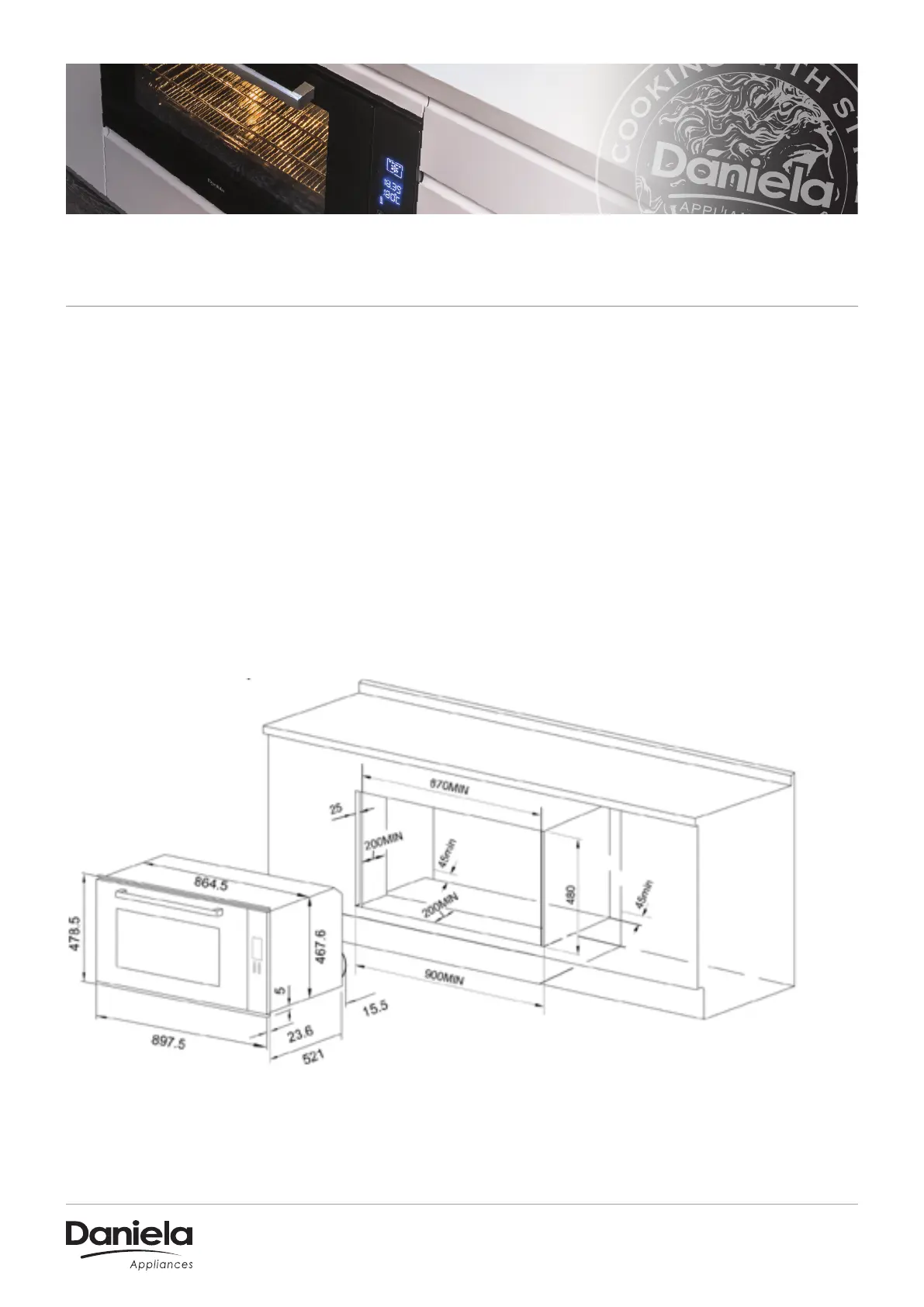

In order to ensure that the built-in appliance functions properly, the cabinet containing it must
be appropriate. The figure below gives the dimensions of the cut-out for installation under the
counter.
In order to ensure adequate ventilation, the back panel of the cabinet unit must be removed.
The oven must have a 40mm clearance between the oven and the rear timber panel.
The panels of the adjacent cabinets must be made of heat-resistant material. In particular,
cabinets with a veneer exterior must be assembled with glues which can withstand temperatures
of up to 100ºC.
In compliance with current safety standards, contact with the electrical parts of the oven must not
be possible once it has been installed.
The oven must be secured by 4 screws to the cabinet.
