Installation
This unit is designed to be mounted outdoor, ush to the wall. No other installation method
isn’t recommended.
Never perform installation, maintenance or service, without disconnecting the AC power
supply.
Any installation should allow good air ow inside the enclosure. The unit has cold
temperature supply in the lower part and return air in the upper part of the unit as shown
on page 8. Please consider how to achieve the best possible air ow when selecting
appropriate placement.
A gaskit is included with the air conditioner unit. Additionally, we recommend the
installation of polymer sealing on the exterior to prevent water instrusion

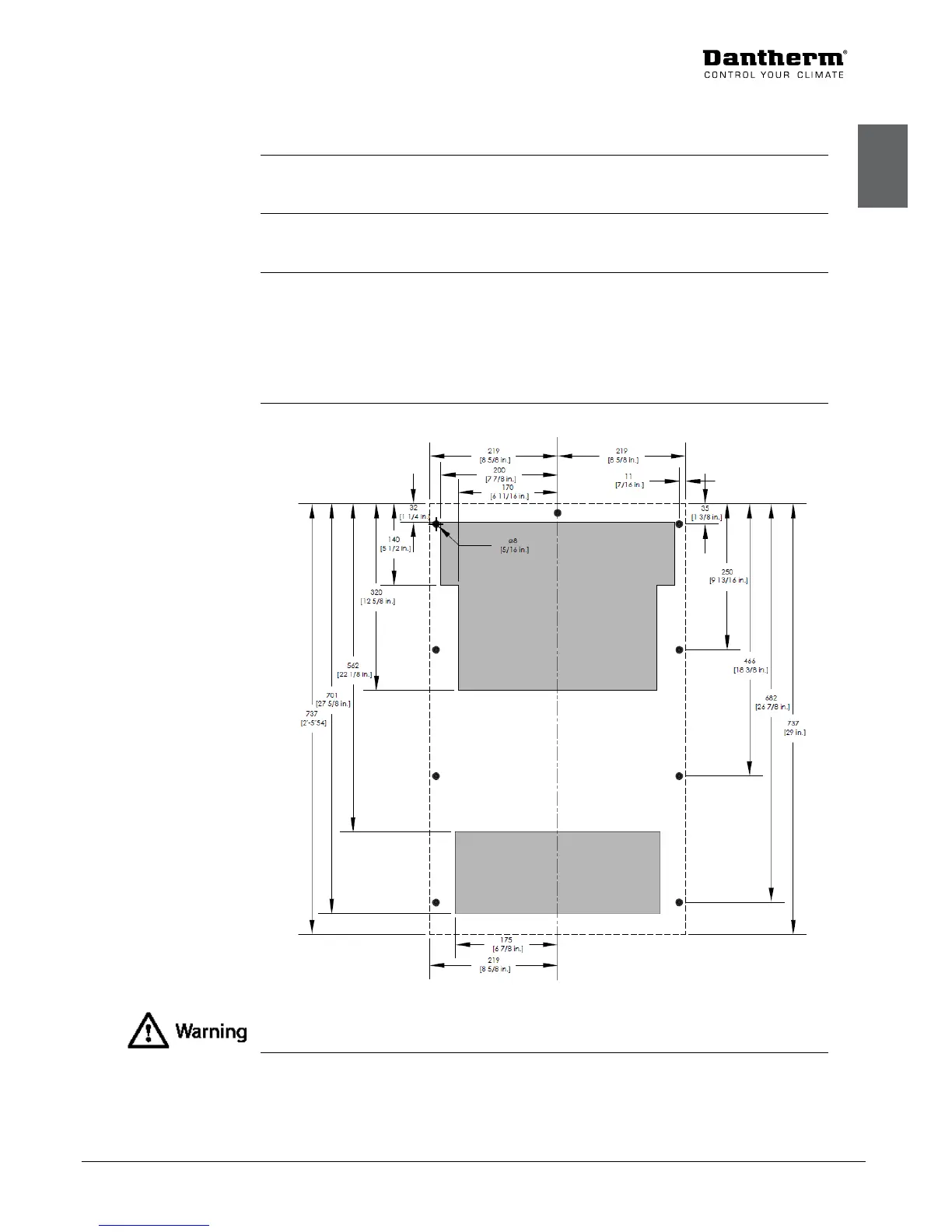

Please mark the cutout area and holes, according the below dimensions:
Fig. 9
Cut the two openings and drill the 9 pcs. with appropriate tools ( 8mm / 0,315”) to ensurr that
no dust and debrees will accumulate into the enclosure.
