Electrical schematics

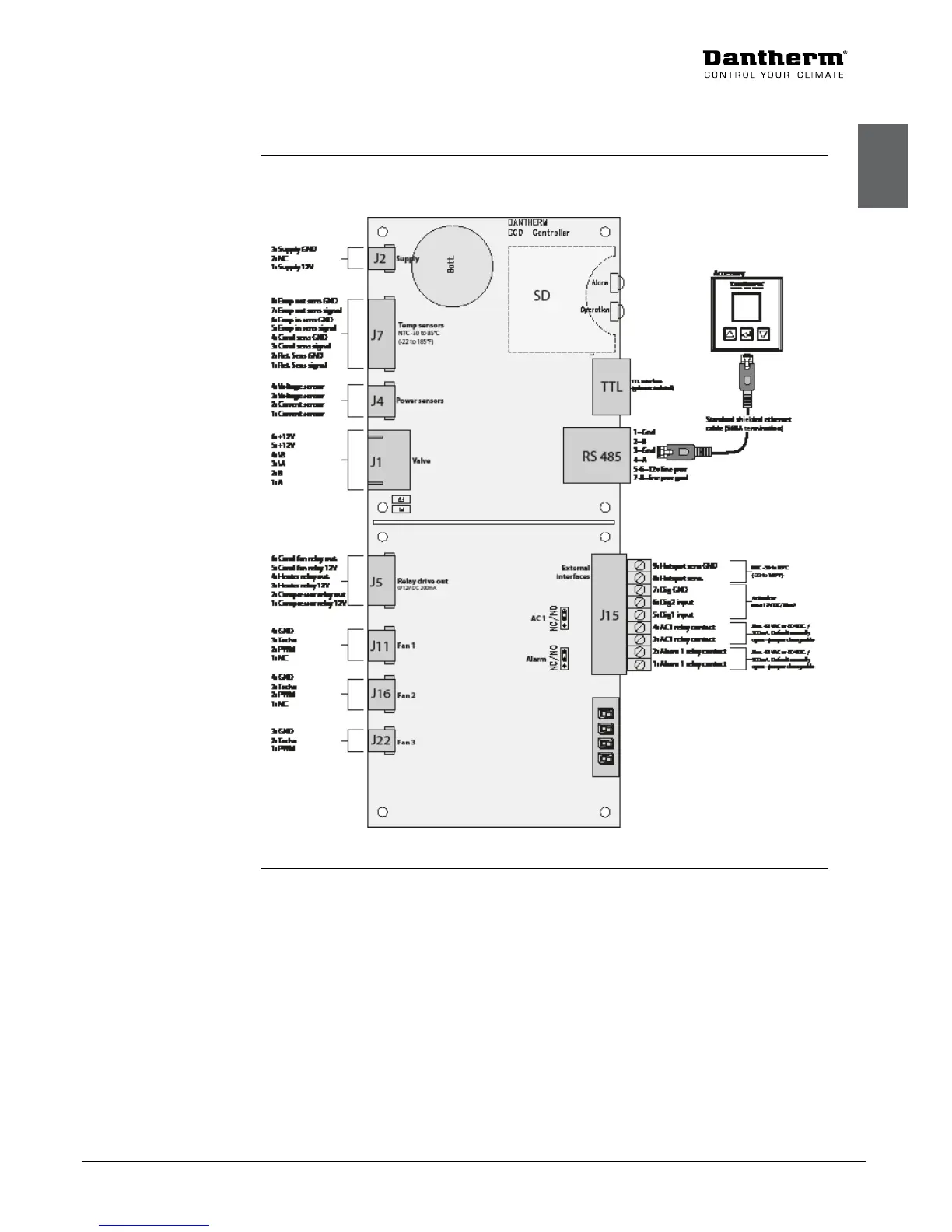

This illustration shows the complete controller connections, internal as well as external:
Fig. 14
Overall controller
DC4000/6000 OIM 12_2015
