25
975672 • Version 3.3 • 28.10.2010
Product and functional description
Illustration
Illustration of the functional principle of the CDP 75/125/165:
Functionality of
the dehumidifier
The CDP 75, 125 and 165 are working in accordance with the condensation principle.
The humid air is drawn into the unit by a fan.
In the evaporator the air is cooled and when its temperature has fallen to below the dew
point, the water vapour condenses into droplets which are led to a drain.
The dry cold air is then passed through the condenser where it is reheated.
As a result of the released evaporator heat and the working energy of the compressor
being turned into heat energy, more heat is returned to the air than was previously ex-
tracted. This extra heat corresponds to an approximate increase in temperature of 5°C.
The repeated circulation of air through the unit reduces the relative humidity, giving very
rapid but gentle drying.
Continued overleaf

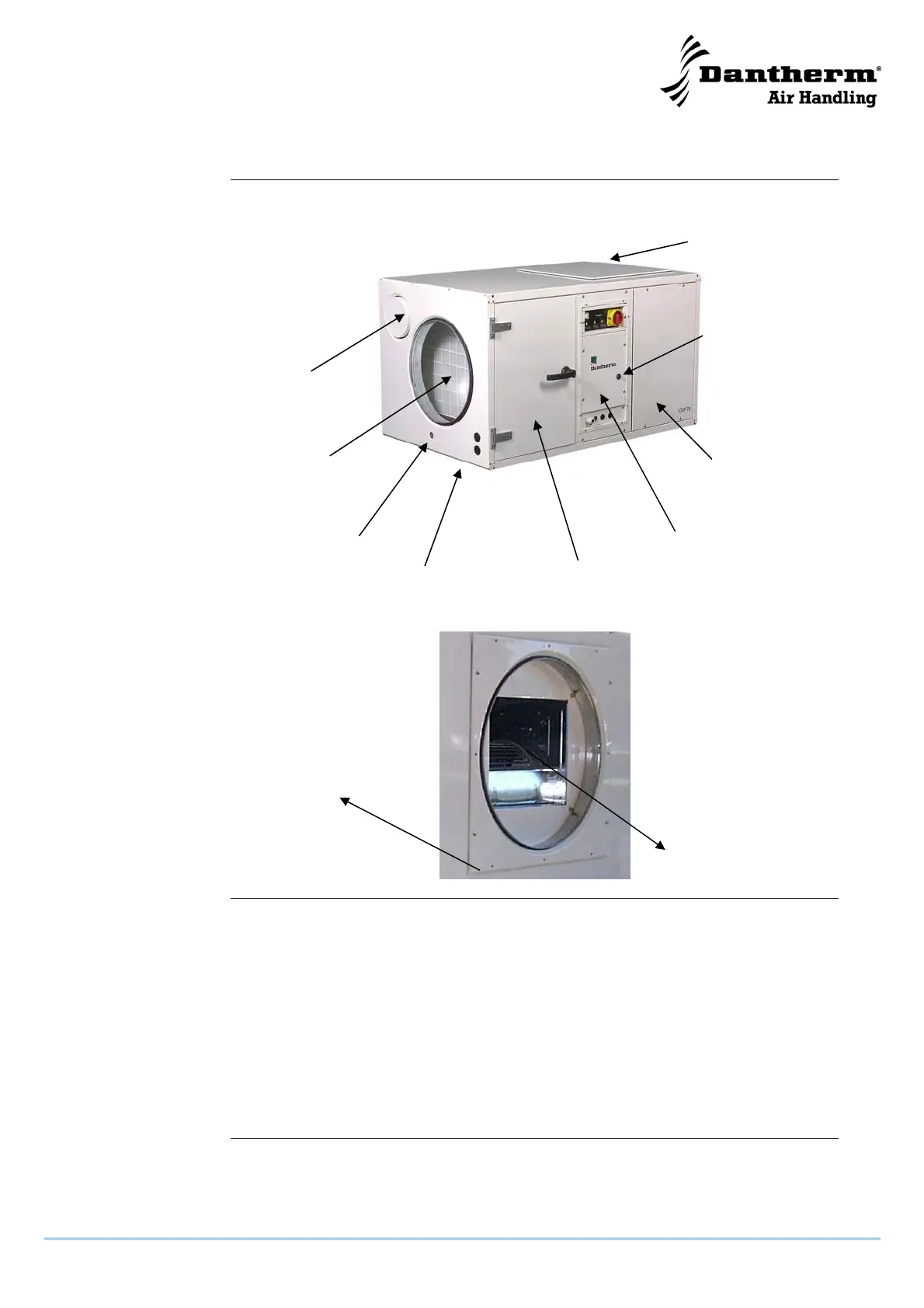

Cover panel
with fan
Air outlet
Top cover panel
Fresh air inlet
Air inlet
Condensate outlet
Connection of water-
cooled condenser
Inspection door
Control panel sec-
tion
Front cover
panel
Reset of HP and
thermal relay
