Dantherm CDP 50 - Electrical Heating Coil Installation; Heating Coil Introduction; Electrical Heating Coil Part Numbers; Heating Coil Overview

32
EN
Electrical heating coil for CDP dehumidier
Introduction
This section gives all nescessary information on how to install and use the electrical heating coil
for Dantherm CDP Dehumidiers.
Part numbers
Electrical heating coil for CDP/CDP40T: 094336
Electrical heating coil for CDP/CDP 50T: 094337
Electrical heating coil for CDP/CDP 70T: 094338
Overview
The heating surface is an accessory for the CDP and CDP-T ranges and supply additional heat to
the dehumidied air from the dehumidier.
Tools needed

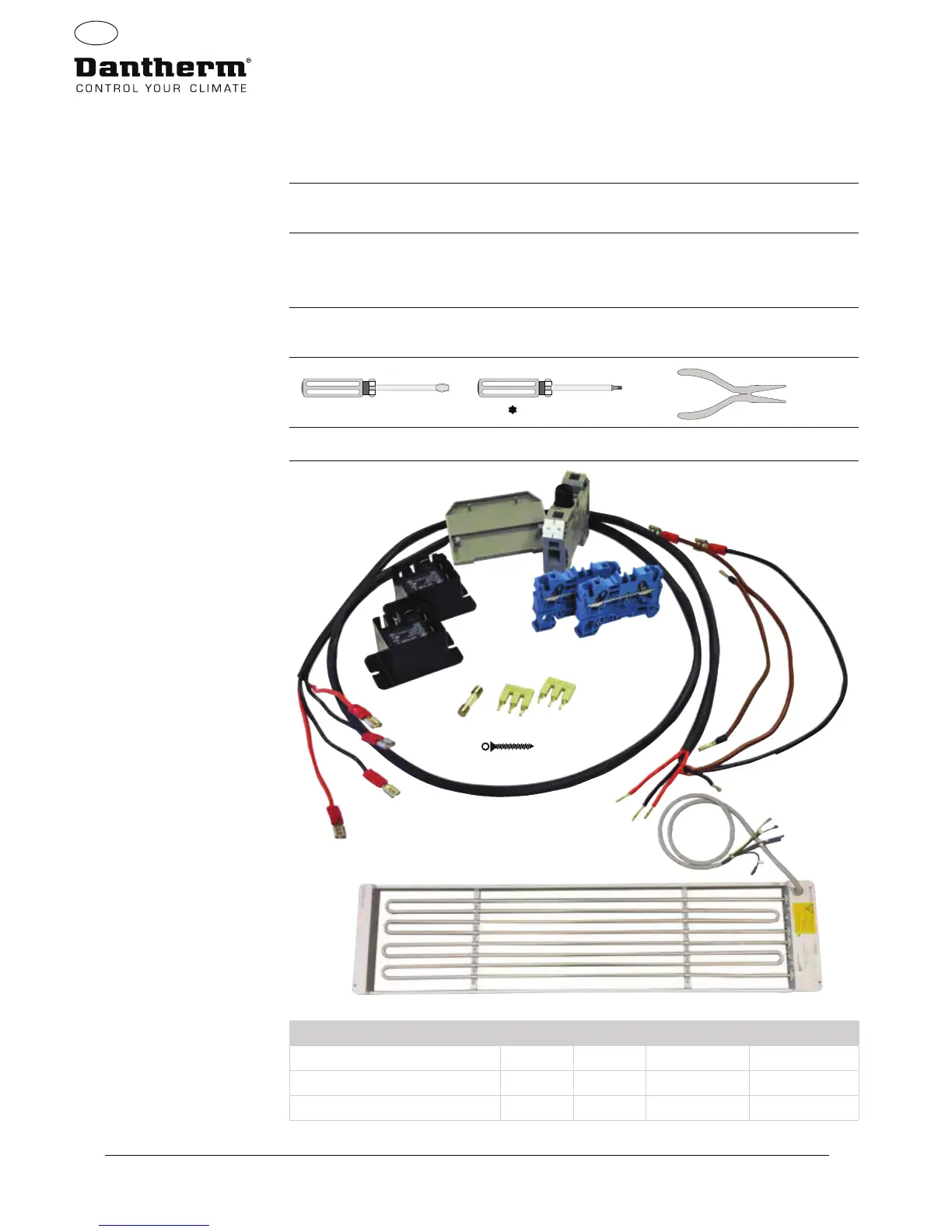

Content Shown below are the components included in the electical heating coil kit.
Flat TX20
Wires
Relays
Fuse
Bridges
Termnal rail blocks
2x TX20
Technical data
Power Current Total max. load Fuse
Electrical heater for CDP/CDP40T 2 kW 8,70 A 16,20 A 10A 5x20mm
Electrical heater for CDP/CDP 50T 3,5 kW 15,22 A 22,80 A 10A 5x20mm
Electrical heater for CDP/CDP 70T 5 kW 21,80 A 29,30 A 10A 5x20mm
Electrical heating coil
