Electrical heating coil for CDP dehumidier
Installation procedure

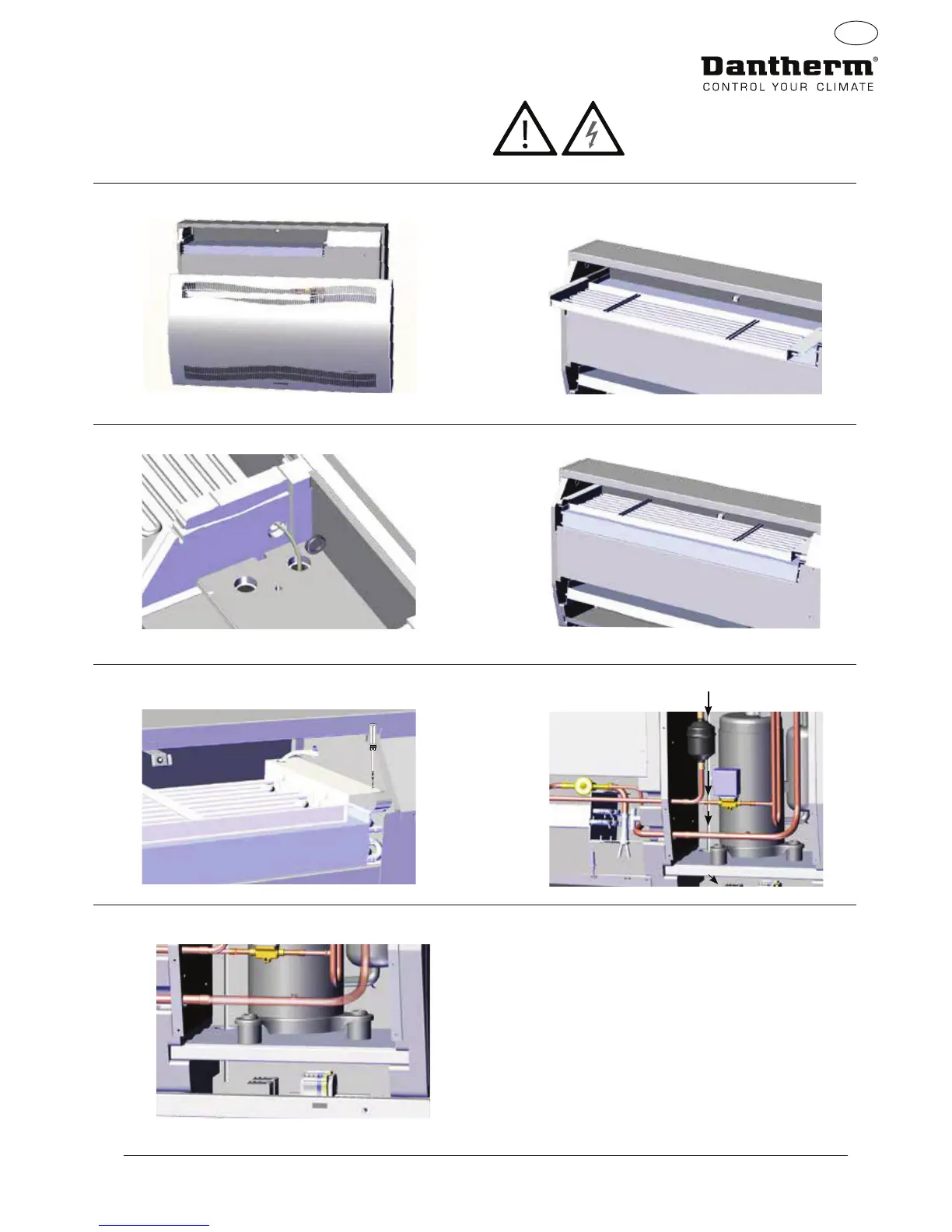

1. Remove front cover 2. Slide heating coil halfway in.1/2
3. Remove rubber plug and pull wire to compressor compartment. 4 . Slide heating coil all the way in place. 2/2
5. Secure heating coil with two screws left and right. 6. Pull wire through compressor compartment.
7. Gain access to terminal rail by removing rubber plug. 8. Connect wires to terminal rail and circuit board
according to diagram on page 328
