Display
Display with LEDs
and push buttons
The inspection side of the unit has a display panel with LEDs and push buttons.
LEDs
The LEDs in the display panel indicate various operation modes.
An overview of the meaning of the LEDs is given below.
Illustration

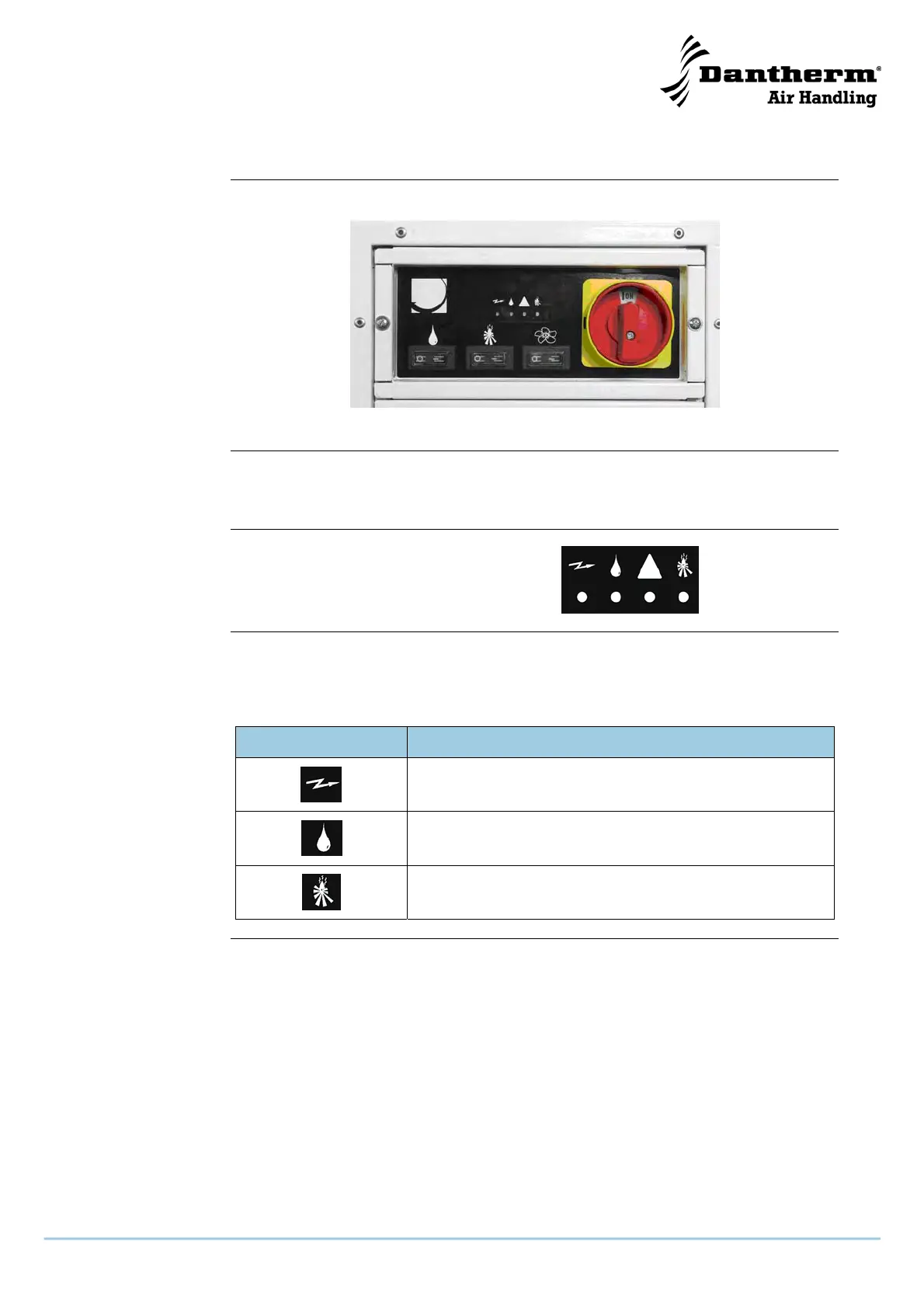

The illustration shows the LEDs:
Meaning of the
LEDs
The table gives an overview of the meaning of the LEDs:
If the unit is switched off and restarted by connecting and disconnecting power, the
LEDs will light up green in turn, before the operation mode is indicated on the display.
LEDs Description
Constantly green when power is connected to the unit
Constantly green when the compressor is running and the
unit is in dehumidification mode
If the unit is supplied with a water heating coil, this LED will
light up in green, when heat is connected
Continued overleaf
