Danube DD8 - Gas Dryers

©
I
511472 (EN)
10

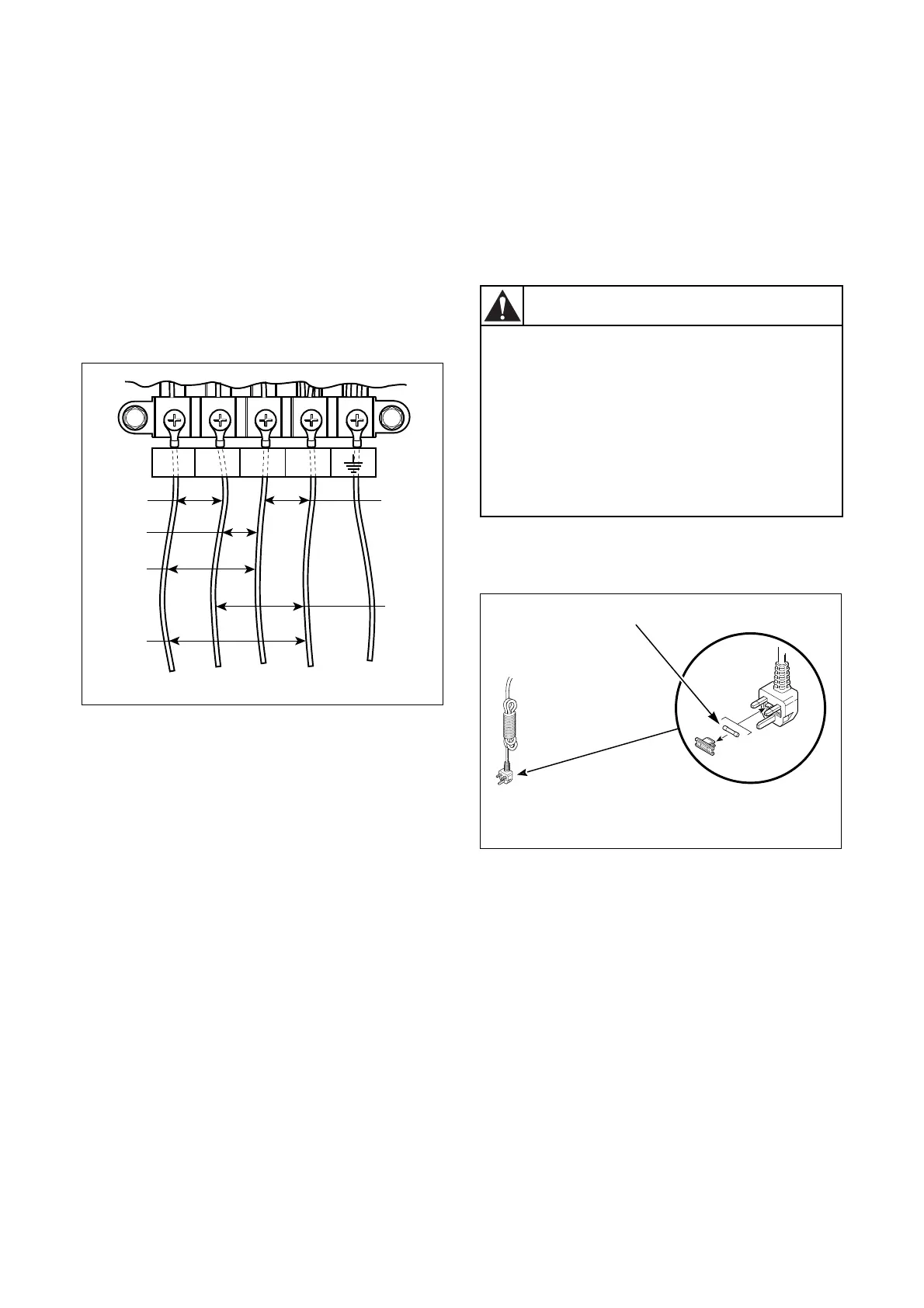

To attach customer-supplied three-phase power cord
(400 Volt WYE):
1. Remove electrical access panel on rear of
machine.
2. Attach power cord wires as shown in Figure 7.
3. Attach strain relief, supplied with machine, to
power cord in accordance with all local codes
and ordinances.
4. Reinstall access panel.
Figure 7
Grounding and Wiring Instructions
The dryer must be connected to an earthed metal,
permanent wiring system; or an equipment-earthing
conductor must be run with the circuit conductors and
connected to the equipment-earthing terminal or lead
on the dryer.
NOTE: Electrical receptacle must be located so
that it is easily accessible with machine in place. If
machine is hard wired, an intermediate shut-off
box with a 3 mm gap is required [335-1 (22.2)].
Gas Dryers
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
(230 Volt, 50 Hertz, 2 Wire Plus Earth, 10 Amp
Installation)
The dryer is designed to be operated on a two-wire
plus earth, 230 Volt, 50 Hertz, single-phase supply
circuit fused at amperage found on serial plate.
Figure 8
NOTE: Electrical receptacle must be located so
that it is easily accessible with machine in place.
DRY1931N
L 1 L 2 L 3 N
400 Volt
400 Volt
400 Volt
230 Volt
230 Volt
230 Volt
D210I
1 13 Amp Fuse
To reduce the risk of fire, electric shock,
severe personal injury or death, the
electrical service to a gas dryer must
abide with local electrical codes. The gas
service to a gas dryer must conform with
the local codes and ordinances, or in the
absence of local codes and ordinances,
with the latest edition of the National Fuel
Gas Code ANSI Z223.1.
W238
WARNING
1
