I
511472 (EN)
14
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.

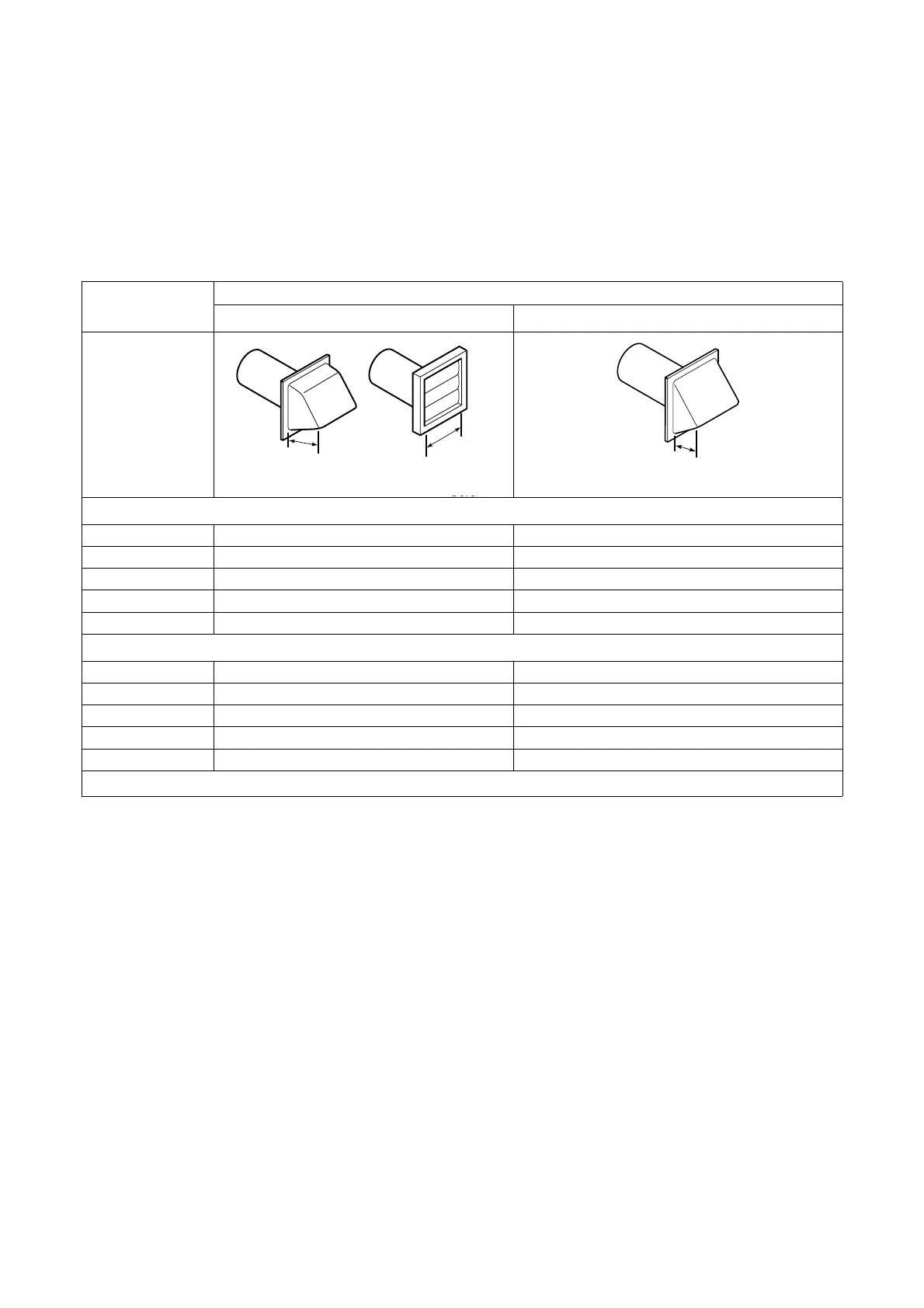

Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
Maximum length of 102 mm (4 in.) diameter rigid metal duct
0 19.8 m (65 ft.) 16.8 m (55 ft.)
1 16.8 m (55 ft.) 14.3 m (47 ft.)
2 14.3 m (47 ft.) 12.5 m (41 ft.)
3 11.0 m (36 ft.) 9.1 m (30 ft.)
4 8.5 m (28 ft.) 6.7 m (22 ft.)
Maximum length of 102 mm (4 in.) diameter flexible metal duct
0 13.7 m (45 ft.) 10.7 m (35 ft.)
1 10.7 m (35 ft.) 8.2 m (27 ft.)
2 9.1 m (30 ft.) 6.4 m (21 ft.)
3 7.6 m (25 ft.) 5.2 m (17 ft.)
4 6.1 m (20 ft.) 4.5 m (15 ft.)
NOTE: Deduct 1.8 m (6 ft.) for each additional elbow.
Table 2
102 mm
(4 in.)
102 mm
(4 in.)
D673I
64 mm
(2-1/2 in.)
D802I
To Next Page
