Danube DD8 - Location Requirements

©
I
511472 (EN)
12
Location Requirements
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.

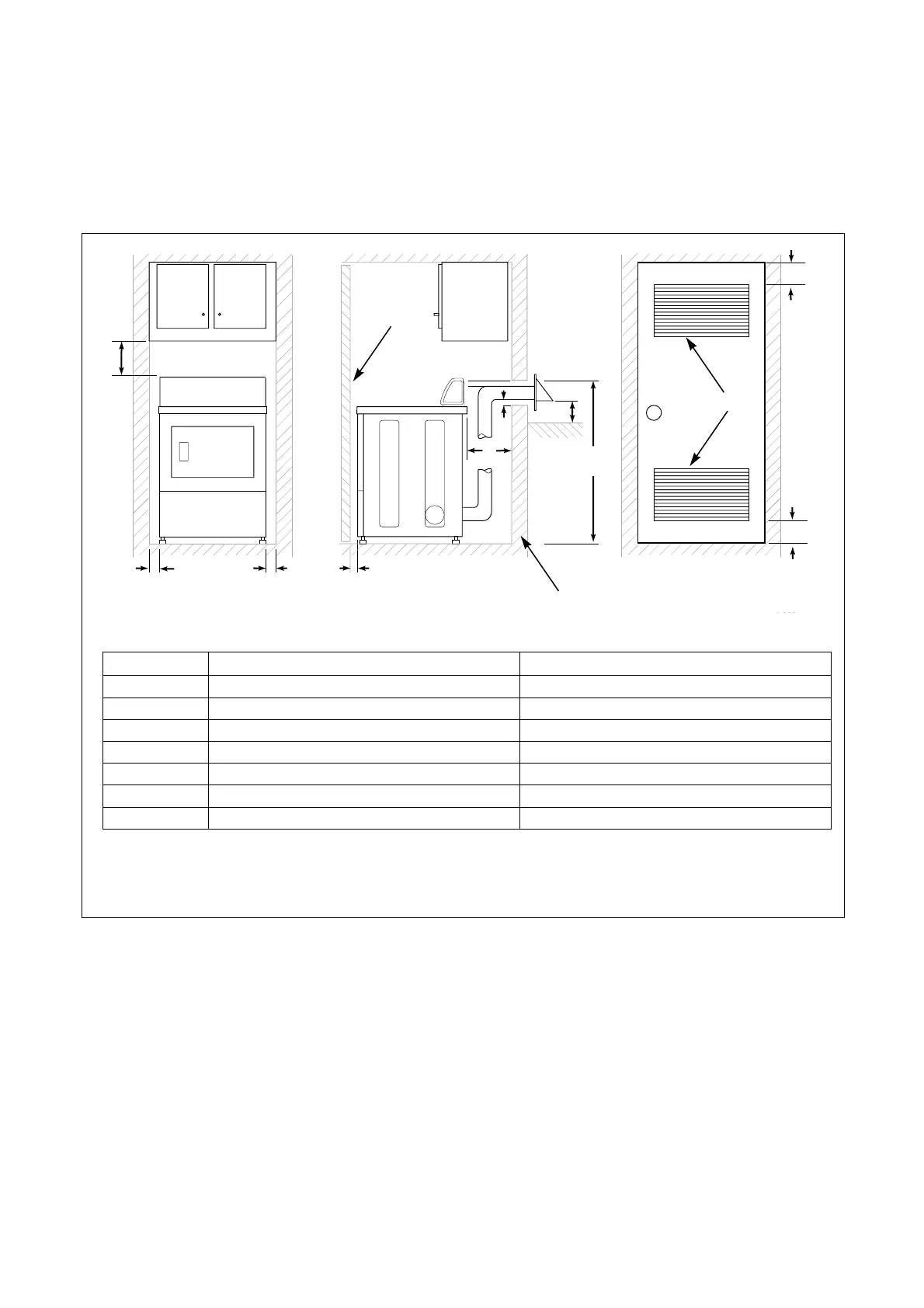

Figure 9
D823I
1 Closet Door 3 Outer Wall of Enclosure
2 Centered Air Openings
(2 openings minimum)
FRONT VIEW
(w/o Closet Door)
SIDE VIEW
(Closet Door)
FRONT VIEW
(Closet Door)
B
1
2 (G)
3
AA C
F
F
E
A
D
1066.8 mm
(42 in.)
Area Free Standing/Alcove Installation Closet Installation
A 0 mm (0 in.) minimum 0 mm (0 in.) minimum
B 304.8 mm (12 in.) minimum 304.8 mm (12 in.) minimum
C Not Applicable 50.8 mm (2 in.) minimum
D 50.8 mm (2 in.) minimum 50.8 mm (2 in.) minimum
E 304.8 mm (12 in.) minimum 304.8 mm (12 in.) minimum
F Not Applicable 76.2 mm (3 in.)
G Not Applicable 1016 mm
2
/open (40 in
2
)
