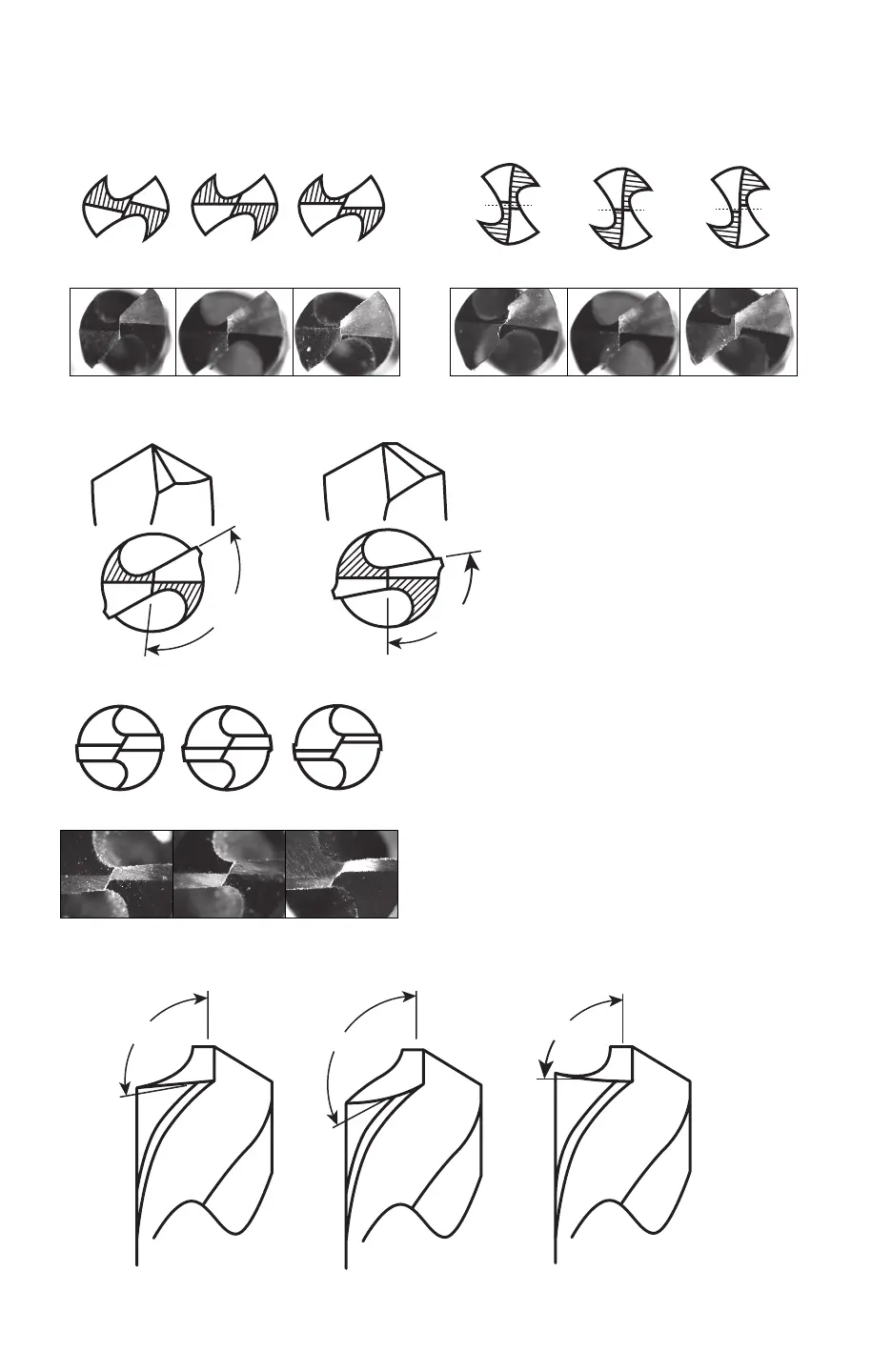

Point Split & Relief Diagrams
Depth of Split Diagram
Facet
Split Angle Diagram
Relief
Center of Split Diagram
To CenterTo Center
To Center
Below CenterPast Center
Below Center
Past CenterBelow Center
Past Center
95°
105°
120°
130°
Excessive Relief
Correct Relief
Negative Relief
