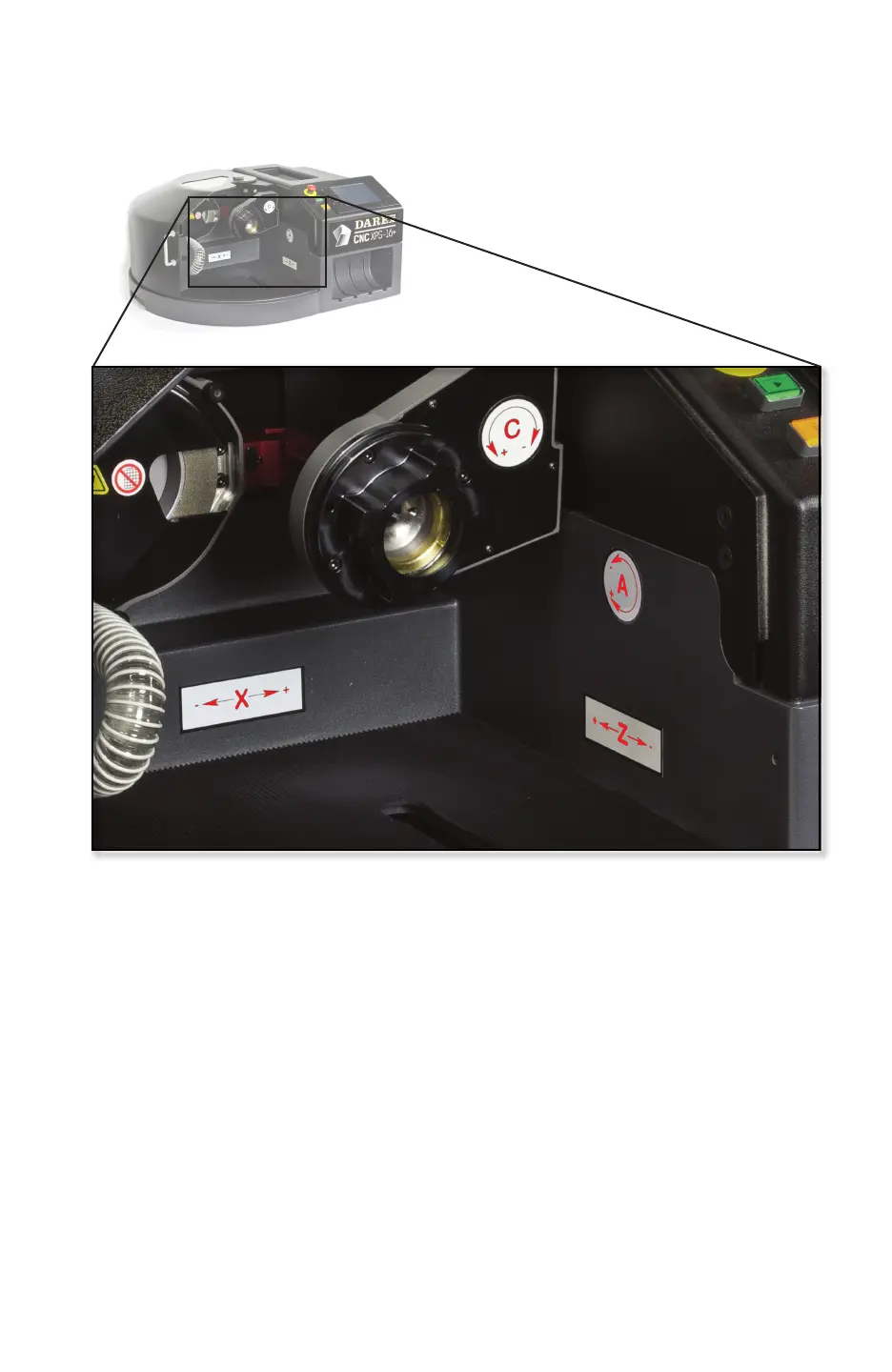

Machine Axis Definition
X Axis: A crossfeed axis which moves the grinding wheel sideways.
C Axis: A rotate stage which turns the drill bit about its axis.
A Axis: A swing stage which tilts the drill bit up and down at the rear.
Z Axis: An infeed axis which positions the drill bit closer to or further from the grinding wheel.
