10 Vantec series User's Manual

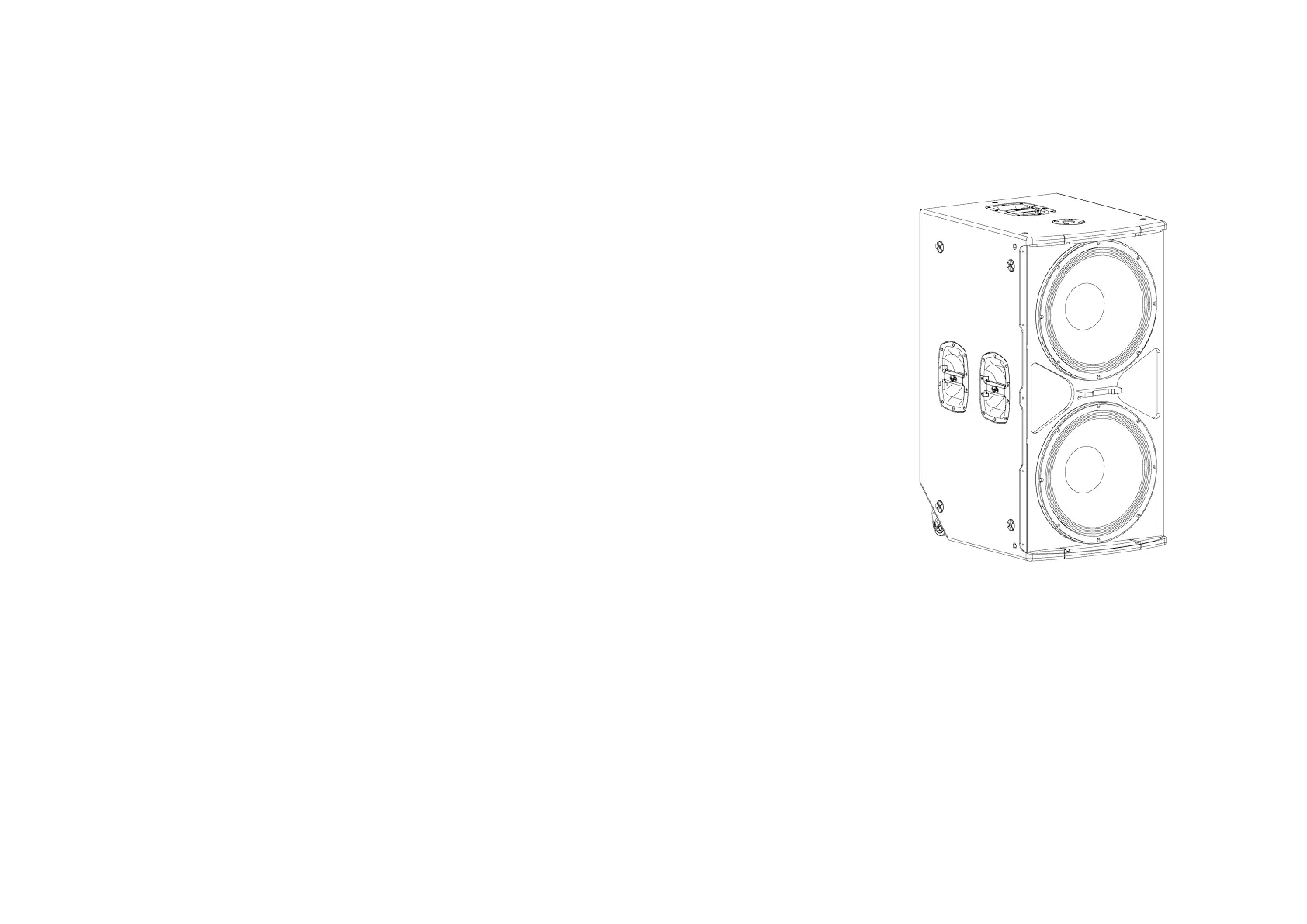

VANTEC-218A
The VANTEC-218A is a powered bass subwoofer system designed to provide extended bass response for the Vantec full-
range cabinets. A powerful amplifier drives dual DAS 18LX long excursion bass loudspeakers incorporating 4" voice coils
and massive magnet structures provide high power handling and impressive output.
The VANTEC-218A is powered by a Class D amplifier with switch mode power supply and a 4000 Wpeak power rating. The
system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating
the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control
and polarity reverse feature increase user control over the system.
The compact VANTEC-218A cabinet is manufactured using birch plywood and is finished with a coating of the highly
resistant ISO-flex black paint for durability. The powder-coated steel front grille protects the DAS components. Handles on
the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.
• Powered subwoofer system
• 4000 Wpeak Class “D” amplifier
• EQ Presets: Deep, Loud
• Variable Low Pass Filter
• Sub level gain control, polarity reverse
• Front logo on/off switch
• Rigging points
• Rear located wheels for easy movement
Vantec Series | Introduction
