Data Aire gPod - Field Piping, Remote Condenser below Evaporator; Connection Sizes, Air-Cooled Units; Figure 6 - Remote Condenser below Evaporator

Installation, Operation and Maintenance Manual
Page 18 of 100
3.2.5 Field Piping, Remote Condenser Below Evaporator

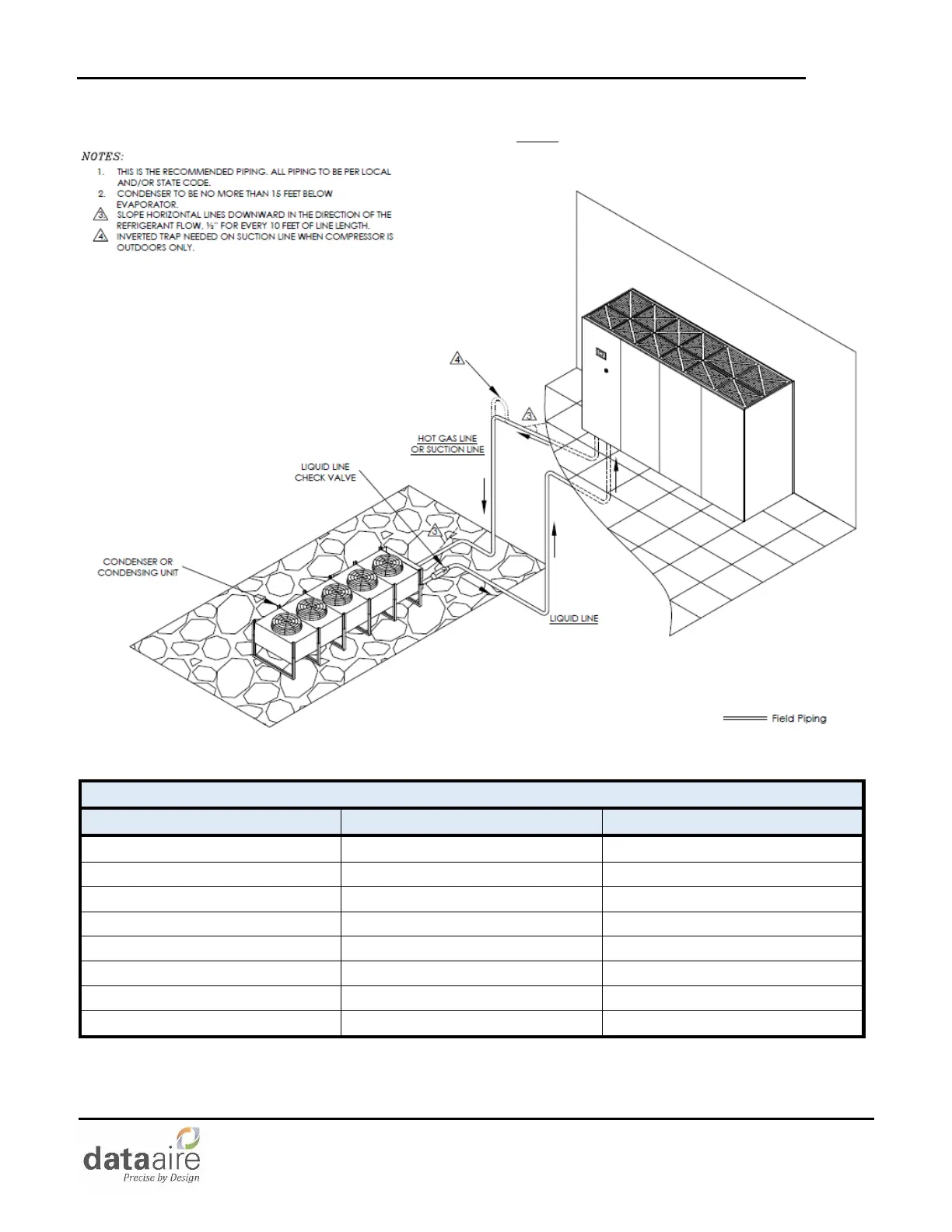

Figure 6 - Remote Condenser Below Evaporator
3.2.6 Connection Sizes, Air-Cooled Units
CEILING MOUNTED UNITS
Model Number
Hot Gas/Discharge Line
Liquid Line
GPAX-2.5
1/2” O.D.
1/2” O.D.
GPAX-03
1/2” O.D.
1/2” O.D.
GPAX-04
1/2” O.D.
1/2” O.D.
GPAX-05
1/2” O.D.
1/2” O.D.
GPAX-06
5/8” O.D.
5/8” O.D.
GPAX-08
5/8” O.D.
3/4” O.D.
GPAX-10
5/8” O.D.
3/4” O.D.
GPAX-13
7/8” O.D.
7/8” O.D.
