Multi-link Hardware Description — Figure 16
through Figure 22 illustrates the
VERSAstream
™
Multi-link Series aggregator/regenerator
front panel. This is the location for all cable connections and status LEDs.

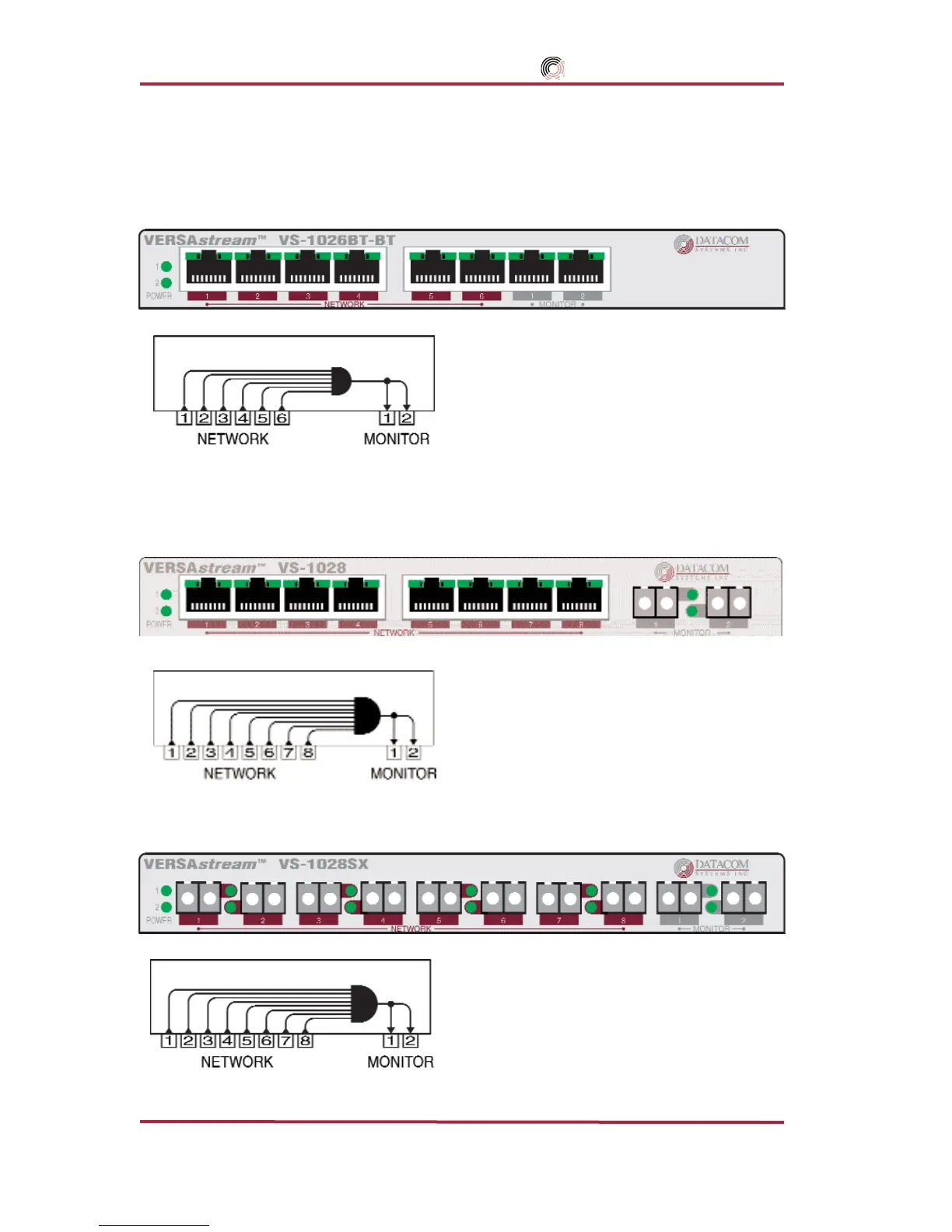

Figure 16 - VS-1026BT-BT Front Panel and functional diagram
Figure 17 - VS-1028 Front Panel and functional diagram
Figure 18 - VS-10282SX Front Panel and functional diagram
