Datacom Systems SS series SPAN - VS-1610 Kit Application

Datacom Systems Inc
SPAN and Multi-Link Aggregators/Regenerators • USERguide
38
VS-1610 kit Application — shown in Figure 26, focuses on a typical
VERSAstream
™
VS1610 kit (Two VS-1610s mounted in RMC-2 Rack Mount
Chassis and daisy-chained together) Multi-Link Aggregator deployed.
This VS-1610
kit is similiar to the VS-1412 kit VERSAstream
™
Multi-link series installation:

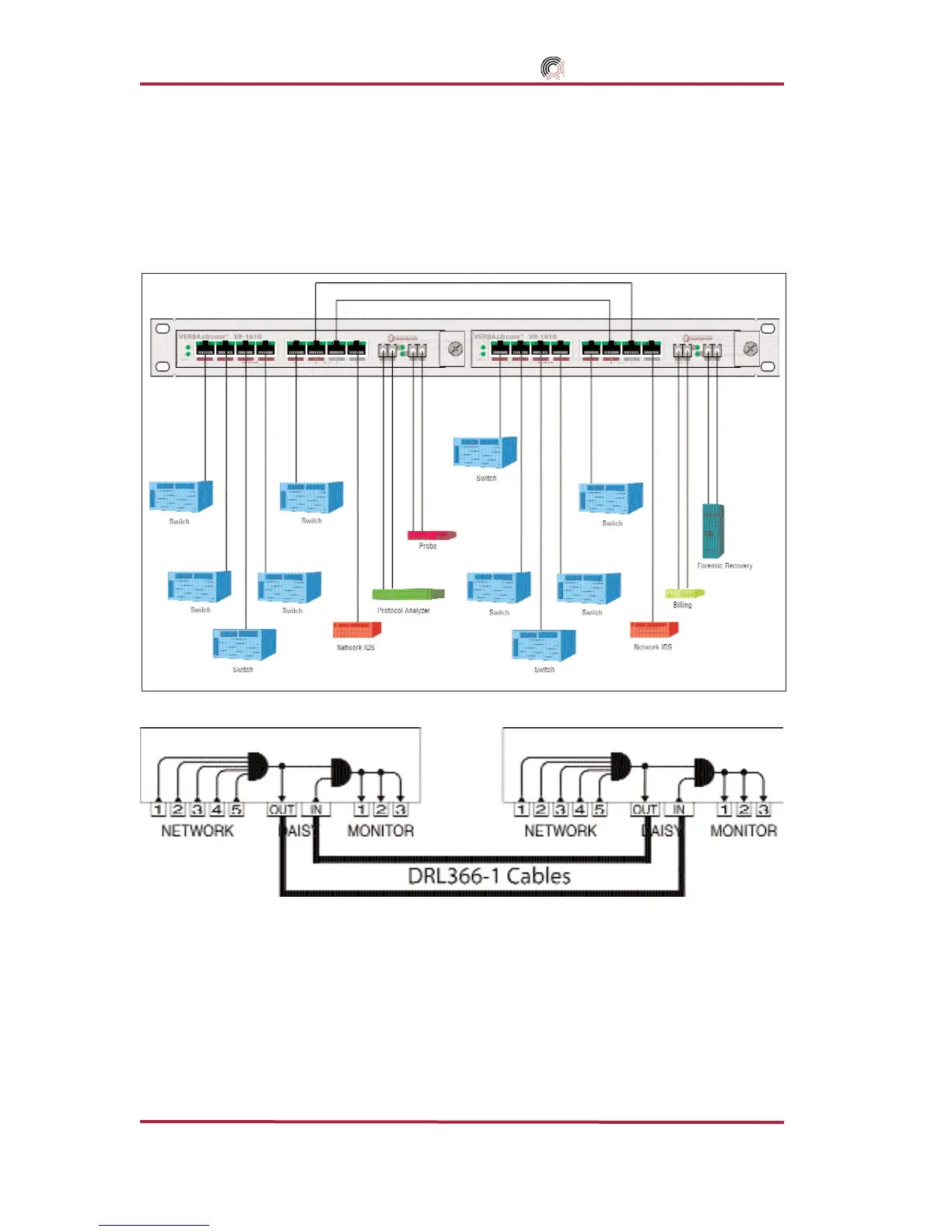

Figure 26 - VS1610 kit Typical Application and functional diagram
