Datacom Systems SS series SPAN - VS-1028 SPAN and In-Line Application

Datacom Systems Inc
SPAN and Multi-Link Aggregators/Regenerators • USERguide
36
VS-1028 SPAN and In-line Application — shown in Figure
25, focuses on a typical VERSAstream
™
VS-1028 Multi-Link Aggregator deployed
to gain complete visibility into your SPAN and In-Line environments combining
traffic from up to 8 different segments and outputting the aggregated data to two
connected monitoring devices. Monitoring or analyze with multi-segment aggrega-
tion means less deployment and maintenance costs.
This VS-1028 is similiar to other
VERSAstream
™
Multi-link series installations:

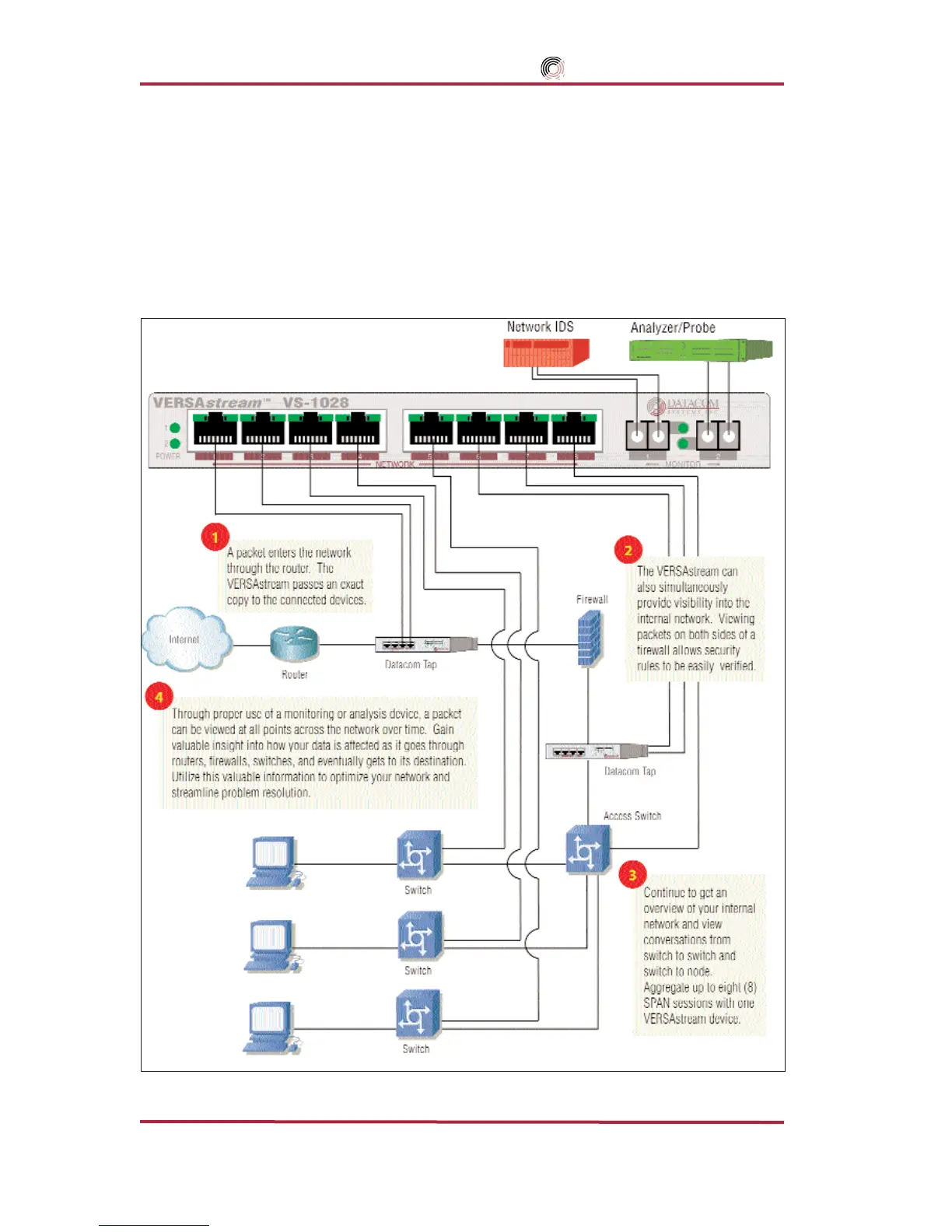

Figure 25 - VS-1028 SPAN and In-Line Application
