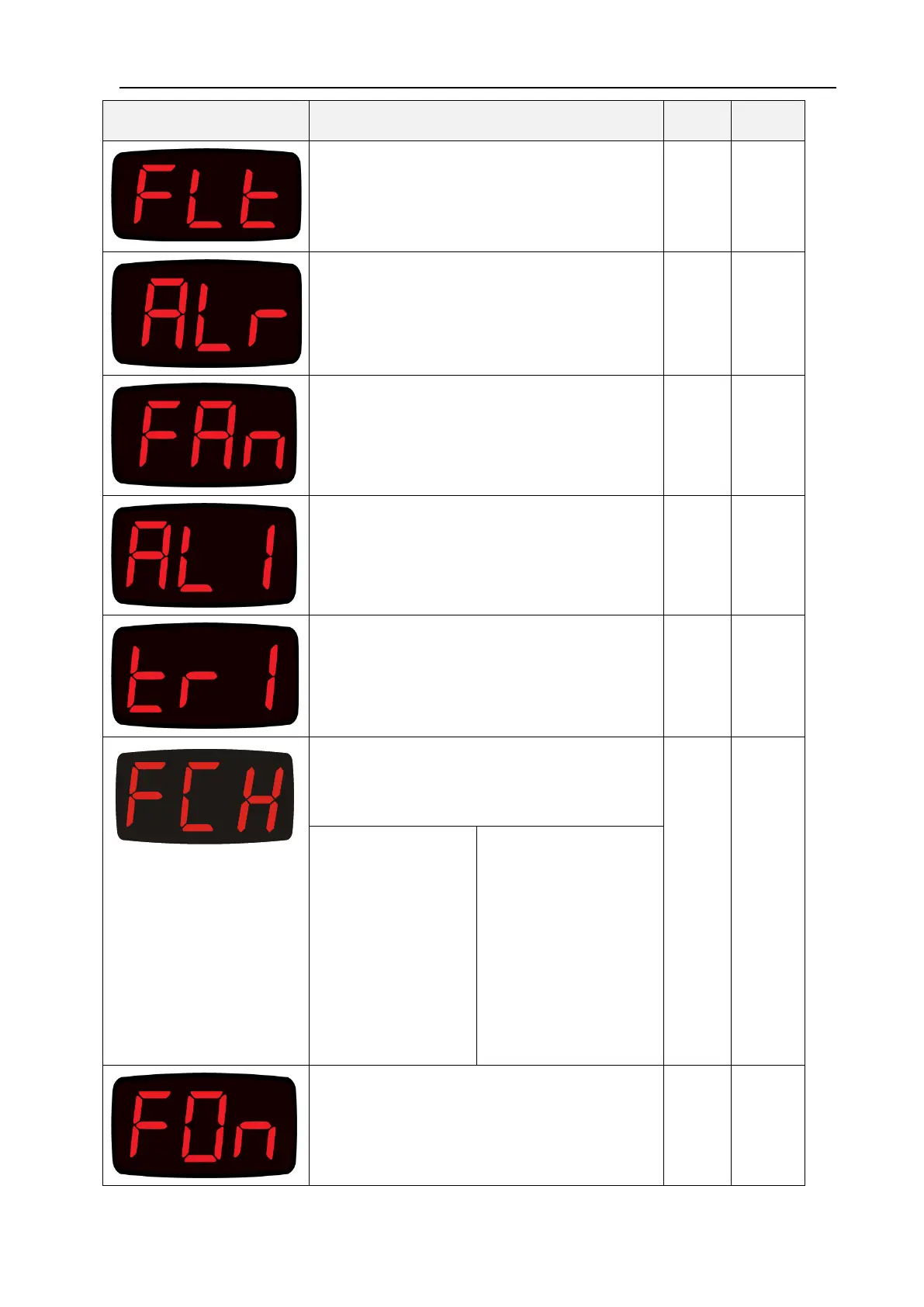

DISPLAY
DESCRIPTION
MIN
MAX
FAULT RELAY TEST ()
Used to test the FAULT relay. The value
of “1” activates the relay. The value of
“0” deactivates it.
0
1
ALARM RELAY TEST ()
Used to test the ALARM relay. The value
of “1” activates the relay. The value of
“0” deactivates it.
0
1
FAN RELAYE TEST ()
Used to test the FAN relay. The value of
“1” activates the relay. The value of “0”
deactivates it.
0
1
ALARM PARAMETER ()
Adjusts High Temperature Alarm limit
values of each channel.
0
295
TRIP PARAMETER ()
Adjusts High Temperature Trip values of
channels.
5
300
FAN CHANNEL PARAMETER ()
This parameter defines from which
channels the fan will operate.
0
15
0: none
1: channel_1
2: channel_2
3: channel_1+2
4: channel_3
5: channel_1+3
6: channel_2+3
7: channel_1+2+3
8: channel_4
9: channel_1+4
10: channel_2+4
11: channel_1+2+4
12: channel_3+4
13: channel_1+3+4
14: channel_2+3+4
15: channel_1+2+3+4
FAN ON PARAMETER ()
Adjusts Fan Turn ON Temperature
5
300
