Datalogic AREAscan DS2 Series - Installation of Several Adjacent Light Grids

DS2 Instruction Manual
6
SI
SI
2.2.3. Installation of several adjacent light grids
When several devices must be installed in adjacent areas, it is necessary to prevent the
interference between the emitter of one device and the receiver of another.

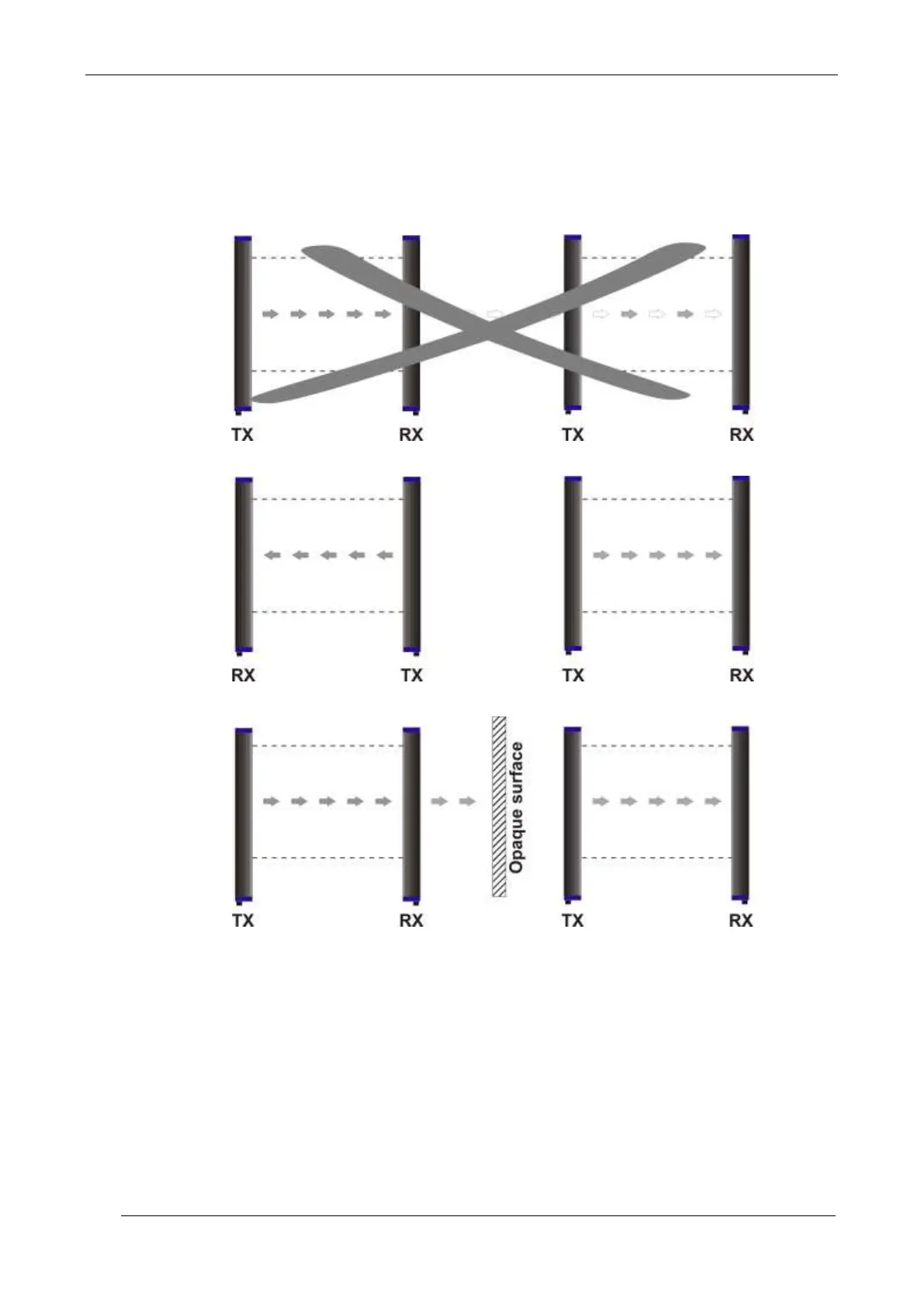

Fig.2 provides an installation example of possible interference between different devices and two
possible solutions.
Fig. 2
NO
