Datalogic Falcon X3 Quick Reference Guide

NOTE
The actual data transfer speed can be appreciably lower than the
maximum theoretical speed.

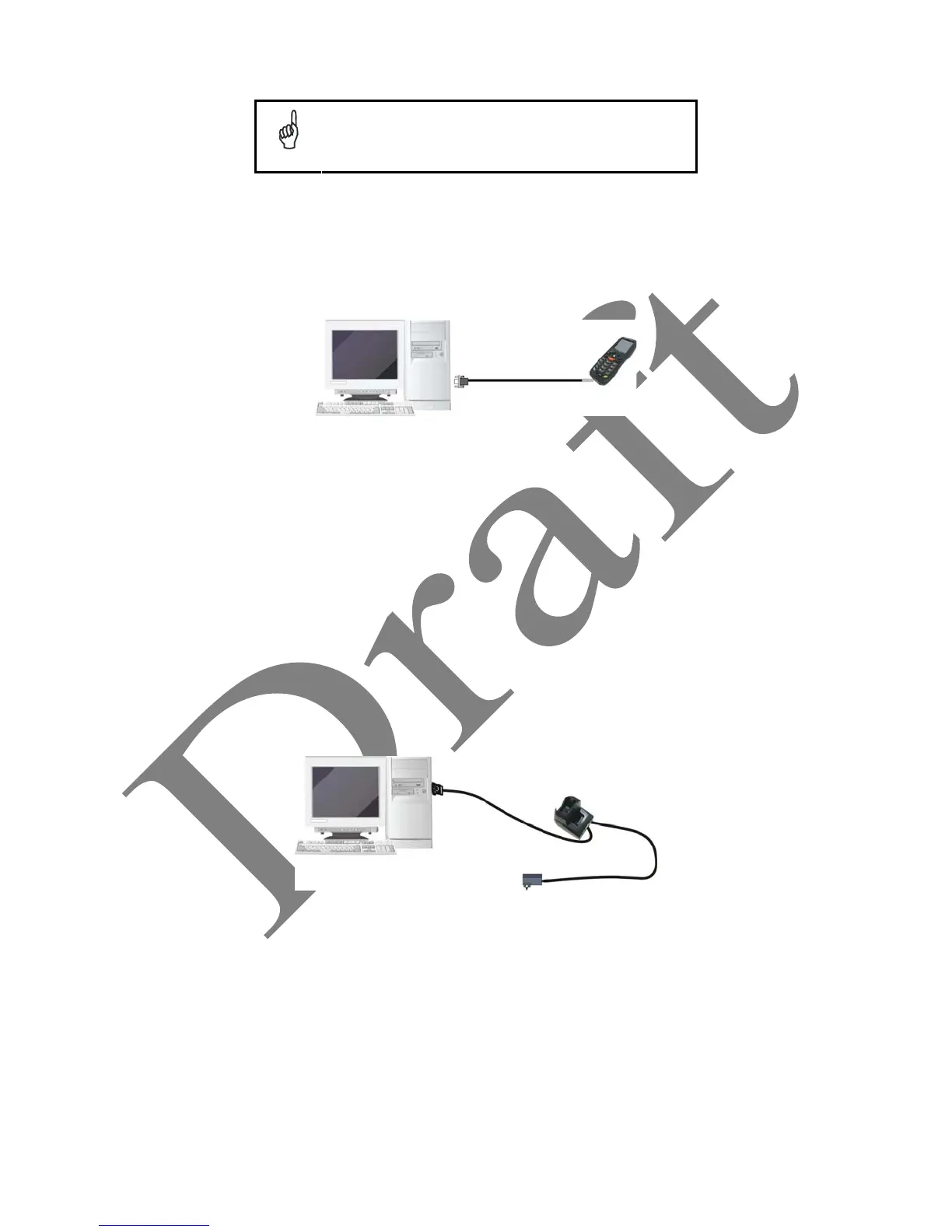

3.3 RS232 CONNECTION
You can use a cable to directly connect the Datalogic FALCON™ to a host computer to transfer data
through the RS232 interface.
Key:
A) Host Computer C) Datalogic FALCON™
B) 94A051022 WIN-
NET
(HRS ST40X-18S-
CV)
The Single Cradle can be connected to the Host by any standard 9-pin serial null-modem cable for
RS232 communications.
Once the Host has been turned on, insert the Datalogic FALCON™ mobile computer into the cradle.
Key:
A) Host Computer C) Single Cradle
B) 94A051020 CAB-427
Null-Modem
D) *Power Supply (only
necessary for battery
charging)
In this case the power supply is only necessary for battery charging. Insert the power supply plug into
the power jack on the base of the cradle and attach the power supply to a power outlet.
A
B
C
A
B
C
D

Datalogic Falcon X3 Specifications

General

RAM	256 MB
Flash Memory	1 GB
IP Rating	IP65
Operating System	Windows Embedded Handheld 6.5
Expansion Slot	MicroSD
Drop Resistance	1.8 m / 6.0 ft drops to concrete
Humidity	5 to 95% (non-condensing)
Supported Symbologies	PDF417, Data Matrix, QR Code
Operating Temperature	-10°C to 50°C (14°F to 122°F)
