Datalogic Magellan 1100i

Quick Reference Guide 1
Quick Reference
This guide is provided to help get your installation up-and-run-
ning quickly and efficiently. For more details, including pro-
gramming information, reference the Product Reference Guide
(PRG), which is available for viewing and download from the
Datalogic website listed on the back cover of this manual.
Installation
Route the interface cable from the terminal or host. Plug the
AC adapter (if one is used) into a wall outlet and the interface
(I/F) cable, then route and attach the I/F cable to the scanner.
Verify operation by presenting known-good barcodes to the
scanner. The unit should beep
1
and/or flash its good read LED
and send the barcode data to the host or terminal. If not, refer to
the Troubleshooting section of this guide.
Scanner installation is complete.
The Magellan 1100i utilizes illumix™ intelligent illumination
technology to optimize light levels for a variety of bar code
scanner functions including automatic reading of bar codes
from printed surfaces, mobile devices and image capture in
variable contrast environments.
1. Beeper and LED behavior is selectable and may have been dis-
abled by a previous user.

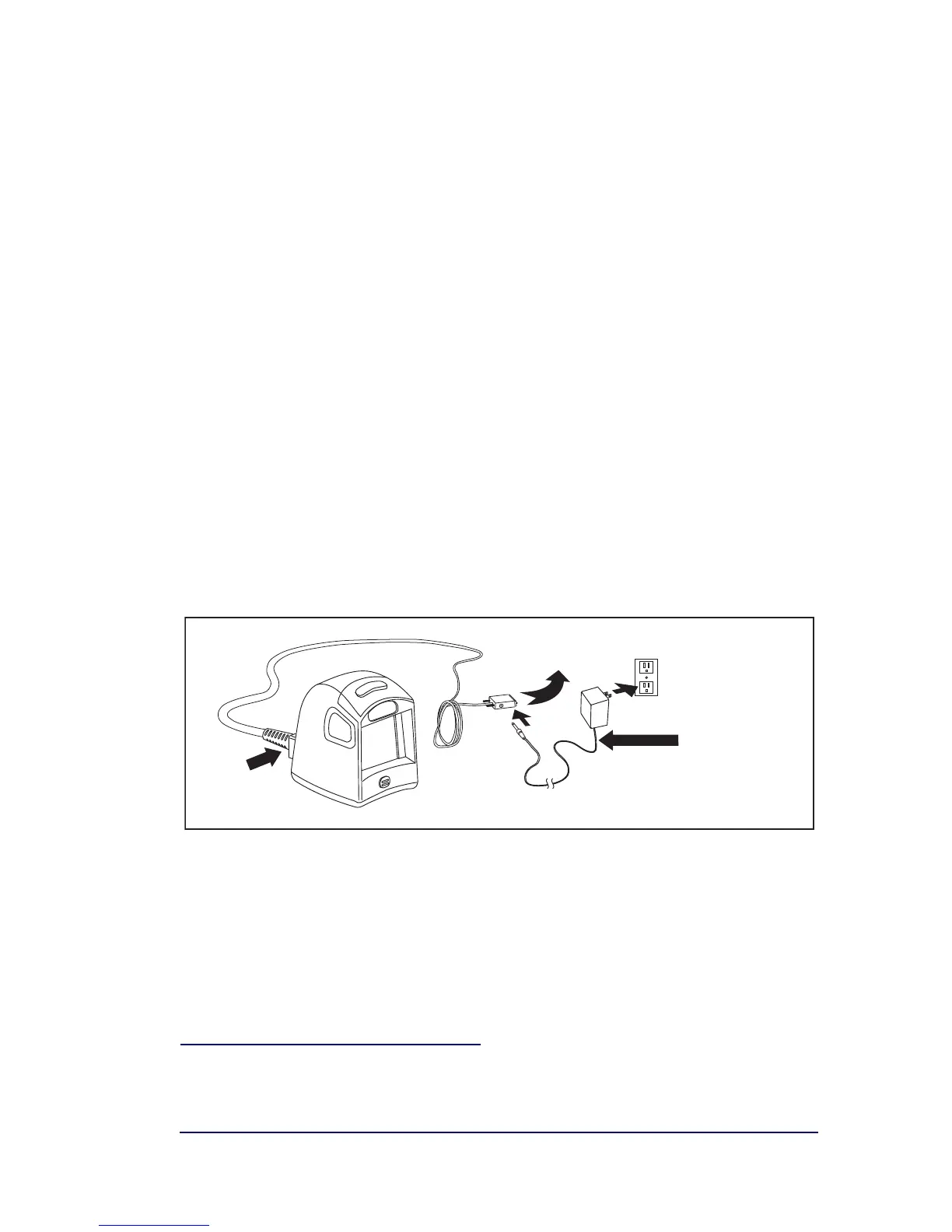

I/F Cable
Connect
Here
A/C Adapter
(if needed)
For 220-230 VAC
adapters, the
cord must be
facing down as
shown in the
illustration. If
installed upwards,
it will pose an
undue strain on the
socket outlet.
To Host/Terminal
