Datalogic PowerScan CM9630

Wall Mounting
QUICK REFERENCE GUIDE 5

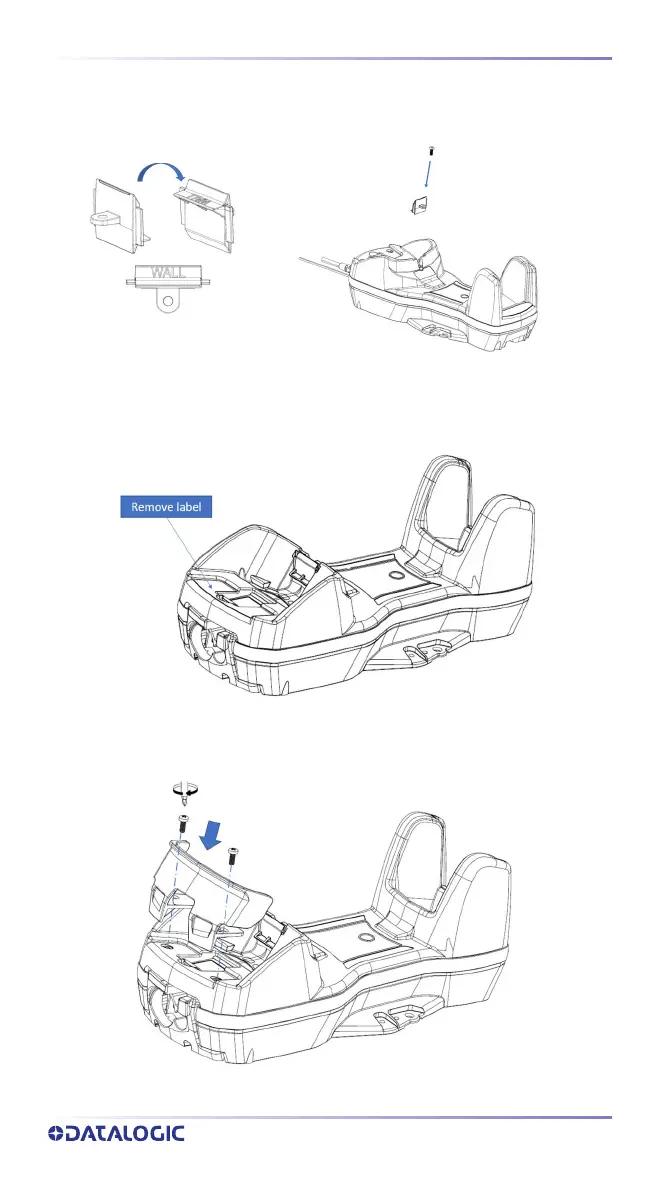

3. Rotate the tab until you will see "WALL" tooth, put the rotated tab into
place and secure it with the screw.
4. Remove the label (indicated in the figure below) from the base station:
5. Mount the Wall Mounting bracket onto the base station.
