Datalogic PowerScan CM9630

Portable Desktop Mounting
QUICK REFERENCE GUIDE 7

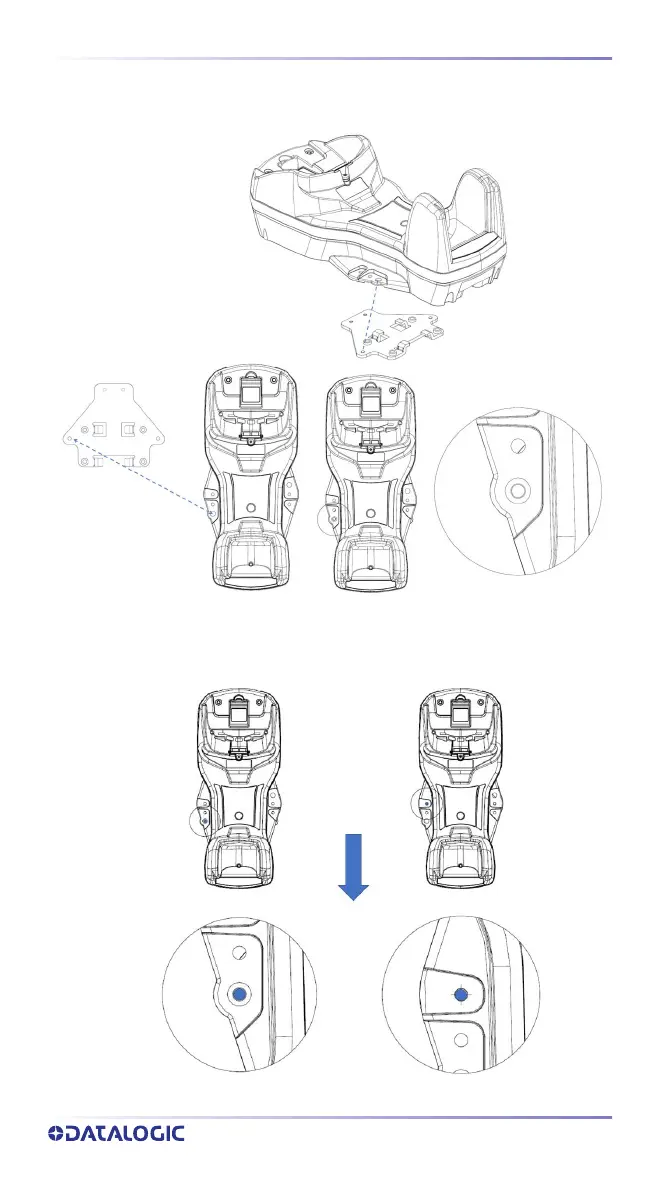

3. Align the base station with the mounting plate until you see the sphere
inside the bigger hole on the left.
4. Move the base station down until the sphere is aligned with the smaller
hole.
