Connecting the Base Station
Quick Reference Guide 5
3. After the cables are plugged in, reinsert the Cable Stop-
per.
4. Connect to an AC Adapter, and plug the AC power cord
into the (wall) outlet.

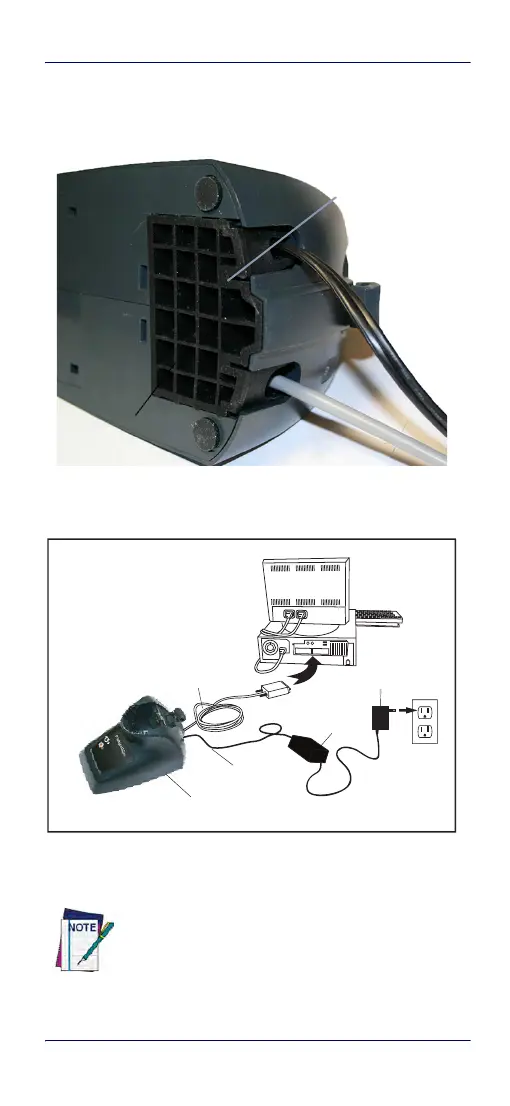

Figure 3. Connecting the Base Station
Host Connection —
Verify before connection that the reader’s
cable type is compatible with your host equipment.
The QuickScan QBT2400 reader can be set up to
require a PIN code when connecting to the host.
If you are adding new equipment to a system
that uses a custom security PIN, please see the
PRG for information before proceeding.
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
To Next Page
