Setting Up the Reader
2 QuickScan™ QM2400
Setting Up the Reader
Follow the steps below to connect and get your reader up and
communicating with its host.
1. Configure the Base Station starting on this page.
2. Charge the Batteries (see page 8).
3. Link to the Base Station (see page 11).
4. Select the Interface Type (see page 13).
5. Configure the Reader starting on page 12 (optional,
depends on settings needed).
Locking the Reader to the Base
The Base Station provides a locking mechanism to ensure
electrical contact between Reader and Base, in case of inad-
vertent movements.

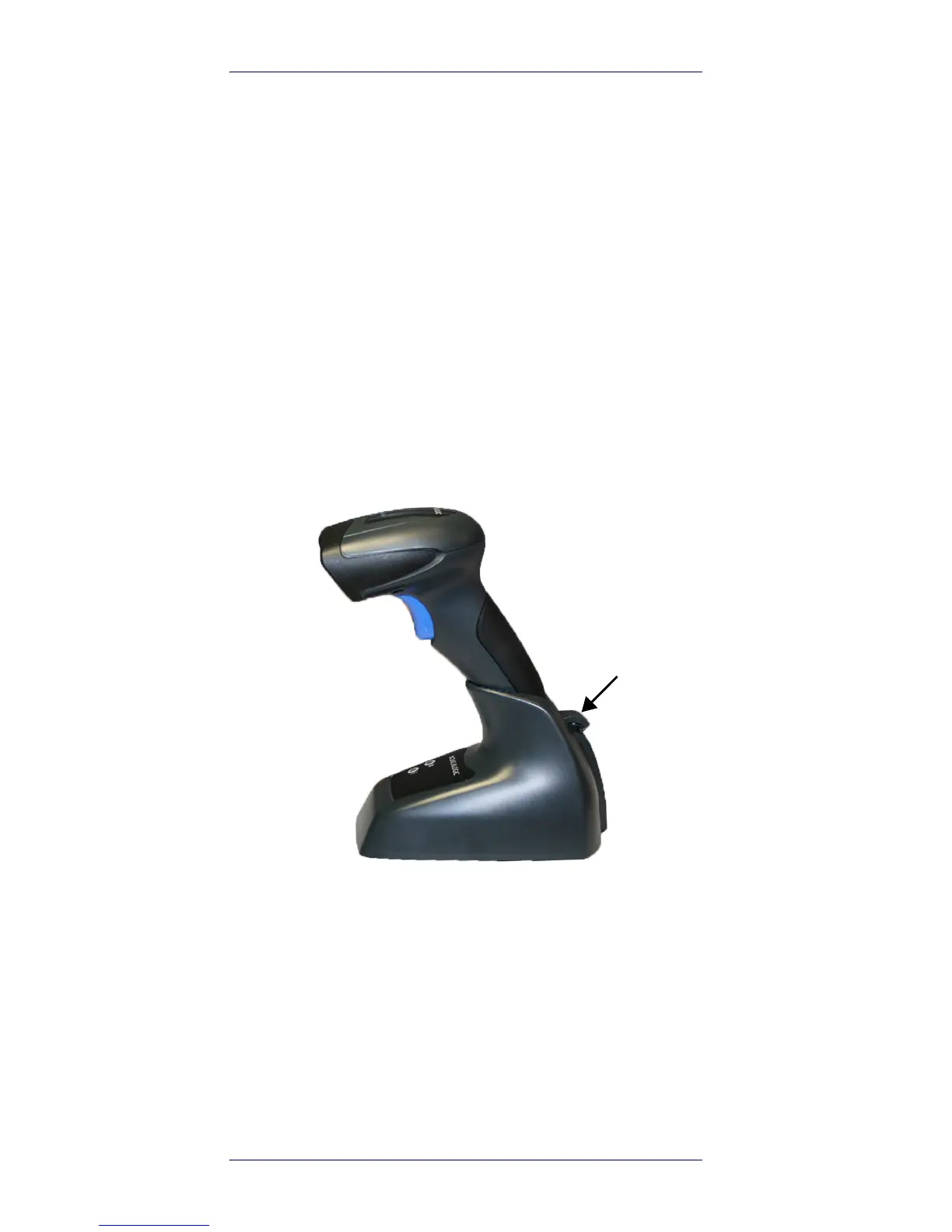

To Lock the Reader in the Base
1. Insert the Reader into the Base. The lock lever rests in
its natural disengaged position toward the bottom of
the Base.
Lock lever

Datalogic QuickScan QM2400 Specifications

General

Brand	Datalogic
Model	QuickScan QM2400
Category	Barcode Reader
Language	English
