A-Class 27

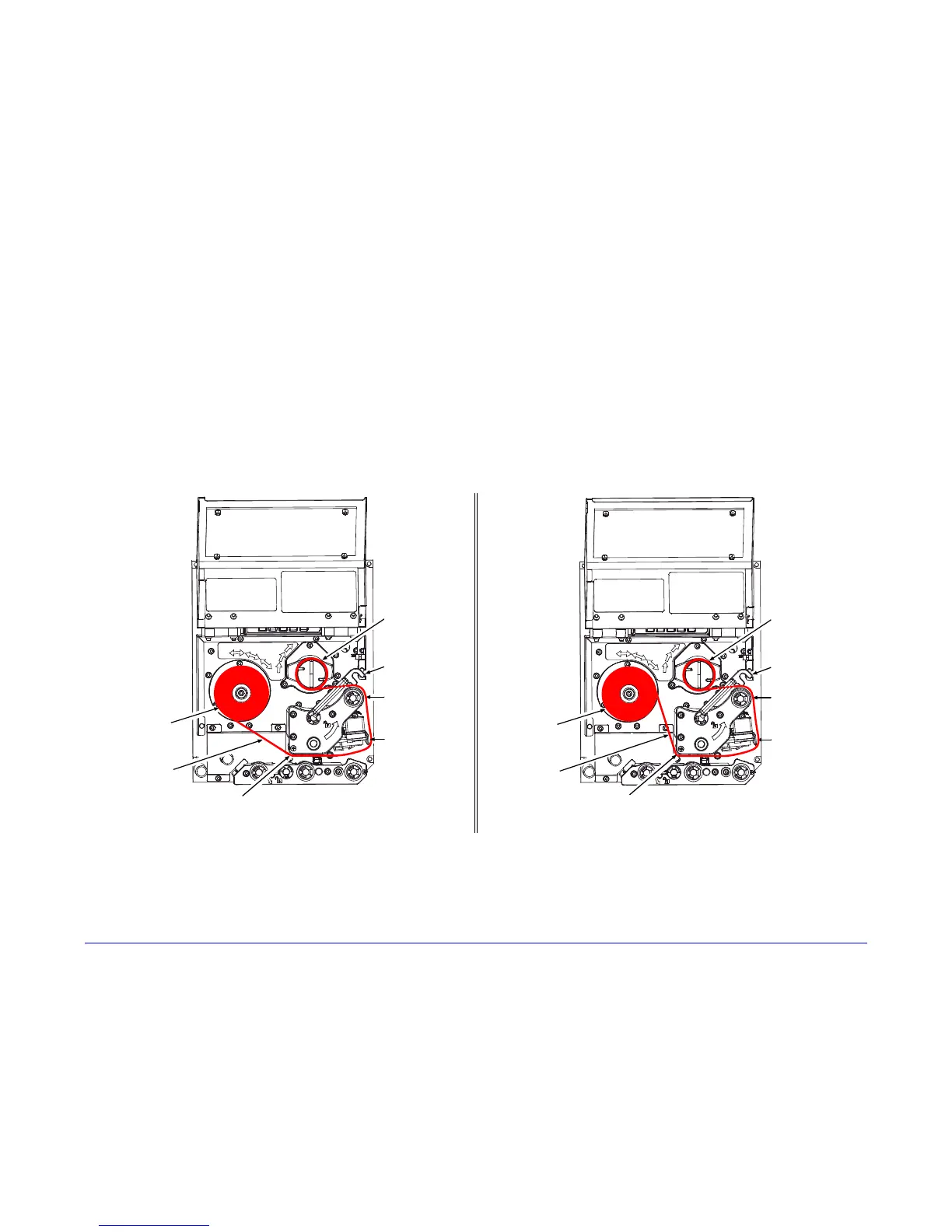

2. With the Head Lift Lever raised, route the Ribbon under the Lower Idler, over the Ribbon Shield and Upper Idler, and then
clockwise around to the Ribbon Take-Up Hub.
3. Rotate the Ribbon Take-Up Hub clockwise several times to secure the Ribbon.
4. Lower and lock the Head Lift Lever then close the access cover.
CSO Ribbon
Roll
Ribbon
Ribbon
Take-Up Hub
Upper Idler
Ribbon Shield
Lower Idler
Head
Lift Lever
Ribbon
CSI Ribbon
Roll
Ribbon
Take-Up Hub
Upper Idler
Ribbon Shield
Head
Lift Lever
Lower Idler
CSO Ribbon CSI Ribbon
