Datamax M-Class Mark II Manual

2

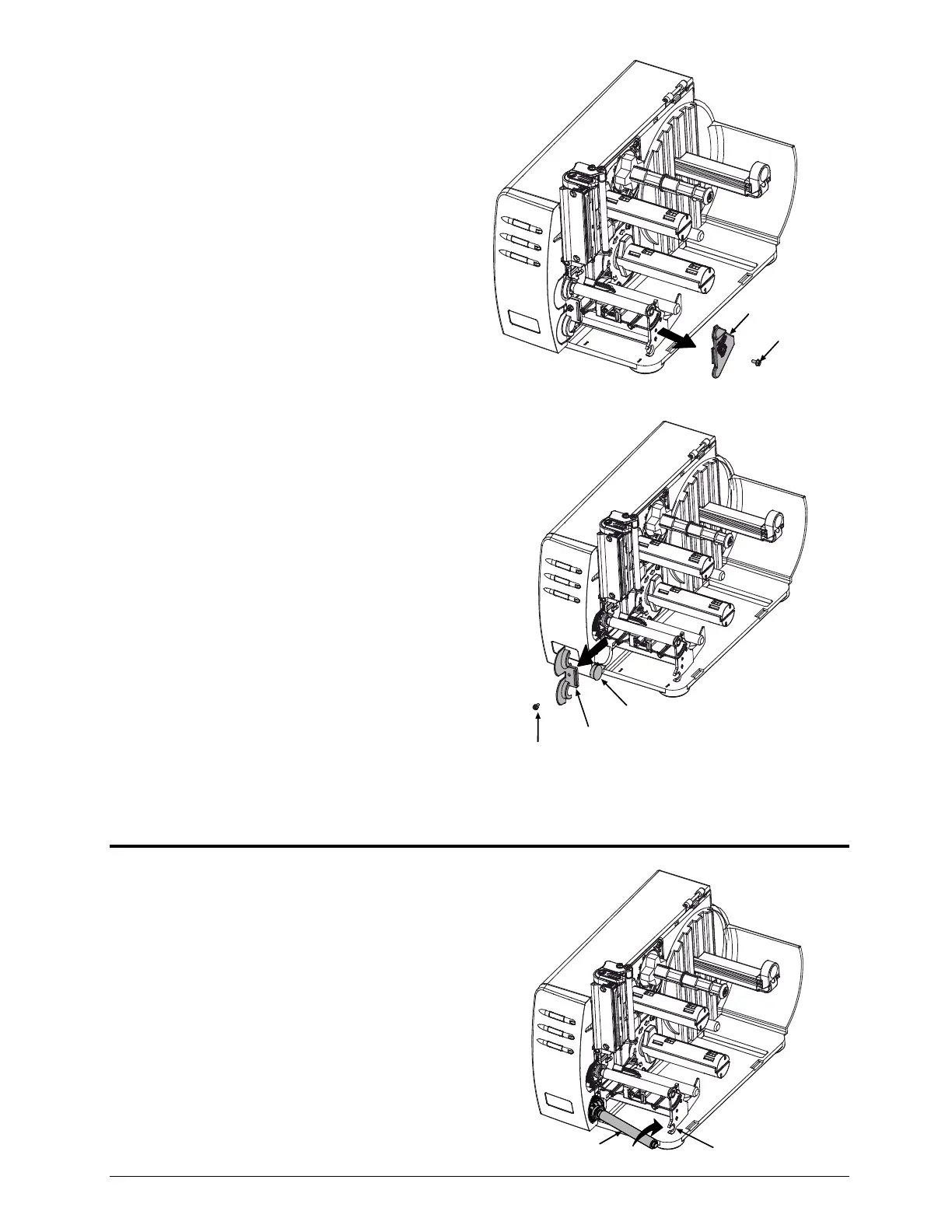

 Using a #2 Philips head screwdriver, remove
the Screw that secures the Side Plate to the
printer.
 Remove the Side Plate.
Side Plate
Screw
 Using a #2 Philips head screwdriver, remove
the Screw that secures the Bearing Cap to the
printer.
 Remove the Bearing Cap and the Hole Plug.
Bearing Cap
Screw
Hole Plug
Step 2: Installing the Assist Roller
 Insert the Assist Roller, as shown, gears first
into the printer.
 Pivot the other end of the roller into the
Bearing Block.
Assist Roller
Bearing Block

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
