Datapath X4 User Guide

Setting up the x4

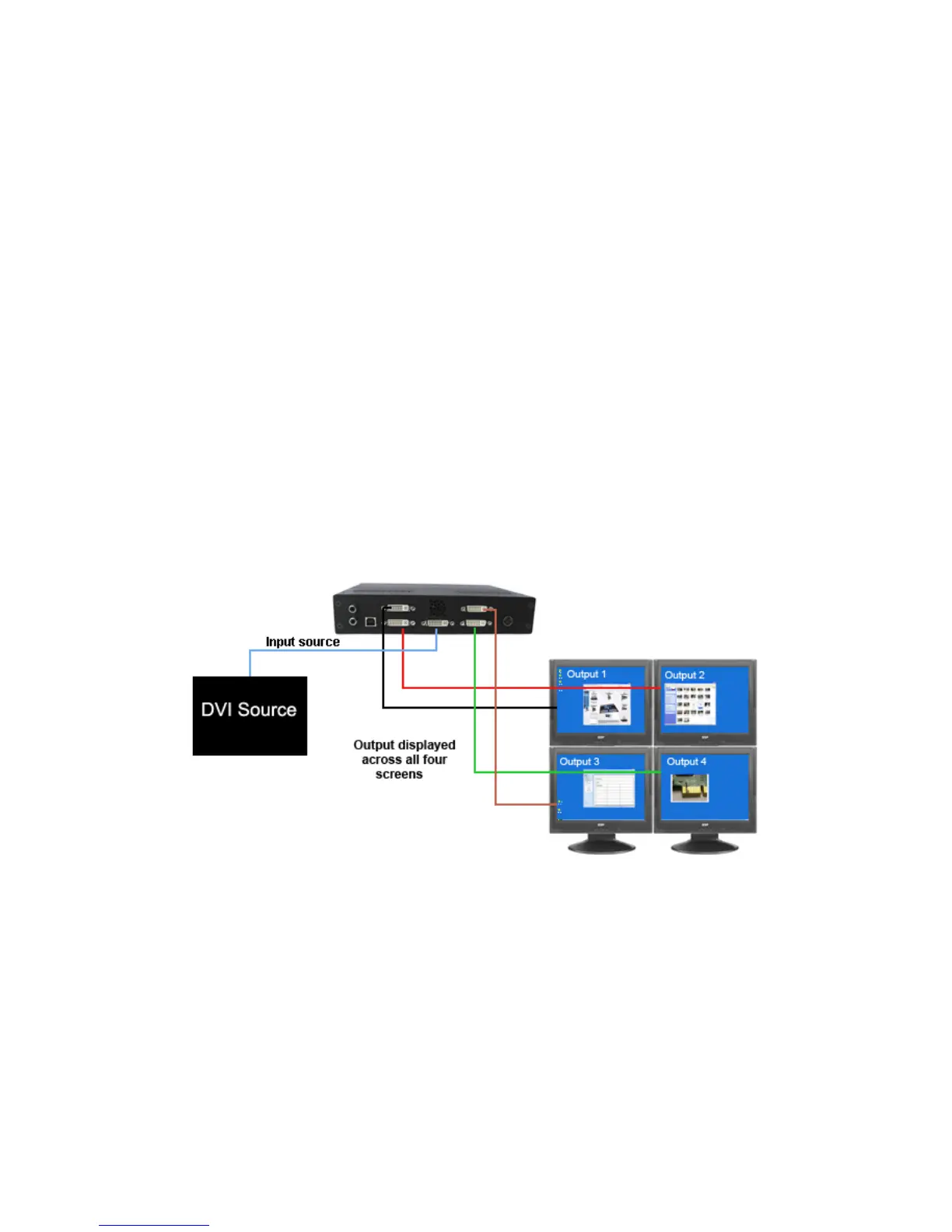

• EnsurethepowersupplyfortheDVIsourceisdisconnected.
• ConnectthecablefromtheDVIsourcetotheinputsocketontherearofthex4.
• Connectthefourdisplaystotheoutputsocketsontherearpanelofthex4.
• Connectthex4-PSUtothex4andswitchonthepowersupplyatthemainssocketusingthecorrect
internationalblade(seepage9).
• PoweruptheDVIsource.
ThePowerLEDlocatedonthefrontpanelwillilluminatetoindicatethatpowerhassuccessfullybeen
appliedtotheunit.
Thex4incorporatesaninternalprocessorthatwillcontinuouslymonitorthereceivedDVIsignal,and
wheneveravalidandstableinputisdetectedtheInputLEDisilluminated.
IftheInputLEDisnotilluminated,thex4cannotdetectavalidDVIinputsource.
Duringoperation,thex4isabletoadjustitsinternaloperationtomaintaintheprogrammedoutputpro-
portionsevenwhentheinputresolutionchanges.
Fig.3

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
