Datapath X4 User Guide

x4 Control Application
Application Installation
Note: Do not plug the x4 into a USB port until the driver installation is complete.
Locate the Install folder on the Datapath CD supplied with the x4, run install.exe. and follow the
installation wizard. During installation a warning message is displayed stating that the driver does not
have Windows® Logo accreditation.
Select Continue Anyway to complete the installation.
The Datapath x4 can now be connected to a suitable USB 1.0 or 2.0 port using the cable supplied. At
this point the hardware will be detected by Windows® as an x4 splitter, and a New Hardware wizard is
displayed. Allow the wizard to search, and click on the recommended option to enable the previously
installed driver to be associated with the new hardware.
Press Continue Anyway to accept the driver.
Running the x4 Control Application
To open the x4 Control application select Start/All Programs/x4 Control.
The application will search for an x4 connected to your computer and display the status of the rst x4
detected. Should there be more than one x4 in use, a list of all available x4’s can be found in the File
menu.

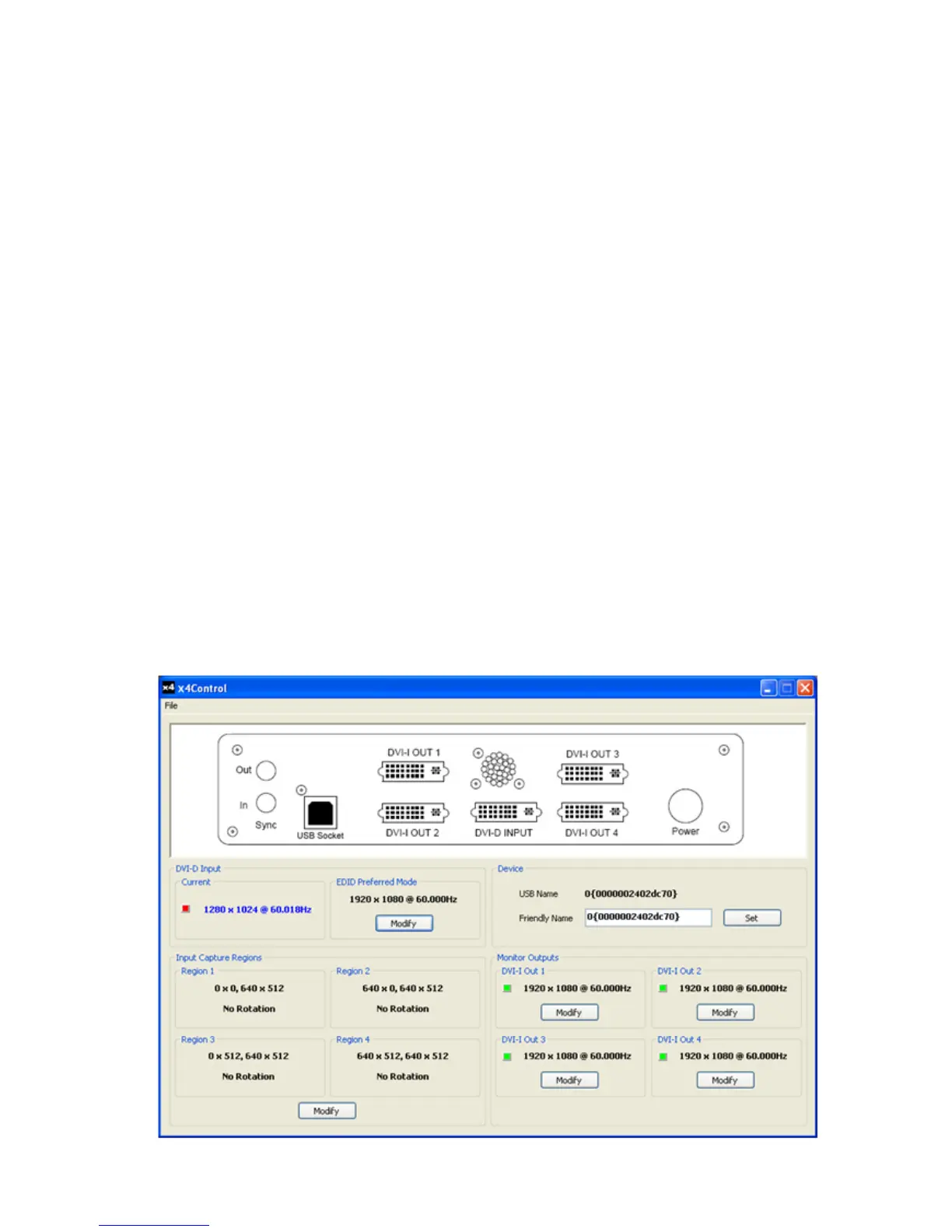

Once the application has detected an x4 the main status screen is displayed Fig.4.
Fig.4

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
