Datapath X4 User Guide

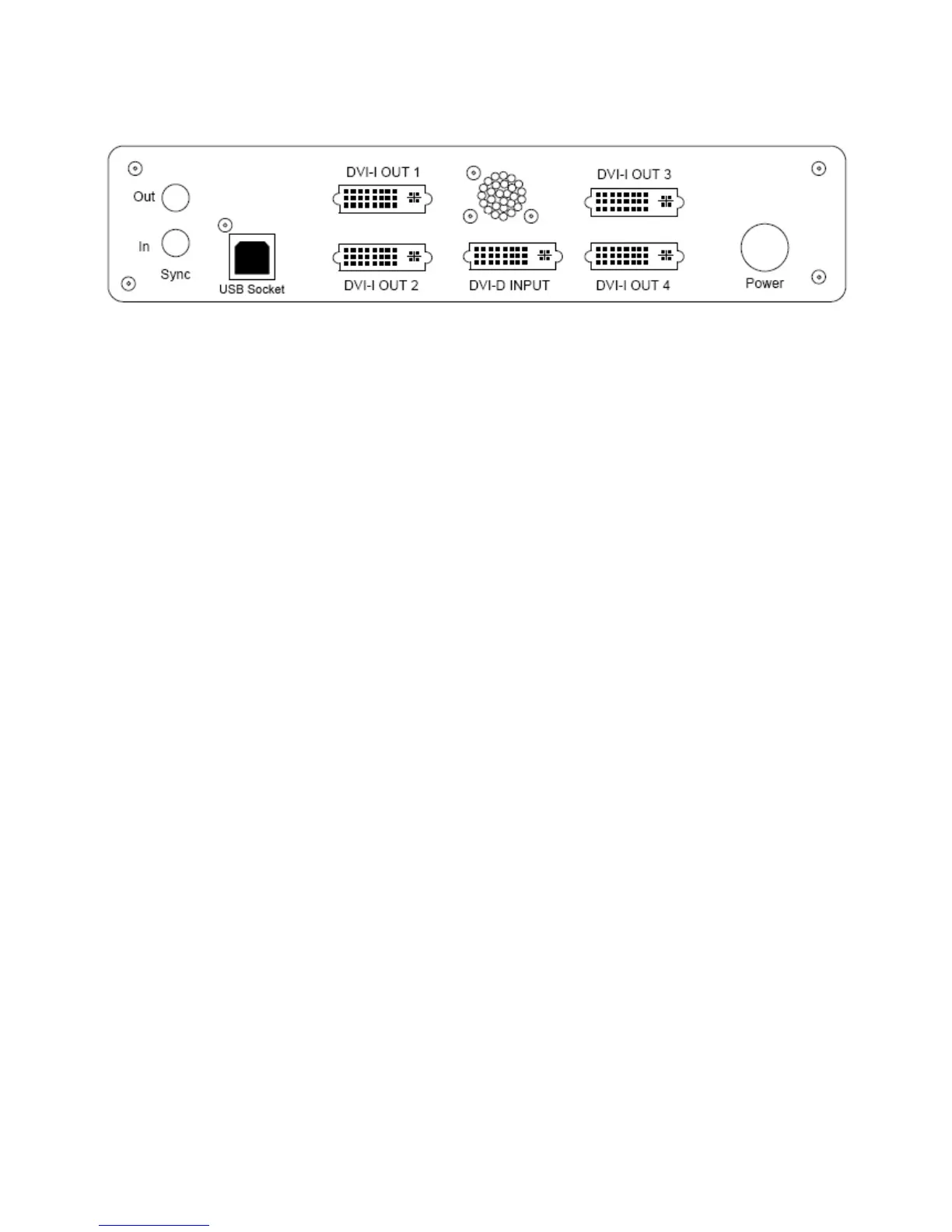

Rear Panel
Fig.2
Sync Sockets
The Sync sockets are provided for future genlock enhancements. They should be left unconnected.
USB Socket
The USB socket is used to connect the x4 to a PC via a USB connection using the supplied USB Type A to
Type B cable. Conguration of the x4 is programmable via an application utility allowing easy control of
cropping, scaling, rotation and gaps.
DVI-D Input Socket
The DVI-D Input socket is used to connect the DVI input source to the x4. The x4 supports Dual Link DVI,
Single Link DVI and also HDMI (not HDCP compliant) by using the optional DVI/HDMI Adapter.
DVI-I Output Sockets
The four DVI-I Out sockets are used to connect the x4 to the output monitors. The x4 supports both DVI
and analog RGB monitors.
Power
The Power socket is where the power source is connected to the x4. The x4-PSU supplied is plugged into
the Power socket. The power LED on the front of the x4 illuminates when a power supply is
connected.

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
