Datapath X4 User Guide

Unpacking
Your packing box should contain the following items:
• The x4 Display Wall Controller.
• The x4-PSU Power supply unit with international blades.
• USB 2.0 cable Type A to Type B.
• Datapath CD containing Conguration Application and User Manual.
Note:
We recommend that you do not discard the packing box until you are completely satised with
the x4, and it is fully installed and working correctly. We also recommend that you make note of
the serial number of the controller in a prominent place before you connect it to the
computer. This should hasten any query should you need to contact our Technical Support De-
partment. The serial number is displayed on the x4 and the box label.
Fitting the x4 PSU Blades

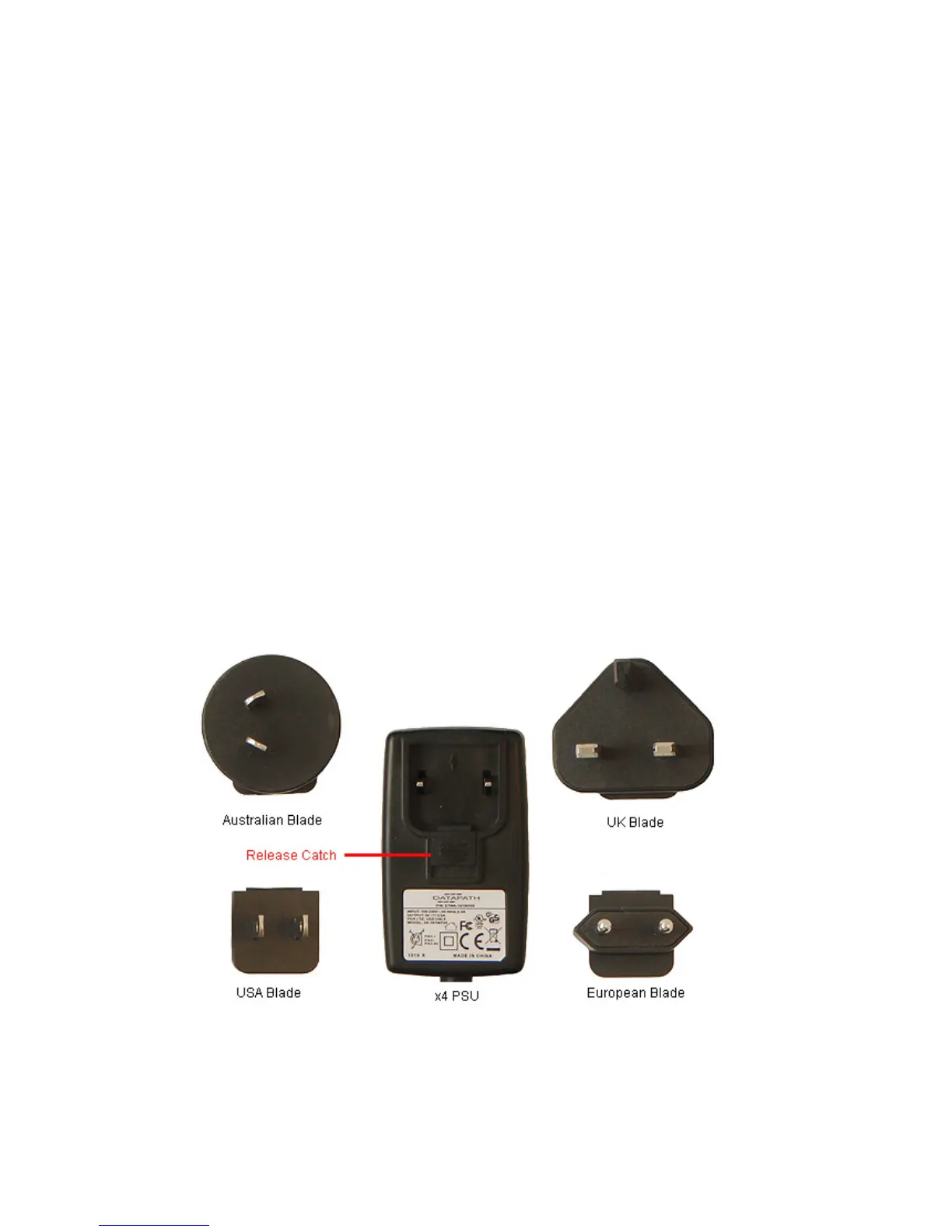

Select the appropriate blade for use, place the top edge of the blade into the recess of the PSU and the
press down ensuring the Release Catch clicks rmly into place and secures the blade inside the recess.
To remove the blade, slide the Release Catch down fully and pull the blade away from the PSU recess.

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
