Datapath X4 User Manual

Description

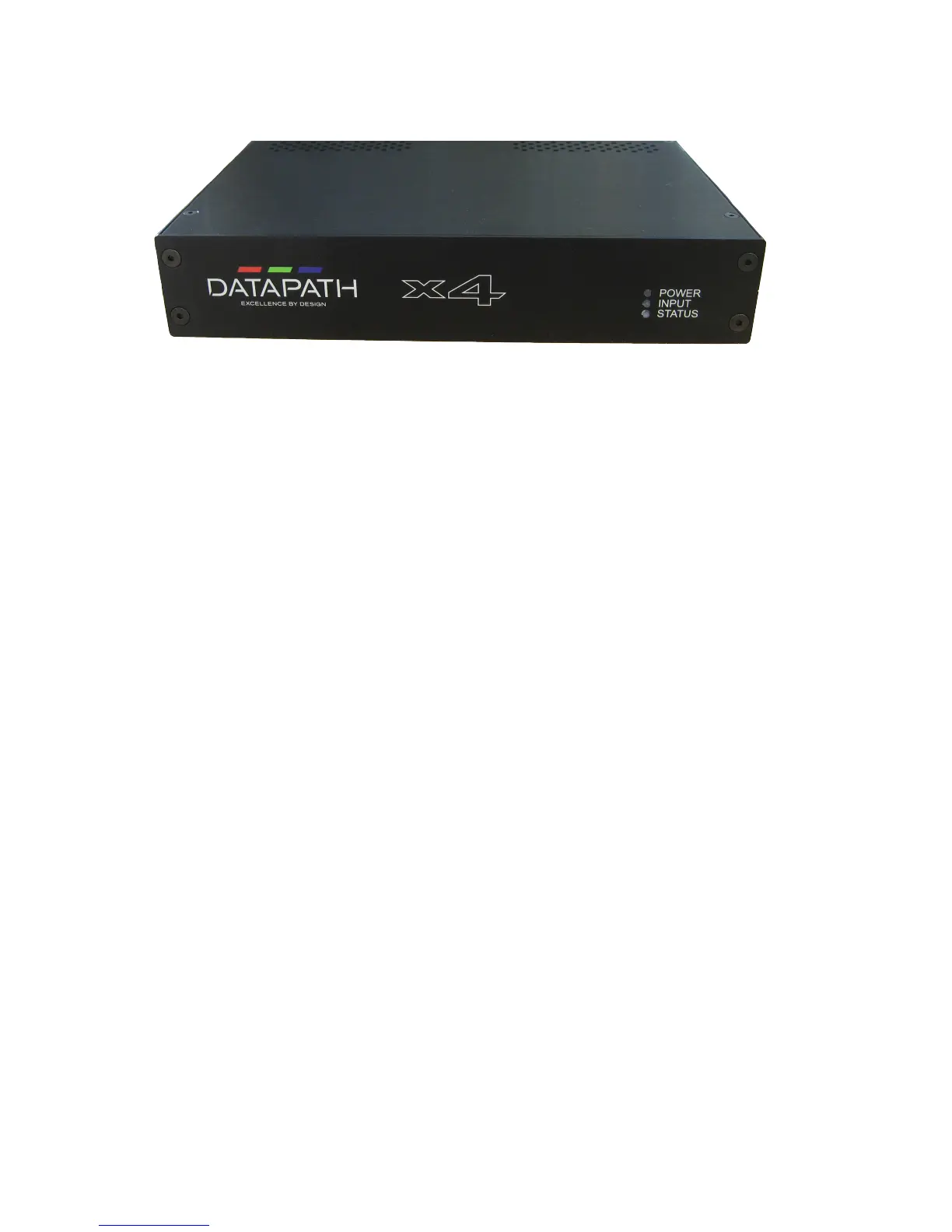

Front panel
Fig.1
Operation Indicators
The front panel has three LEDs to indicate the operational status of the x4:
• Power
• Input
• Status
Power
• When illuminated, the Power LED indicates the x4 is connected to a mains supply using the
supplied PSU.
Input
• When illuminated, the Input LED indicates a valid DVI source is connected.
Status
• Continuous illumination – Indicates the x4 is operating normally.
• Flashing – Unit is operating over the normal operating temperature. Ensure the input fan vent is not
blocked.
• If the Status LED goes o and remains o this indicates that the settings congured in the x4
application no longer match the input, this is normally the result of a change of input. The x4 will
compensate for the settings and recongure itself to display as near to the settings as possible. The
output will still be displayed but not necessarily as expected.
When the x4 device is connected to a PC by a USB cable and the x4 Control application is active, then all
three lights ash in turn to help to identify which unit is being controlled.
10

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
