Datapath X4 User Manual

Setting up the x4

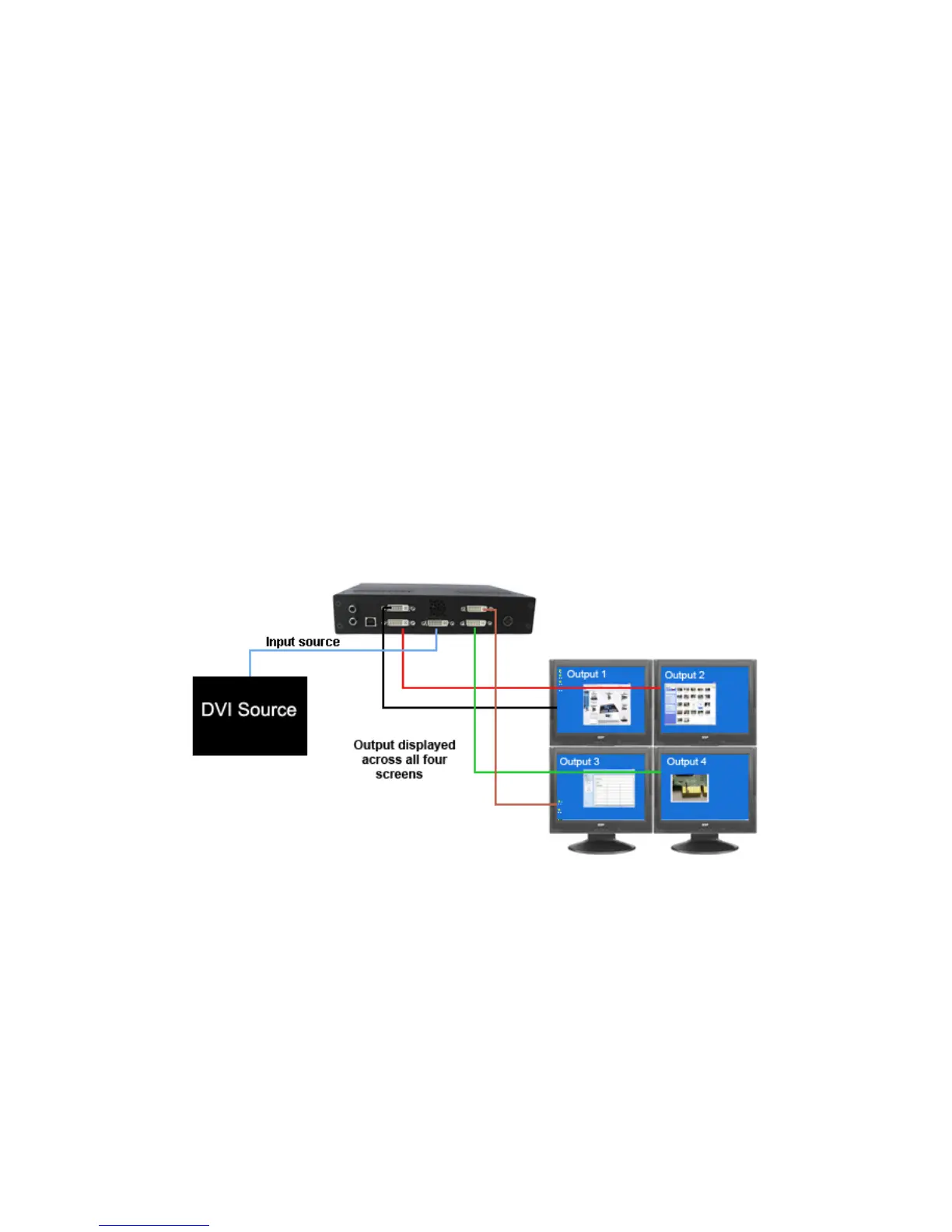

• Ensure the power supply for the DVI source is disconnected.
• Connect the cable from the DVI source to the input socket on the rear of the x4.
• Connect the four displays to the output sockets on the rear panel of the x4.
• Connect the x4-PSU to the x4 and switch on the power supply at the mains socket using the correct
international blade (see page 9).
• Power up the DVI source.
The Power LED located on the front panel will illuminate to indicate that power has successfully been
applied to the unit.
The x4 incorporates an internal processor that will continuously monitor the received DVI signal, and
whenever a valid and stable input is detected the Input LED is illuminated.
If the Input LED is not illuminated, the x4 cannot detect a valid DVI input source.
During operation, the x4 is able to adjust its internal operation to maintain the programmed output pro-
portions even when the input resolution changes.
Fig.3
13

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
