Datapath X4 User Manual

Unpacking
Your packing box should contain the following items:
• The x4 or x4-1U Display Wall Controller
• The x4-PSU Power supply unit with international blades Only the power supply unit provided
should be used (x4 only)
• 1 x Mains power cable (x4-1U only)
• USB 2.0 cable Type A to Type B.
• Datapath CD containing Conguration Application and User Manual.
Note:
Werecommendthatyoudonotdiscardthepackingboxuntilyouarecompletelysatisedwith
thex4anditisfullyinstalledandworkingcorrectly.Wealsorecommendthatyoumakenoteof
theserialnumberofthecontrollerinaprominentplacebeforeyouconnectittothe
computer.ThisshouldhastenanyqueryshouldyouneedtocontactourTechnicalSupportDe-
partment.Theserialnumberisdisplayedonthex4andtheboxlabel.

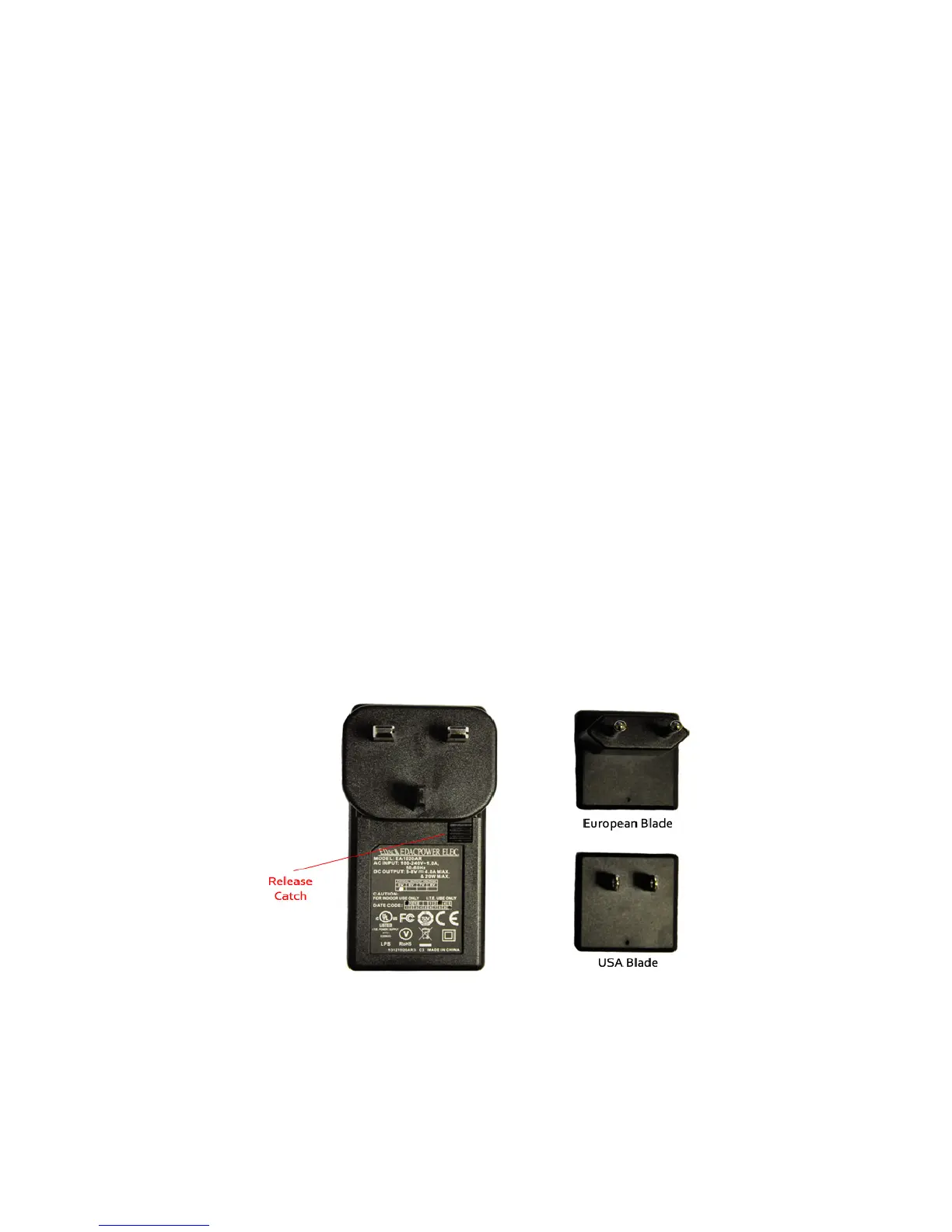

Fitting the x4 PSU Blades
Select the appropriate blade for use, place the top edge of the blade into the recess of the PSU and then
slide upwards ensuring the release catch clicks rmly into place and secures the blade inside the recess.
To remove the blade, press the release catch down fully and pull the blade away from the PSU recess.
The PSU is shipped tted with the UK blade.
9

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
