Datapath X4 User Manual

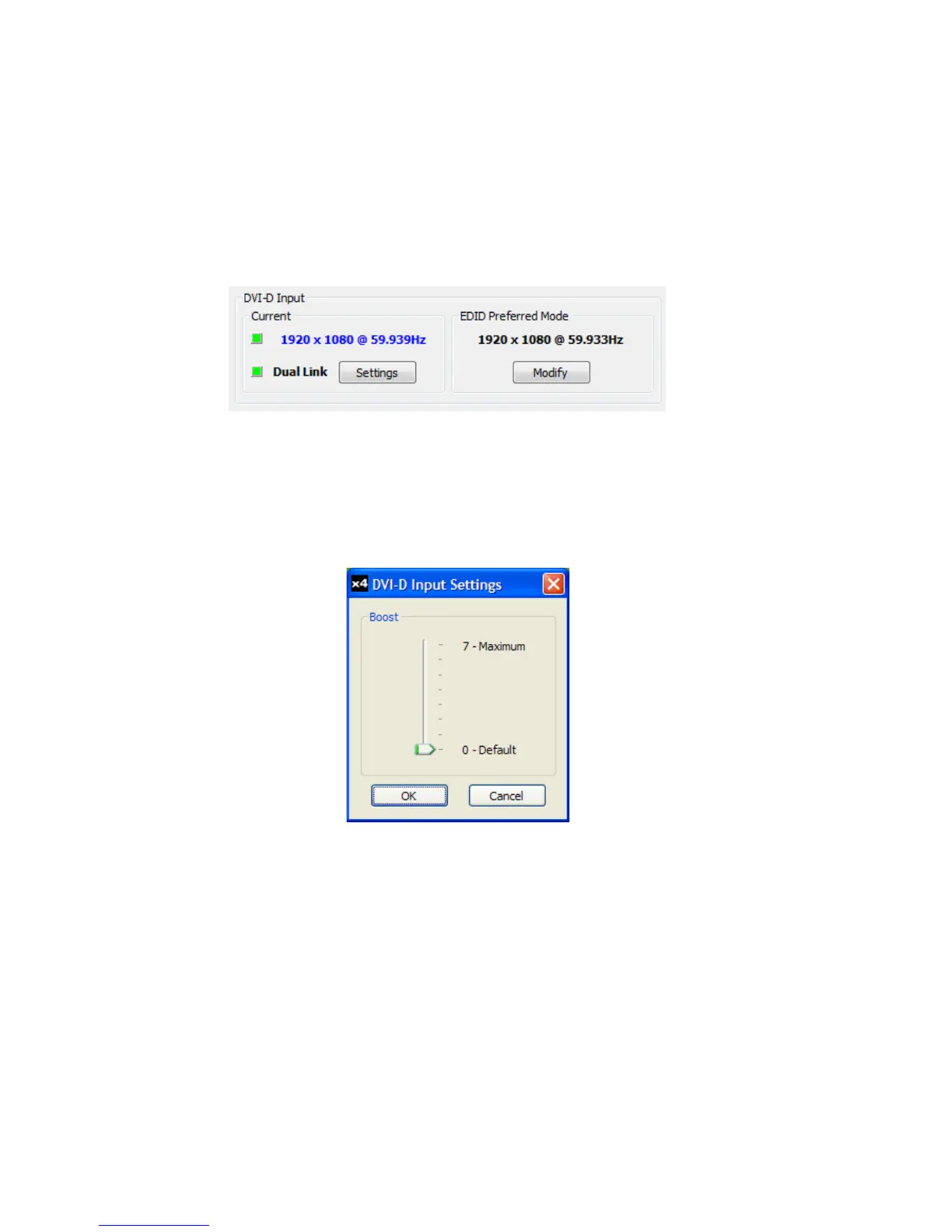

DVI-D Input
The DVI-D Input group displays the current DVI mode that is being captured (if any) and the preferred
mode that has been programmed into the x4’s EDID. Use the Modify button to update the EDID. The
small square to the left of the current input resolution indicates whether the x4 has frame-locked to the
input source.
• Green – The outputs are frame-locked to the input dot clock and vertical sync
• Grey – The outputs are not frame-locked
To change the timings of the input EDID click on the Modify button and the following dialog is
displayed. Fig 9.
19
To boost the equalization hardware click on the Settings button and the following dialog is displayed.
Fig 8.
Fig.8
Use the slider to compensate for the loss signal quality due to DVI cable lengths over 5 m. The equaliza-
tion hardware can compensate for cables up to 20m in length.
Fig.7

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
