V110120E iBoot-G2 Page 5

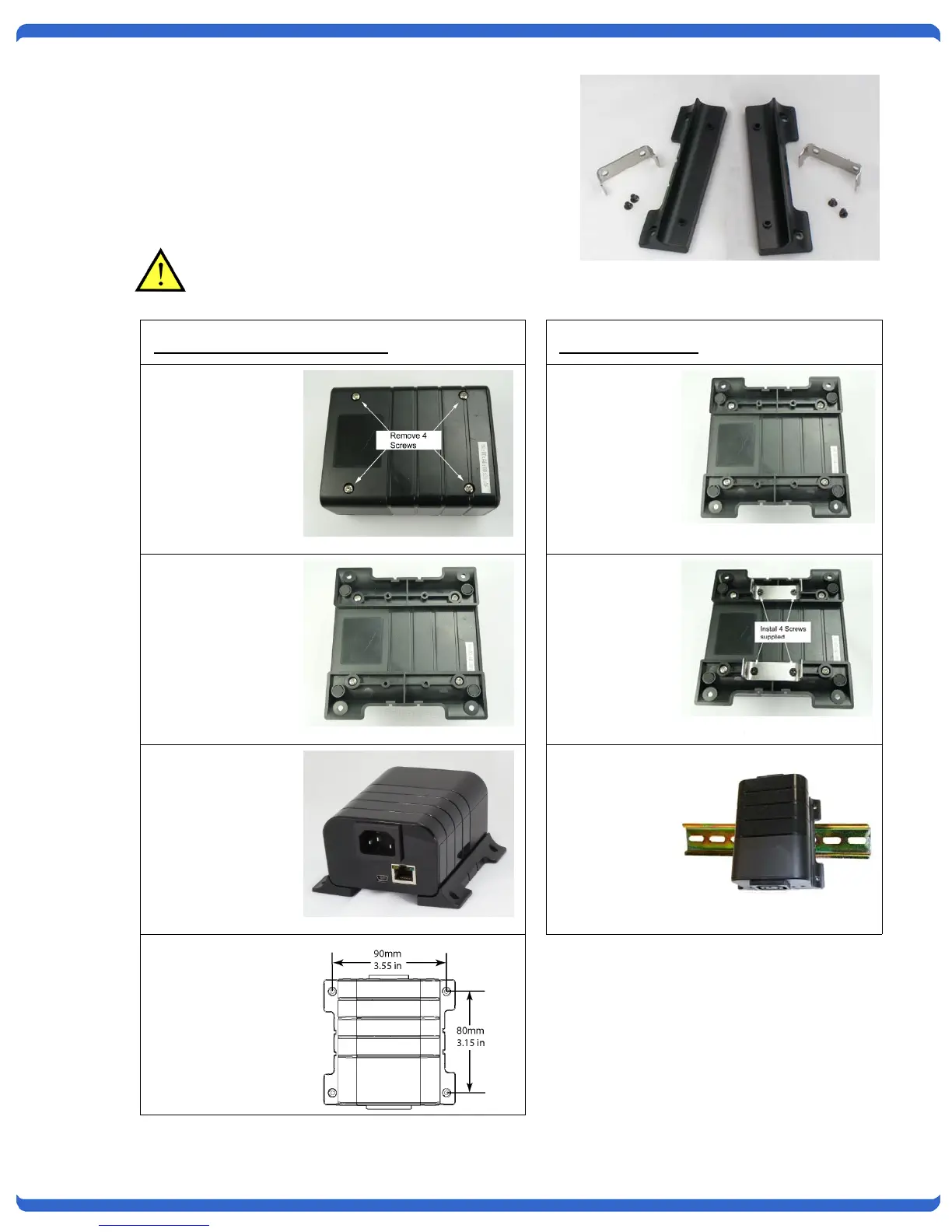

4.3. Mounting Options
iBoot-G2+ is suitable for desktop or shelf mounting. A
mounting kit for wall and DIN rail mounting is available.
Order part:
1920034 Mounting Kit for iBoot-G2+ G2 Series
Remove all cables from the unit prior to
installing or removing any mounting hardware.
Installing the Wall Mounting Kit DIN Rail Mounting
1. Remove the
four mounting
screws from
the underside
of the unit.
Do not
disassemble
the unit.
1. Install the
Wall
Mounting Kit
as shown.
2. Install the wall
mounting ears
to the unit
using the
screws
removed in
Step 2
2. Install the
DIN rail clips
using the
four screws
provided.
3. The unit is
ready for wall
mounting.
3. Ready for
DIN rail
mounting.
4. Use M3 or #4
screws (not
included) for
attachment to
suitable surface
1920033 Mounting Kit
iBoot G2 Series
