V110120E iBoot-G2 Page 4

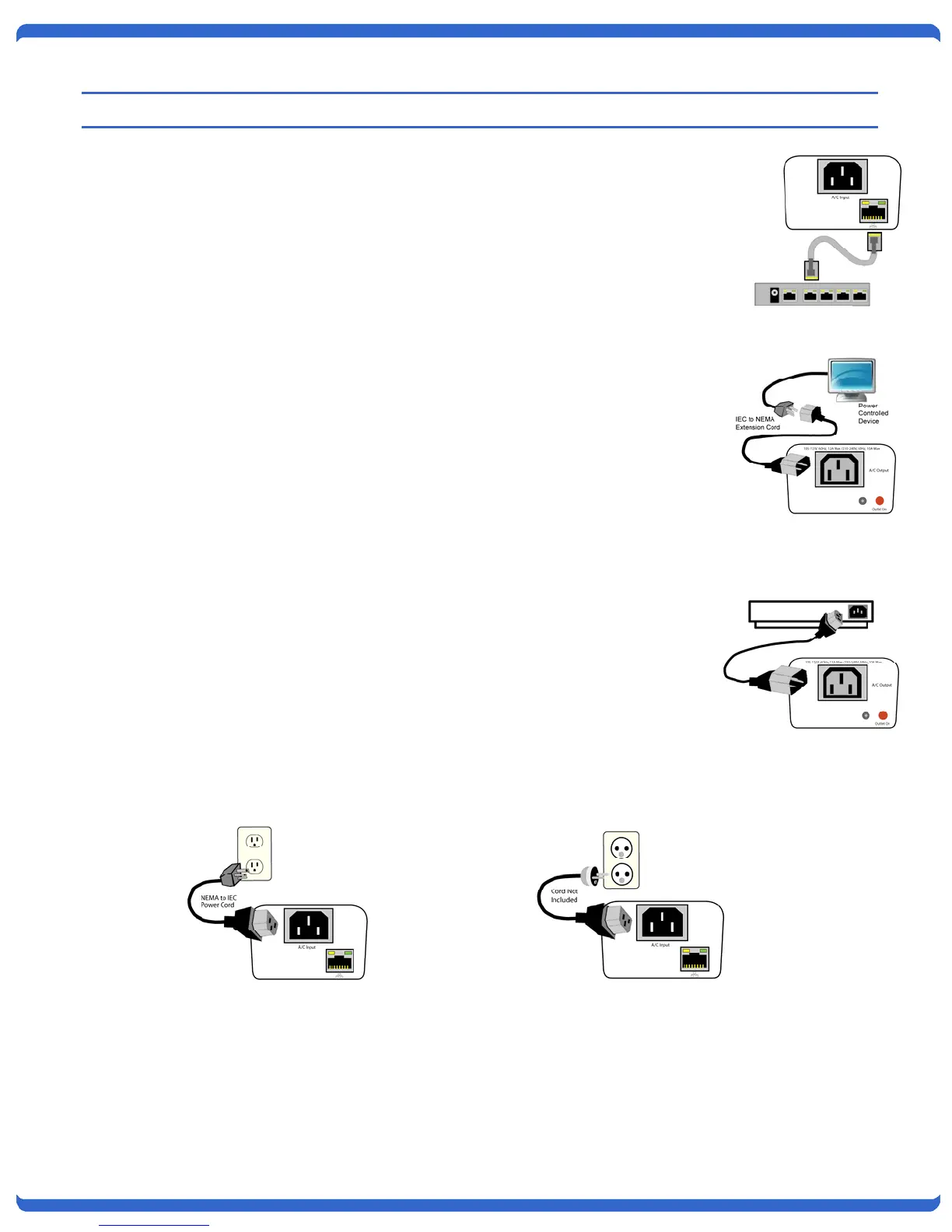

4. Hardware Installation
4.1. Ethernet Connections
iBoot-G2 supports 10/100 Ethernet using the cable supplied, or other
suitable unshielded twisted pair (Cat 5) cabling. Link (amber) and
Activity (green) LEDs on the network connector indicate when the
network connection is properly established.
4.2. AC Power Connections
Connect the device to be powered ON and OFF to the IEC receptacle
marked A/C Output. An IEC 320 to North American (NEMA 5-15)
power cord is included for connecting the iBoot-G2 outlet to the device
to be controlled.
If a cord with a different terminating receptacle is required, be sure it is
properly rated and meets all the required local electrical standards. If
the device to be powered uses an IEC320 receptacle and detachable
power cord, an IEC to IEC extension cord can be used.
The iBoot-G2 can be connected to a power strip to allow simultaneous
control of multiple devices.
Make sure that the combined load of all controlled devices does not
exceed 12 Amps for 105-125VAC or 10 Amps for 210-240VAC.
An LED Indicator next to the Switched Outlet will be On to indicate
that the power is On at that outlet. This LED will turn Off to indicate
that the power is Off to the outlet.
Connect the supplied power cord to the connector labeled A/C Input,
and the other end to your AC source. If a power cord with a different
terminating plug is required, be sure it is properly rated and meets all
the required local electrical standards.
Power Cord for North
America Included
Source Additional Outlet
Cables Locally
Connect 10/100 Ethernet
Outlet Cord for North
Source Additional
Power Cords Locally
To Next Page
