Dataprobe iBoot - AC Power Connections

iBoot Ver 1.5 Page 7

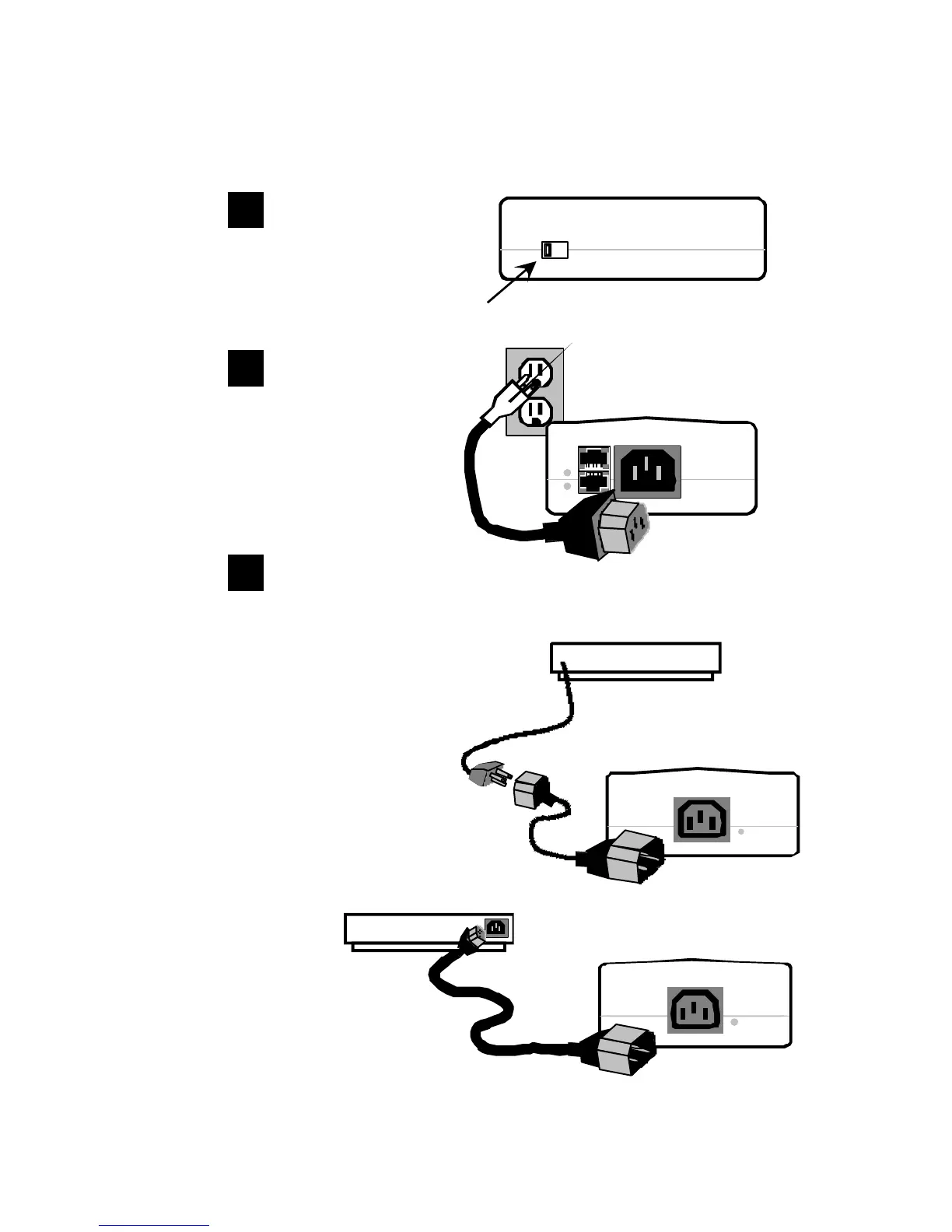

AC Power Connections
Select Input Voltage
Before Making
Any Connections
Switched
Outlet On
Uplink
Downlink
A/C Input
115V
115V for 105 to 125VAC
230V for 210 to 240VAC
Connect to Power
Source
Use Included Cord for
North America. For other
locations, use locally
approved power cord.
1
2
3
Connect Powered
Device
Use either:
IEC to NEMA Extension Cord
(supplied)
- OR -
IEC to IEC Extension Cord
(not supplied)
IEC to IEC
Extension Cord
Switched
Outlet On
IEC to NEMA
Extension Cord
Power Controlled Device
105-125 VAC 12A
210-240 VAC 10A
105-125 VAC 12A
210-240 VAC 10A
