Device Installation with Wall Mounting
The VAB-1 can also be optionally wall-mounted. To do this, follow these steps:

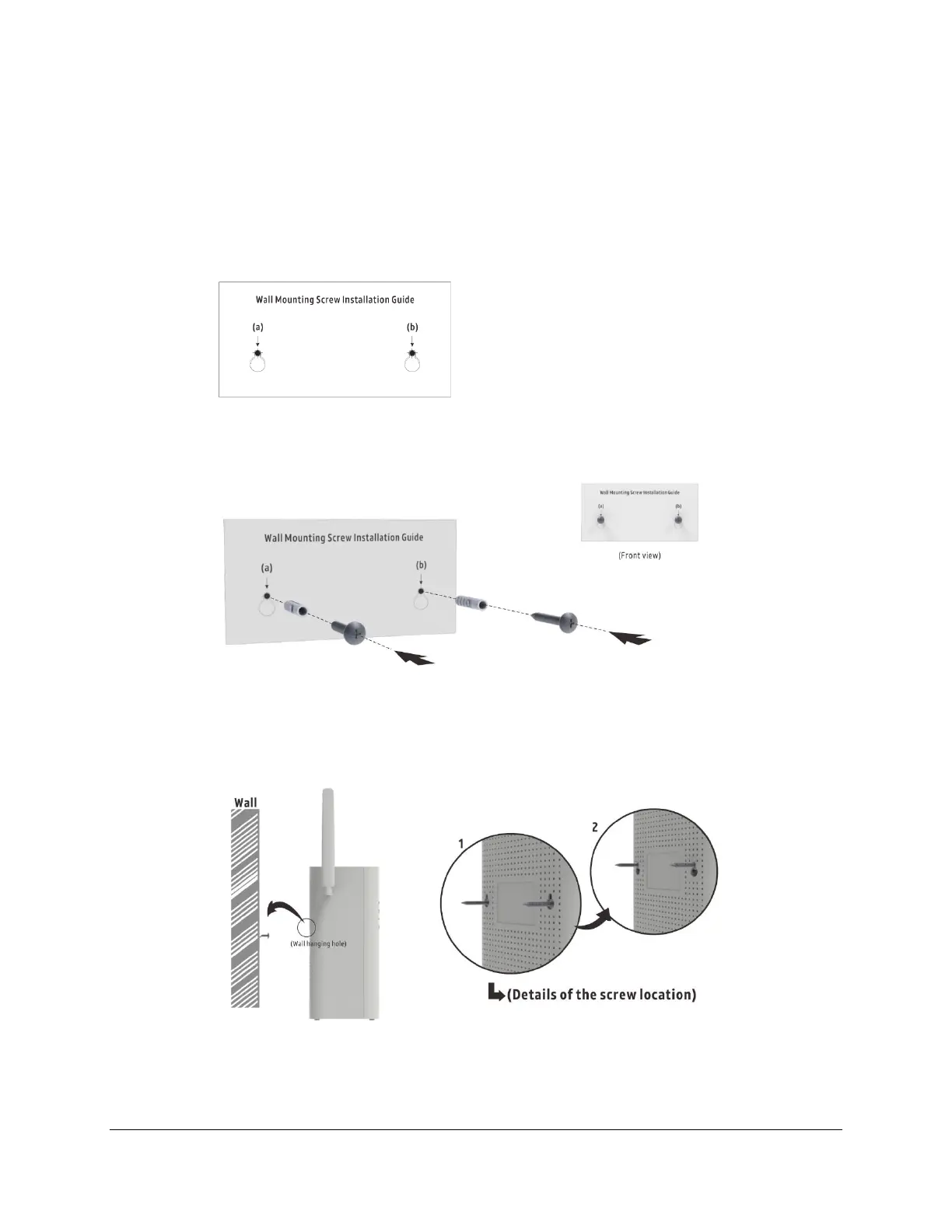

1) Temporarily affix the supplied hole alignment template to the wall. Be sure that the template is
horizontally aligned.
2) Drill pilot holes for the supplied screw anchors if necessary, and install the screws as depicted. Be sure to
insert the screw in the position shown, in the top notch of the hole.
3) Mount the VAB-1 on the screws. Ensure that the screws are left out just enough to provide clearance for
the screw to slide up into the top notch of the VAB-1 mounting holes.
