Datavan G-615S - I;O Ports Overview; Port Layouts by Model; I;O Port Descriptions

10
INTR ODUCT ION

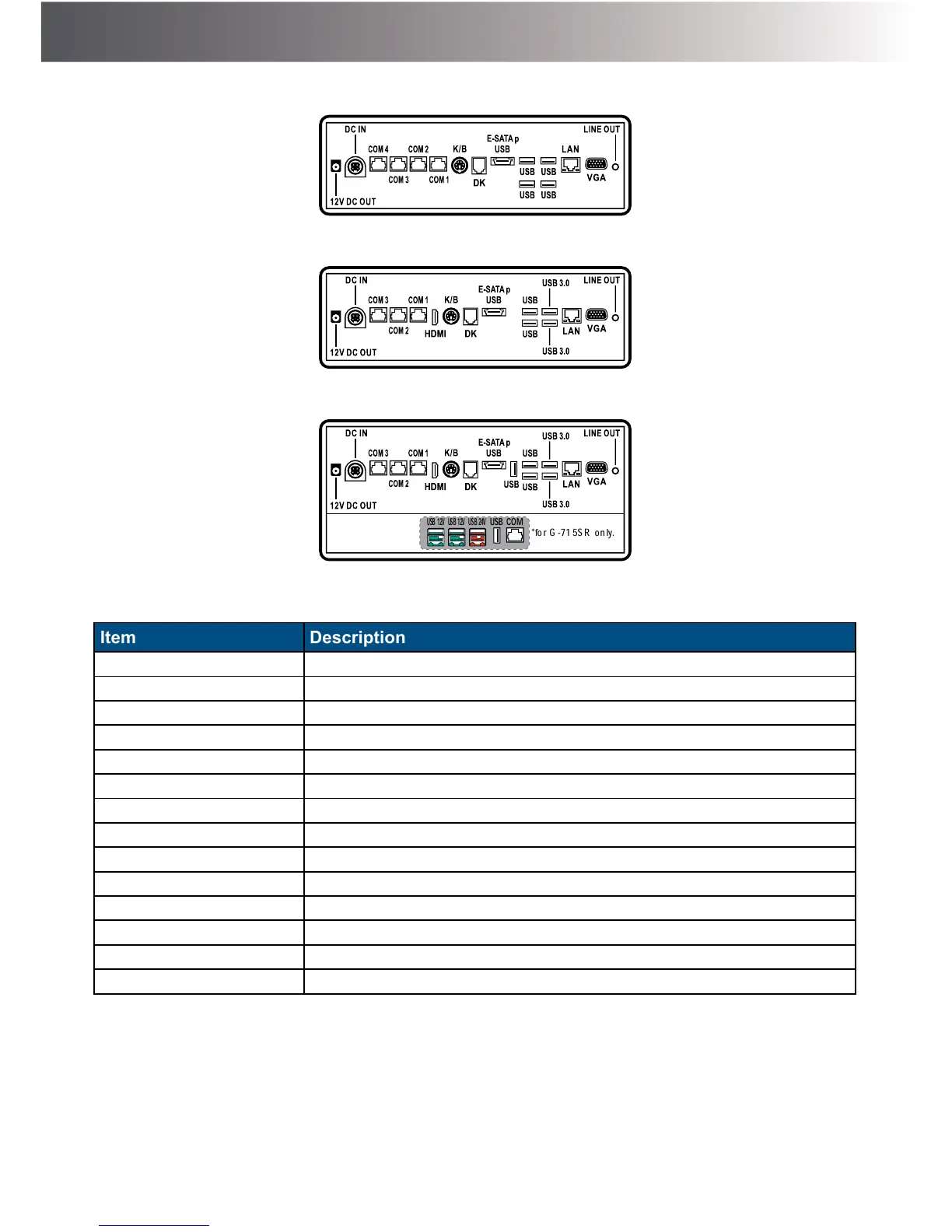

I/O Ports
USB 12V USB 24VUSB 12V USB COM
*for G-715SR only.
Item Description
'&287MDFN12V DC power output
'&,1MDFN24V DC power input
COM ports COM connectors
K/B port PS/2 keyboard connector
DK port Cash Drawer output
E-SATAp port E-SATA + USB connector
USB2.0 ports USB2.0 connectors
USB3.0 ports USB3.0 connectors
LAN port Gigabit LAN connector
VGA port VGA output connector
Line Out port Audio line output connector
HDMI port HDMI Vertical connector
USB 12V 12V Powered USB connector
USB 24V 24V Powered USB connector
G-615 / G-715
G-615S
G-715S(R)
